EN 50288-7 Satandard XLPE Insulated, LSZH Sheathed & Overall Screened Instrumentation Cables (Multitriple)

RE-2X(St)H 90??C / 300V

EN 50288-7 multitriple cables

Application

EN 50288-7 multitriple cables for transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply.
Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral.
Recommended for use as fire protection messure for people and important material assets.

Flame Performance

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454

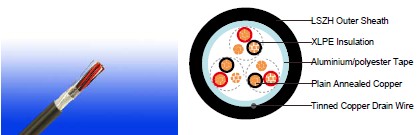

Construction

Conductor	Annealed bare copper, stranded to IEC 60228 Class 2.
Insulation	Extruded cross-linked XLPE compound as per EN 50290-2-29.
Triple	Three conductors twisted to form a triple.
Collective screen	Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
Outer sheath	LSZH compound as per EN 50290-2-27. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

Colour Code

Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
Outer Sheath: Black or blue for intrinsically safe systems

Mechanical

Temperature Range During Operation (Fixed State)	-30??C ?C +90??C
Temperature Range During Installation (Mobile State)	-5??C ?C +50??C
Minimum Bending Radius	7.5 X Overall Diameter
Sunlight Resistance	UL 1581 section 1200
Oil Resistance	ICEA S-73-532(Test temperature +60??C duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

Electrical Properties

Conductor Area Size?	mm 2?	0.5	0.75	1	1.3	1.5
Insulation thickness (nominal)?	mm?	0.55	0.55	0.55	0.6	0.6
Conductor resistance (20??C)?	??/km?	36.7	25	18.5	14.2	12.3
Insulation resistance (20??C)?	M??.km(Min.)?	5000?
Mutual Capacitance (1 kHz)?	pF/m(Max.)?	115?
Capacitance unbalance(1 kHz)?	pF/500 m (Max.)?	500?
L / R (ratio) (max.)?	??H/???	25	25	25	40	40	60
Operating voltage?	V?	500?
Test Voltage Urms?	Core to Core V?	2000?
	Core to Screen? V?	2000?

Construction Parameters

Caledonian Cable Code	RE-2X(St)H
	?No. of Core x1xCross Section	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal Overall Diameter	Approx. Weight
	No.x1xmm²	mm	mm	mm	kg/km
0.5mm2 , Multi-striple??
RE-2X(St)H 2T0.5?	2x3x0,50?	0.35	0.9	8.4	91
RE-2X(St)H 4T0.5?	4x3x0,50?	0.35	1	9.8	123
RE-2X(St)H 5T0.5?	5x3x0,50?	0.35	1	10.8	155
RE-2X(St)H 6T0.5?	6x3x0,50?	0.35	1	12.1	185
RE-2X(St)H 8T0.5?	8x3x0,50?	0.35	1.1	13.1	221
RE-2X(St)H 10T0.5?	10x3x0,50?	0.35	1.1	14.7	275
RE-2X(St)H 12T0.5?	12x3x0,50?	0.35	1.1	15.2	316
RE-2X(St)H 16T0.5?	16x3x0,50?	0.35	1.2	17.4	414
RE-2X(St)H 20T0.5?	20x3x0,50?	0.35	1.2	19.1	508
RE-2X(St)H 24T0.5?	24x3x0,50?	0.35	1.3	20.9	594
0.75mm², Multi-striple??
RE-2X(St)H 2T0.75?	2x3x0,75?	0.38	0.9	9.3	114
RE-2X(St)H 4T0.75?	4x3x0,75?	0.38	1	10.9	163
RE-2X(St)H 5T0.75?	5x3x0,75?	0.38	1	12	199
RE-2X(St)H 6T0.75?	6x3x0,75?	0.38	1.1	13.7	245
RE-2X(St)H 8T0.75?	8x3x0,75?	0.38	1.1	14.7	296
RE-2X(St)H 10T0.75?	10x3x0,75?	0.38	1.2	16.7	366
RE-2X(St)H 12T0.75?	12x3x0,75?	0.38	1.2	17.3	423
RE-2X(St)H 16T0.75?	16x3x0,75?	0.38	1.3	19.7	555
RE-2X(St)H 20T0.75?	20x3x0,75?	0.38	1.3	21.7	681
RE-2X(St)H 24T0.75?	24x3x0,75?	0.38	1.4	23.7	802
1.0mm2 , Multi-striple??
RE-2X(St)H 2T1.0?	2x3x1?	0.4	1	10.4	135
RE-2X(St)H 4T1.0?	4x3x1?	0.4	1	11.9	202
RE-2X(St)H 5T1.0?	5x3x1?	0.4	1	13.2	251
RE-2X(St)H 6T1.0?	6x3x1?	0.4	1.1	15	303
RE-2X(St)H 8T1.0?	8x3x1?	0.4	1.1	16.1	379
RE-2X(St)H 10T1.0?	10x3x1?	0.4	1.2	18.4	461
RE-2X(St)H 12T1.0?	12x3x1?	0.4	1.2	19	544
RE-2X(St)H 16T1.0?	16x3x1?	0.4	1.3	21.7	717
RE-2X(St)H 20T1.0?	20x3x1?	0.4	1.4	24.1	880
RE-2X(St)H 24T1.0?	24x3x1?	0.4	1.4	26.1	1048
1.3mm2 , Multi-striple??
RE-2X(St)H 2T1.3?	2x3x1,3?	0.45	1	11.5	175
RE-2X(St)H 4T1.3?	4x3x1,3?	0.45	1.1	13.4	258
RE-2X(St)H 5T1.3?	5x3x1,3?	0.45	1.1	14.8	318
RE-2X(St)H 6T1.3?	6x3x1,3?	0.45	1.2	16.9	387
RE-2X(St)H 8T1.3?	8x3x1,3?	0.45	1.2	18.1	474
RE-2X(St)H 10T1.3?	10x3x1,3?	0.45	1.3	20.7	589
RE-2X(St)H 12T1.3?	12x3x1,3?	0.45	1.3	21.4	695
RE-2X(St)H 16T1.3?	16x3x1,3?	0.45	1.4	24.4	918
RE-2X(St)H 20T1.3?	20x3x1,3?	0.45	1.5	27.1	1124
RE-2X(St)H 24T1.3?	24x3x1,3?	0.45	1.6	29.6	1336
1.5mm2 , Multi-striple??
RE-2X(St)H 2T1.5?	2x3x1,5?	0.45	1	11.9	191
RE-2X(St)H 4T1.5?	4x3x1,5?	0.45	1.1	14	287
RE-2X(St)H 5T1.5?	5x3x1,5?	0.45	1.1	15.4	355
RE-2X(St)H 6T1.5?	6x3x1,5?	0.45	1.2	17.6	432
RE-2X(St)H 8T1.5?	8x3x1,5?	0.45	1.3	19.1	540
RE-2X(St)H 10T1.5?	10x3x1,5?	0.45	1.3	21.6	672
RE-2X(St)H 12T1.5?	12x3x1,5?	0.45	1.4	22.5	779
RE-2X(St)H 16T1.5?	16x3x1,5?	0.45	1.5	25.7	1031
RE-2X(St)H 20T1.5?	20x3x1,5?	0.45	1.6	28.6	1265
RE-2X(St)H 24T1.5?	24x3x1,5?	0.45	1.7	31.1	1508
