EN 50288-7 Satandard XLPE Insulated, LSZH Sheathed & Overall Screened Instrumentation Cables (Multicore)

RE-2X(St)H 90??C / 500V

EN 50288-7 RE-2X(St)H cables

Application

EN 50288-7 multicore cables for transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply.
Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral.
Recommended for use as fire protection messure for people and important material assets.

Flame Performance

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454

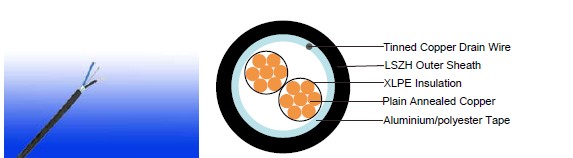

Construction

Conductor	Annealed bare copper, stranded to IEC 60228 Class 2.
Insulation	Extruded cross-linked XLPE compound as per EN 50290-2-29.
Collective screen	Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
Outer sheath	LSZH compound as per EN 50290-2-27. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

Colour Code

Insulation: Black numbered
Outer Sheath: Black, blue for intrinsically safe systems

Mechanical

Temperature Range During Operation (Fixed State)	-30??C ?C +90??C
Temperature Range During Installation (Mobile State)	-5??C ?C +50??C
Minimum Bending Radius	7.5 X Overall Diameter
Sunlight Resistance	UL 1581 section 1200
Oil Resistance	ICEA S-73-532(Test temperature +60??C duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

Electrical Properties

Conductor Area Size?	mm 2?	0.5	0.75	1	1.3	1.5	2.5
Insulation thickness (nominal)?	mm?	0.55	0.55	0.55	0.6	0.6	0.7
Conductor resistance (20??C)?	??/km?	36.7	25	18.5	14.2	12.3	7.4
Insulation resistance (20??C)?	M??.km(Min.)?	5000?
Mutual Capacitance (1 kHz)?	pF/m(Max.)?	115?
Capacitance unbalance(1 kHz)?	pF/500 m (Max.)?	500?
L / R (ratio) (max.)?	??H/???	25	25	25	40	40	60
Operating voltage?	V?	500?
Test Voltage Urms?	Core to Core V?	2000?
	Core to Screen? V?	2000?

Construction Parameters

Caledonian Cable Code	RE-2X(St)H
	?No. of Core x1xCross Section	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal Overall Diameter	Approx. Weight
	No.x1xmm²	mm	mm	mm	kg/km
0.5mm², Multicore?
RE-2X(St)H 2C0.5?	2x1x0.5?	0.55	0.9	6.2	47
RE-2X(St)H 3C0.5?	3x1x0.5?	0.55	0.9	6.5	50
RE-2X(St)H 4C0.5?	4x1x0.5?	0.55	0.9	7	60
RE-2X(St)H 5C0.5?	5x1x0.5?	0.55	0.9	7.6	71
RE-2X(St)H 8C0.5?	8x1x0.5?	0.55	1	9.1	95
RE-2X(St)H 10C0.5?	10x1x0.5?	0.55	1	10.4	127
RE-2X(St)H 12C0.5?	12x1x0.5?	0.55	1	10.7	151
RE-2X(St)H 14C0.5?	14x1x0.5?	0.55	1	11.3	162
RE-2X(St)H 16C0.5?	16x1x0.5?	0.55	1.1	11.8	180
RE-2X(St)H 20C0.5?	20x1x0.5?	0.55	1.1	13.3	222
RE-2X(St)H 24C0.5?	24x1x0.5?	0.55	1.1	14.7	274
RE-2X(St)H 27C0.5?	27x1x0.5?	0.55	1.2	15	282
RE-2X(St)H 30C0.5?	30x1x0.5?	0.55	1.2	15.7	318
RE-2X(St)H 37C0.5?	37x1x0.5?	0.55	1.2	16.9	372
RE-2X(St)H 40C0.5?	40x1x0.5?	0.55	1.2	17.6	372
0.75mm², Multicore??
RE-2X(St)H 2C0.75?	2x1x0.75?	0.55	0.9	6.5	51
RE-2X(St)H 3C0.75?	3x1x0.75?	0.55	0.9	6.9	62
RE-2X(St)H 4C0.75?	4x1x0.75?	0.55	0.9	7.4	74
RE-2X(St)H 5C0.75?	5x1x0.75?	0.55	0.9	8.1	96
RE-2X(St)H 8C0.75?	8x1x0.75?	0.55	1	9.7	126
RE-2X(St)H 10C0.75?	10x1x0.75?	0.55	1	11.1	156
RE-2X(St)H 12C0.75?	12x1x0.75?	0.55	1	11.5	183
RE-2X(St)H 14C0.75?	14x1x0.75?	0.55	1.1	12.2	200
RE-2X(St)H 16C0.75?	16x1x0.75?	0.55	1.1	12.9	224
RE-2X(St)H 20C0.75?	20x1x0.75?	0.55	1.1	14.3	284
RE-2X(St)H 24C0.75?	24x1x0.75?	0.55	1.2	16	324
RE-2X(St)H 27C0.75?	27x1x0.75?	0.55	1.2	16.3	363
RE-2X(St)H 30C0.75?	30x1x0.75?	0.55	1.2	16.9	396
RE-2X(St)H 37C0.75?	37x1x0.75?	0.55	1.2	18.2	472
RE-2X(St)H 40C0.75?	40x1x0.75?	0.55	1.3	19.1	514
1.0mm², Multicore??
RE-2X(St)H 2C1.0?	2x1x1.0?	0.55	0.9	6.9	61
RE-2X(St)H 3C1.0?	3x1x1.0?	0.55	0.9	7.3	70
RE-2X(St)H 4C1.0?	4x1x1.0?	0.55	0.9	7.9	85
RE-2X(St)H 5C1.0?	5x1x1.0?	0.55	0.9	8.6	109
RE-2X(St)H 8C1.0?	8x1x1.0?	0.55	1	10.3	157
RE-2X(St)H 10C1.0?	10x1x1.0?	0.55	1	11.9	193
RE-2X(St)H 12C1.0?	12x1x1.0?	0.55	1	12.2	214
RE-2X(St)H 14C1.0?	14x1x1.0?	0.55	1.1	13	243
RE-2X(St)H 16C1.0?	16x1x1.0?	0.55	1.1	13.7	280
RE-2X(St)H 20C1.0?	20x1x1.0?	0.55	1.1	15.2	336
RE-2X(St)H 24C1.0?	24x1x1.0?	0.55	1.2	17	414
RE-2X(St)H 27C1.0?	27x1x1.0?	0.55	1.2	17.4	443
RE-2X(St)H 30C1.0?	30x1x1.0?	0.55	1.2	18	484
RE-2X(St)H 37C1.0?	37x1x1.0?	0.55	1.2	19.6	590
RE-2X(St)H 40C1.0?	40x1x1.0?	0.55	1.3	20.4	631
1.3mm², Multicore??
RE-2X(St)H 2C1.3?	2x1x1.3?	0.6	0.9	7.4	69
RE-2X(St)H 3C1.3?	3x1x1.3?	0.6	0.9	7.9	83
RE-2X(St)H 4C1.3?	4x1x1.3?	0.6	0.9	8.5	105
RE-2X(St)H 5C1.3?	5x1x1.3?	0.6	1	9.5	135
RE-2X(St)H 8C1.3?	8x1x1.3?	0.6	1	11.2	186
RE-2X(St)H 10C1.3?	10x1x1.3?	0.6	1.1	13.2	228
RE-2X(St)H 12C1.3?	12x1x1.3?	0.6	1.1	13.6	269
RE-2X(St)H 14C1.3?	14x1x1.3?	0.6	1.1	14.3	305
RE-2X(St)H 16C1.3?	16x1x1.3?	0.6	1.1	15	351
RE-2X(St)H 20C1.3?	20x1x1.3?	0.6	1.2	16.9	423
RE-2X(St)H 24C1.3?	24x1x1.3?	0.6	1.2	18.7	507
RE-2X(St)H 27C1.3?	27x1x1.3?	0.6	1.3	19.3	558
RE-2X(St)H 30C1.3?	30x1x1.3?	0.6	1.3	20	611
RE-2X(St)H 37C1.3?	37x1x1.3?	0.6	1.3	21.6	743
RE-2X(St)H 40C1.3?	40x1x1.3?	0.6	1.4	22.7	796
1.5mm², Multicore??
RE-2X(St)H 2C1.5?	2x1x1.5?	0.6	0.9	7.7	78
RE-2X(St)H 3C1.5?	3x1x1.5?	0.6	0.9	8.1	98
RE-2X(St)H 4C1.5?	4x1x1.5?	0.6	0.9	8.8	120
RE-2X(St)H 5C1.5?	5x1x1.5?	0.6	1	9.8	153
RE-2X(St)H 8C1.5?	8x1x1.5?	0.6	1	11.6	218
RE-2X(St)H 10C1.5?	10x1x1.5?	0.6	1.1	13.7	268
RE-2X(St)H 12C1.5?	12x1x1.5?	0.6	1.1	14.1	315
RE-2X(St)H 14C1.5?	14x1x1.5?	0.6	1.1	14.8	341
RE-2X(St)H 16C1.5?	16x1x1.5?	0.6	1.1	15.6	392
RE-2X(St)H 20C1.5?	20x1x1.5?	0.6	1.2	17.6	484
RE-2X(St)H 24C1.5?	24x1x1.5?	0.6	1.3	19.6	579
RE-2X(St)H 27C1.5?	27x1x1.5?	0.6	1.3	20.1	626
RE-2X(St)H 30C1.5?	30x1x1.5?	0.6	1.3	20.8	685
RE-2X(St)H 37C1.5?	37x1x1.5?	0.6	1.4	22.6	834
RE-2X(St)H 40C1.5?	40x1x1.5?	0.6	1.4	23.6	898
2.5mm², Multicore??
RE-2X(St)H 2C2.5?	2x1x2.5?	0.7	0.9	8.9	111
RE-2X(St)H 3C2.5?	3x1x2.5?	0.7	1	9.7	132
RE-2X(St)H 4C2.5?	4x1x2.5?	0.7	1	10.5	169
RE-2X(St)H 5C2.5?	5x1x2.5?	0.7	1	11.9	209
RE-2X(St)H 8C2.5?	8x1x2.5?	0.7	1.1	13.9	321
RE-2X(St)H 10C2.5?	10x1x2.5?	0.7	1.2	16.3	386
RE-2X(St)H 12C2.5?	12x1x2.5?	0.7	1.2	16.9	447
RE-2X(St)H 14C2.5?	14x1x2.5?	0.7	1.2	17.7	509
RE-2X(St)H 16C2.5?	16x1x2.5?	0.7	1.3	18.9	585
RE-2X(St)H 20C2.5?	20x1x2.5?	0.7	1.3	21.1	712
RE-2X(St)H 24C2.5?	24x1x2.5?	0.7	1.4	23.6	855
RE-2X(St)H 27C2.5?	27x1x2.5?	0.7	1.4	24.1	956
RE-2X(St)H 30C2.5?	30x1x2.5?	0.7	1.5	25.2	1049
RE-2X(St)H 37C2.5?	37x1x2.5?	0.7	1.5	27.2	1277
RE-2X(St)H 40C2.5?	40x1x2.5?	0.7	1.6	28.5	1370
