EN 50288-7 Satandard XLPE Insulated, LSZH Sheathed, Overall Screened & SWA Armoured Instrumentation Cables (Multicore)

RE-2X(St)HSWAH 90??C / 500V

EN 50288-7 RE-2X(St)HSWAH armour cables

Application

EN 50288-7 SWA armour multicore cables for transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply.
Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral.
Recommended for use as fire protection messure for people and important material assets.

Flame Performance

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454

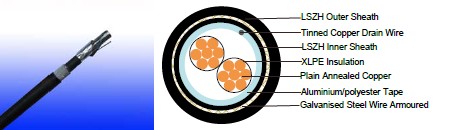

Construction

Conductor	Annealed bare copper, stranded to IEC 60228 Class 2.
Insulation	Extruded cross-linked XLPE compound as per EN 50290-2-29.
Collective screen	Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
Inner sheath	LSZH compound as per EN 50290-2-27.
Armour	Galvenized round steel wire.
Outer sheath	LSZH compound as per EN 50290-2-27. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

Colour Code

Insulation: Black numbered
Outer Sheath: Black, blue for intrinsically safe systems

Mechanical

Temperature Range During Operation (Fixed State)	-30??C ?C +90??C
Temperature Range During Installation (Mobile State)	-5??C ?C +50??C
Minimum Bending Radius	7.5 X Overall Diameter
Sunlight Resistance	UL 1581 section 1200
Oil Resistance	ICEA S-73-532(Test temperature +60??C duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

Electrical Properties

Conductor Area Size?	mm 2?	0.5	0.75	1	1.3	1.5	2.5
Insulation thickness (nominal)?	mm?	0.55	0.55	0.55	0.6	0.6	0.7
Conductor resistance (20??C)?	??/km?	36.7	25	18.5	14.2	12.3	7.4
Insulation resistance (20??C)?	M??.km(Min.)?	5000?
Mutual Capacitance (1 kHz)?	pF/m(Max.)?	115?
Capacitance unbalance(1 kHz)?	pF/500 m (Max.)?	500?
L / R (ratio) (max.)?	??H/???	25	25	25	40	40	40
Operating voltage?	V?	500?
Test Voltage Urms?	Core to Core V?	2000?
	Core to Screen? V?	2000?

Construction Parameters

Caledonian Cable Code	RE-2X(St)H
	?No. of Core x1xCross Section	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Nominal Diameter Over Inner Sheath	Nominal Armour Wire Diamete	Nominal Outer Sheath Thickness	Nominal Overall Diameter	Approx. Weight
	No.x1xmm²	mm	mm	mm	mm	mm	mm	kg/km
0.5mm²,Multicore??
RE-2X(St)HSWAH 2C0.5?	2x1x0.5?	0.55	0.9	6.2	0.9	1.3	10.6	210
RE-2X(St)HSWAH 3C0.5?	3x1x0.5?	0.55	0.9	6.5	0.9	1.3	10.9	230
RE-2X(St)HSWAH 4C0.5?	4x1x0.5?	0.55	0.9	7	0.9	1.3	11.4	253
RE-2X(St)HSWAH 5C0.5?	5x1x0.5?	0.55	0.9	7.6	0.9	1.3	12	283
RE-2X(St)HSWAH 8C0.5?	8x1x0.5?	0.55	1	9.1	0.9	1.4	13.7	344
RE-2X(St)HSWAH 10C0.5?	10x1x0.5?	0.55	1	10.4	0.9	1.4	15	399
RE-2X(St)HSWAH 12C0.5?	12x1x0.5?	0.55	1	10.7	0.9	1.4	15.3	442
RE-2X(St)HSWAH 14C0.5?	14x1x0.5?	0.55	1	11.3	0.9	1.4	15.9	474
RE-2X(St)HSWAH 16C0.5?	16x1x0.5?	0.55	1.1	11.8	0.9	1.4	16.4	505
RE-2X(St)HSWAH 20C0.5?	20x1x0.5?	0.55	1.1	13.3	0.9	1.5	18.1	569
RE-2X(St)HSWAH 24C0.5?	24x1x0.5?	0.55	1.1	14.7	0.9	1.5	19.5	642
RE-2X(St)HSWAH 27C0.5?	27x1x0.5?	0.55	1.2	15	0.9	1.5	19.8	808
RE-2X(St)HSWAH 30C0.5?	30x1x0.5?	0.55	1.2	15.7	0.9	1.5	20.5	848
RE-2X(St)HSWAH 37C0.5?	37x1x0.5?	0.55	1.2	16.9	0.9	1.6	21.9	963
RE-2X(St)HSWAH 40C0.5?	40x1x0.5?	0.55	1.2	17.6	1.25	1.6	23.3	1014
0.75mm²,Multicore??
RE-2X(St)HSWAH 2C0.75?	2x1x0.75?	0.55	0.9	6.5	0.9	1.3	10.9	230
RE-2X(St)HSWAH 3C0.75?	3x1x0.75?	0.55	0.9	6.9	0.9	1.3	11.3	247
RE-2X(St)HSWAH 4C0.75?	4x1x0.75?	0.55	0.9	7.4	0.9	1.3	11.8	278
RE-2X(St)HSWAH 5C0.75?	5x1x0.75?	0.55	0.9	8.1	0.9	1.4	12.7	322
RE-2X(St)HSWAH 8C0.75?	8x1x0.75?	0.55	1	9.7	0.9	1.4	14.3	383
RE-2X(St)HSWAH 10C0.75?	10x1x0.75?	0.55	1	11.1	0.9	1.4	15.7	461
RE-2X(St)HSWAH 12C0.75?	12x1x0.75?	0.55	1	11.5	0.9	1.4	16.1	477
RE-2X(St)HSWAH 14C0.75?	14x1x0.75?	0.55	1.1	12.2	0.9	1.5	17	527
RE-2X(St)HSWAH 16C0.75?	16x1x0.75?	0.55	1.1	12.9	0.9	1.5	17.7	572
RE-2X(St)HSWAH 20C0.75?	20x1x0.75?	0.55	1.1	14.3	0.9	1.5	19.1	669
RE-2X(St)HSWAH 24C0.75?	24x1x0.75?	0.55	1.2	16	0.9	1.5	20.8	877
RE-2X(St)HSWAH 27C0.75?	27x1x0.75?	0.55	1.2	16.3	0.9	1.6	21.3	929
RE-2X(St)HSWAH 30C0.75?	30x1x0.75?	0.55	1.2	16.9	0.9	1.6	21.9	986
RE-2X(St)HSWAH 37C0.75?	37x1x0.75?	0.55	1.2	18.2	1.25	1.6	23.9	1102
RE-2X(St)HSWAH 40C0.75?	40x1x0.75?	0.55	1.3	19.1	1.25	1.6	24.8	1181
1.0mm², Multicore??
RE-2X(St)HSWAH 2C1.0?	2x1x1.0?	0.55	0.9	6.9	0.9	1.3	11.3	247
RE-2X(St)HSWAH 3C1.0?	3x1x1.0?	0.55	0.9	7.3	0.9	1.3	11.7	270
RE-2X(St)HSWAH 4C1.0?	4x1x1.0?	0.55	0.9	7.9	0.9	1.4	12.5	299
RE-2X(St)HSWAH 5C1.0?	5x1x1.0?	0.55	0.9	8.6	0.9	1.4	13.2	342
RE-2X(St)HSWAH 8C1.0?	8x1x1.0?	0.55	1	10.3	0.9	1.4	14.9	424
RE-2X(St)HSWAH 10C1.0?	10x1x1.0?	0.55	1	11.9	0.9	1.4	16.5	514
RE-2X(St)HSWAH 12C1.0?	12x1x1.0?	0.55	1	12.2	0.9	1.5	17	548
RE-2X(St)HSWAH 14C1.0?	14x1x1.0?	0.55	1.1	13	0.9	1.5	17.8	590
RE-2X(St)HSWAH 16C1.0?	16x1x1.0?	0.55	1.1	13.7	0.9	1.5	18.5	649
RE-2X(St)HSWAH 20C1.0?	20x1x1.0?	0.55	1.1	15.2	0.9	1.5	20	864
RE-2X(St)HSWAH 24C1.0?	24x1x1.0?	0.55	1.2	17	0.9	1.6	22	1005
RE-2X(St)HSWAH 27C1.0?	27x1x1.0?	0.55	1.2	17.4	1.25	1.6	23.1	1058
RE-2X(St)HSWAH 30C1.0?	30x1x1.0?	0.55	1.2	18	1.25	1.6	23.7	1113
RE-2X(St)HSWAH 37C1.0?	37x1x1.0?	0.55	1.2	19.6	1.25	1.6	25.3	1271
RE-2X(St)HSWAH 40C1.0?	40x1x1.0?	0.55	1.3	20.4	1.25	1.7	26.3	1351
1.3mm², Multicore??
RE-2X(St)HSWAH 2C1.3?	2x1x1.3?	0.6	0.9	7.4	0.9	1.3	11.8	275
RE-2X(St)HSWAH 3C1.3?	3x1x1.3?	0.6	0.9	7.9	0.9	1.3	12.3	???
RE-2X(St)HSWAH 4C1.3?	4x1x1.3?	0.6	0.9	8.5	0.9	1.4	13.1	340
RE-2X(St)HSWAH 5C1.3?	5x1x1.3?	0.6	1	9.5	0.9	1.4	14.1	383
RE-2X(St)HSWAH 8C1.3?	8x1x1.3?	0.6	1	11.2	0.9	1.4	15.8	483
RE-2X(St)HSWAH 10C1.3?	10x1x1.3?	0.6	1.1	13.2	0.9	1.5	18	578
RE-2X(St)HSWAH 12C1.3?	12x1x1.3?	0.6	1.1	13.6	0.9	1.5	18.4	633
RE-2X(St)HSWAH 14C1.3?	14x1x1.3?	0.6	1.1	14.3	0.9	1.5	19.1	698
RE-2X(St)HSWAH 16C1.3?	16x1x1.3?	0.6	1.1	15	0.9	1.5	19.8	870
RE-2X(St)HSWAH 20C1.3?	20x1x1.3?	0.6	1.2	16.9	0.9	1.6	21.9	1014
RE-2X(St)HSWAH 24C1.3?	24x1x1.3?	0.6	1.2	18.7	1.25	1.6	24.4	1163
RE-2X(St)HSWAH 27C1.3?	27x1x1.3?	0.6	1.3	19.3	1.25	1.6	25	1227
RE-2X(St)HSWAH 30C1.3?	30x1x1.3?	0.6	1.3	20	1.25	1.6	25.7	1305
RE-2X(St)HSWAH 37C1.3?	37x1x1.3?	0.6	1.3	21.6	1.25	1.7	27.5	1504
RE-2X(St)HSWAH 40C1.3?	40x1x1.3?	0.6	1.4	22.7	1.25	1.7	28.6	1584
1.5mm², Multicore??
RE-2X(St)HSWAH 2C1.5?	2x1x1.5?	0.6	0.9	7.7	0.9	1.3	12.1	279
RE-2X(St)HSWAH 3C1.5?	3x1x1.5?	0.6	0.9	8.1	0.9	1.4	12.7	322
RE-2X(St)HSWAH 4C1.5?	4x1x1.5?	0.6	0.9	8.8	0.9	1.4	13.4	347
RE-2X(St)HSWAH 5C1.5?	5x1x1.5?	0.6	1	9.8	0.9	1.4	14.4	392
RE-2X(St)HSWAH 8C1.5?	8x1x1.5?	0.6	1	11.6	0.9	1.4	16.2	518
RE-2X(St)HSWAH 10C1.5?	10x1x1.5?	0.6	1.1	13.7	0.9	1.5	18.5	614
RE-2X(St)HSWAH 12C1.5?	12x1x1.5?	0.6	1.1	14.1	0.9	1.5	18.9	670
RE-2X(St)HSWAH 14C1.5?	14x1x1.5?	0.6	1.1	14.8	0.9	1.5	19.6	742
RE-2X(St)HSWAH 16C1.5?	16x1x1.5?	0.6	1.1	15.6	0.9	1.5	20.4	925
RE-2X(St)HSWAH 20C1.5?	20x1x1.5?	0.6	1.2	17.6	1.25	1.6	23.3	1062
RE-2X(St)HSWAH 24C1.5?	24x1x1.5?	0.6	1.3	19.6	1.25	1.6	25.3	1218
RE-2X(St)HSWAH 27C1.5?	27x1x1.5?	0.6	1.3	20.1	1.25	1.6	25.8	1289
RE-2X(St)HSWAH 30C1.5?	30x1x1.5?	0.6	1.3	20.8	1.25	1.7	26.7	1418
RE-2X(St)HSWAH 37C1.5?	37x1x1.5?	0.6	1.4	22.6	1.25	1.7	28.5	1586
RE-2X(St)HSWAH 40C1.5?	40x1x1.5?	0.6	1.4	23.6	1.25	1.7	29.5	1687
2.5mm², Multicore??
RE-2X(St)HSWAH 2C2.5?	2x1x2.5?	0.7	0.9	8.9	0.9	1.4	13.5	364
RE-2X(St)HSWAH 3C2.5?	3x1x2.5?	0.7	1	9.7	0.9	1.4	14.3	389
RE-2X(St)HSWAH 4C2.5?	4x1x2.5?	0.7	1	10.5	0.9	1.4	15.1	430
RE-2X(St)HSWAH 5C2.5?	5x1x2.5?	0.7	1	11.9	0.9	1.4	16.5	547
RE-2X(St)HSWAH 8C2.5?	8x1x2.5?	0.7	1.1	13.9	0.9	1.5	18.7	684
RE-2X(St)HSWAH 10C2.5?	10x1x2.5?	0.7	1.2	16.3	0.9	1.6	21.3	952
RE-2X(St)HSWAH 12C2.5?	12x1x2.5?	0.7	1.2	16.9	0.9	1.6	21.9	1012
RE-2X(St)HSWAH 14C2.5?	14x1x2.5?	0.7	1.2	17.7	1.25	1.6	23.4	1126
RE-2X(St)HSWAH 16C2.5?	16x1x2.5?	0.7	1.3	18.9	1.25	1.6	24.6	1252
RE-2X(St)HSWAH 20C2.5?	20x1x2.5?	0.7	1.3	21.1	1.25	1.7	27	1456
RE-2X(St)HSWAH 24C2.5?	24x1x2.5?	0.7	1.4	23.6	1.25	1.7	29.5	1644
RE-2X(St)HSWAH 27C2.5?	27x1x2.5?	0.7	1.4	24.1	1.25	1.8	30.2	1811
RE-2X(St)HSWAH 30C2.5?	30x1x2.5?	0.7	1.5	25.2	1.25	1.8	31.3	2154
RE-2X(St)HSWAH 37C2.5?	37x1x2.5?	0.7	1.5	27.2	1.25	1.8	33.3	2477
RE-2X(St)HSWAH 40C2.5?	40x1x2.5?	0.7	1.6	28.5	1.25	1.9	34.8	2614
