MRE-2XH PiMF/TiMF 150/250V XLPE绝缘，LSOH（SHF1）护套 单独屏蔽阻燃仪表&控制缆（多对/多三线组）
应用
MRE-2XH PiMF/TiMF 150/250V XLPE绝缘，LSOH（SHF1）护套 单独屏蔽阻燃仪表&控制缆（多对/多三线组）适用于船上不受机械损害的任意位置的固定安装，符合IEC 60092-352标准。该电缆阻燃、低压、无卤，适合客船及其他商业船只的安装。
标准
- IEC 60092-350/351/376/359
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

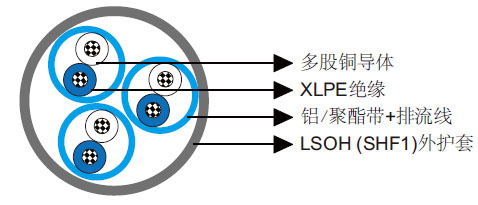

结构
 |
| 导体 | Class 2多股铜导体 |
|---|---|
| 绝缘 | XLPE |
| 成缆单元 | 对/三线组。 |
| 单独屏蔽 | 铝/聚酯带。 |
| 排流线 | 镀锡铜丝。 |
| 外护套 | LSOH（SHF1）。SHF2可选。 |
线芯识别
对：白/蓝色印有对数及芯数。
三线组：白/蓝/红色印有三线组数。
机械和热性能
| 固定安装弯曲半径 | 4×OD |
|---|---|
| 温度范围 | -30℃ ~ +80℃ |
尺寸和重量
| 订货代码 | 结构单元数×每单元芯数×截面积（mm²） | 标称绝缘厚度 mm | 标称护套厚度 mm | 标称外径 mm | 标称重量 kg/km |
|---|---|---|---|---|---|
| MRE-2XH PiMF-1P0.75 | 1×2×0.75 | 0.5 | 1.0 | 7.1 | 70 |
| MRE-2XH PiMF-2P0.75 | 2×2×0.75 | 0.5 | 1.1 | 10.8 | 140 |
| MRE-2XH PiMF-3P0.75 | 3×2×0.75 | 0.5 | 1.2 | 11.8 | 180 |
| MRE-2XH PiMF-4P0.75 | 4×2×0.75 | 0.5 | 1.2 | 12.5 | 210 |
| MRE-2XH PiMF-5P0.75 | 5×2×0.75 | 0.5 | 1.3 | 14.2 | 260 |
| MRE-2XH PiMF-6P0.75 | 6×2×0.75 | 0.5 | 1.3 | 15.2 | 300 |
| MRE-2XH PiMF-7P0.75 | 7×2×0.75 | 0.5 | 1.3 | 15.2 | 330 |
| MRE-2XH PiMF-8P0.75 | 8×2×0.75 | 0.5 | 1.3 | 16.1 | 370 |
| MRE-2XH PiMF-10P0.75 | 10×2×0.75 | 0.5 | 1.4 | 18.3 | 460 |
| MRE-2XH PiMF-12P0.75 | 12×2×0.75 | 0.5 | 1.4 | 19.0 | 520 |
| MRE-2XH PiMF-14P0.75 | 14×2×0.75 | 0.5 | 1.5 | 20.0 | 600 |
| MRE-2XH PiMF-16P0.75 | 16×2×0.75 | 0.5 | 1.5 | 21.4 | 670 |
| MRE-2XH PiMF-19P0.75 | 19×2×0.75 | 0.5 | 1.6 | 23.1 | 790 |
| MRE-2XH PiMF-20P0.75 | 20×2×0.75 | 0.5 | 1.6 | 23.1 | 810 |
| MRE-2XH PiMF-24P0.75 | 24×2×0.75 | 0.5 | 1.7 | 26.5 | 1000 |
| MRE-2XH PiMF-30P0.75 | 30×2×0.75 | 0.5 | 1.8 | 28.9 | 1220 |
| MRE-2XH PiMF-37P0.75 | 37×2×0.75 | 0.5 | 1.9 | 31.1 | 1470 |
| MRE-2XH PiMF-1P1.0 | 1×2×1.0 | 0.5 | 1.0 | 7.5 | 80 |
| MRE-2XH PiMF-2P1.0 | 2×2×1.0 | 0.5 | 1.2 | 11.7 | 170 |
| MRE-2XH PiMF-3P1.0 | 3×2×1.0 | 0.5 | 1.2 | 12.5 | 210 |
| MRE-2XH PiMF-4P1.0 | 4×2×1.0 | 0.5 | 1.2 | 13.3 | 250 |
| MRE-2XH PiMF-5P1.0 | 5×2×1.0 | 0.5 | 1.3 | 15.1 | 310 |
| MRE-2XH PiMF-6P1.0 | 6×2×1.0 | 0.5 | 1.3 | 16.2 | 360 |
| MRE-2XH PiMF-7P1.0 | 7×2×1.0 | 0.5 | 1.3 | 16.2 | 400 |
| MRE-2XH PiMF-8P1.0 | 8×2×1.0 | 0.5 | 1.4 | 17.4 | 450 |
| MRE-2XH PiMF-10P1.0 | 10×2×1.0 | 0.5 | 1.5 | 19.7 | 570 |
| MRE-2XH PiMF-12P1.0 | 12×2×1.0 | 0.5 | 1.5 | 20.5 | 650 |
| MRE-2XH PiMF-14P1.0 | 14×2×1.0 | 0.5 | 1.5 | 21.3 | 730 |
| MRE-2XH PiMF-16P1.0 | 16×2×1.0 | 0.5 | 1.6 | 23.1 | 840 |
| MRE-2XH PiMF-19P1.0 | 19×2×1.0 | 0.5 | 1.7 | 24.9 | 980 |
| MRE-2XH PiMF-20P1.0 | 20×2×1.0 | 0.5 | 1.7 | 24.9 | 1020 |
| MRE-2XH PiMF-24P1.0 | 24×2×1.0 | 0.5 | 1.8 | 28.5 | 1250 |
| MRE-2XH PiMF-30P1.0 | 30×2×1.0 | 0.5 | 1.9 | 31.1 | 1520 |
| MRE-2XH PiMF-37P1.0 | 37×2×1.0 | 0.5 | 2.0 | 33.5 | 1830 |
| MRE-2XH TiMF-1T0.75 | 1×3×0.75 | 0.5 | 1.0 | 7.5 | 80 |
| MRE-2XH TiMF-2T0.75 | 2×3×0.75 | 0.5 | 1.2 | 12.0 | 170 |
| MRE-2XH TiMF-3T0.75 | 3×3×0.75 | 0.5 | 1.2 | 12.7 | 210 |
| MRE-2XH TiMF-4T0.75 | 4×3×0.75 | 0.5 | 1.3 | 14.1 | 270 |
| MRE-2XH TiMF-5T0.75 | 5×3×0.75 | 0.5 | 1.3 | 15.6 | 330 |
| MRE-2XH TiMF-6T0.75 | 6×3×0.75 | 0.5 | 1.4 | 17.7 | 400 |
| MRE-2XH TiMF-7T0.75 | 7×3×0.75 | 0.5 | 1.4 | 17.7 | 430 |
| MRE-2XH TiMF-8T0.75 | 8×3×0.75 | 0.5 | 1.4 | 19.0 | 490 |
| MRE-2XH TiMF-10T0.75 | 10×3×0.75 | 0.5 | 1.5 | 21.6 | 620 |
| MRE-2XH TiMF-12T0.75 | 12×3×0.75 | 0.5 | 1.6 | 23.0 | 720 |
| MRE-2XH TiMF-14T0.75 | 14×3×0.75 | 0.5 | 1.6 | 24.0 | 810 |
| MRE-2XH TiMF-16T0.75 | 16×3×0.75 | 0.5 | 1.7 | 25.7 | 920 |
| MRE-2XH TiMF-19T0.75 | 19×3×0.75 | 0.5 | 1.8 | 27.8 | 1090 |
| MRE-2XH TiMF-20T0.75 | 20×3×0.75 | 0.5 | 1.8 | 28.3 | 1130 |
| MRE-2XH TiMF-24T0.75 | 24×3×0.75 | 0.5 | 1.9 | 30.9 | 1350 |
| MRE-2XH TiMF-30T0.75 | 30×3×0.75 | 0.5 | 2.0 | 34.3 | 1660 |
| MRE-2XH TiMF-32T0.75 | 32×3×0.75 | 0.5 | 2.1 | 35.7 | 1790 |
| MRE-2XH TiMF-1T1.0 | 1×3×1.0 | 0.5 | 1.0 | 7.9 | 100 |
| MRE-2XH TiMF-2T1.0 | 2×3×1.0 | 0.5 | 1.2 | 12.7 | 200 |
| MRE-2XH TiMF-3T1.0 | 3×3×1.0 | 0.5 | 1.2 | 13.5 | 260 |
| MRE-2XH TiMF-4T1.0 | 4×3×1.0 | 0.5 | 1.3 | 15.0 | 330 |
| MRE-2XH TiMF-5T1.0 | 5×3×1.0 | 0.5 | 1.4 | 16.8 | 400 |
| MRE-2XH TiMF-6T1.0 | 6×3×1.0 | 0.5 | 1.4 | 18.9 | 490 |
| MRE-2XH TiMF-7T1.0 | 7×3×1.0 | 0.5 | 1.4 | 18.9 | 530 |
| MRE-2XH TiMF-8T1.0 | 8×3×1.0 | 0.5 | 1.5 | 20.5 | 610 |
| MRE-2XH TiMF-10T1.0 | 10×3×1.0 | 0.5 | 1.6 | 23.3 | 760 |
| MRE-2XH TiMF-12T1.0 | 12×3×1.0 | 0.5 | 1.6 | 24.6 | 880 |
| MRE-2XH TiMF-14T1.0 | 14×3×1.0 | 0.5 | 1.7 | 25.9 | 1010 |
| MRE-2XH TiMF-16T1.0 | 16×3×1.0 | 0.5 | 1.8 | 27.7 | 1150 |
| MRE-2XH TiMF-19T1.0 | 19×3×1.0 | 0.5 | 1.8 | 29.8 | 1340 |
| MRE-2XH TiMF-20T1.0 | 20×3×1.0 | 0.5 | 1.9 | 30.5 | 1410 |
| MRE-2XH TiMF-24T1.0 | 24×3×1.0 | 0.5 | 2.0 | 33.3 | 1680 |
| MRE-2XH TiMF-30T1.0 | 30×3×1.0 | 0.5 | 2.1 | 37.0 | 2070 |
| MRE-2XH TiMF-32T1.0 | 32×3×1.0 | 0.5 | 2.2 | 38.5 | 2220 |
