MRE-2XH 150/250V XLPE Insulated, LSOH (SHF1) Sheathed Flame Retardant Instrumentation & Control Cables (Multicore)
Applications
- IEC 60092 MRE-2XH 150/250V XLPE Insulated, LSOH (SHF1) Sheathed Flame Retardant Instrumentation & Control Cables (Multicore) are used on board of ships at all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
- IEC 60092-350/351/376/359
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

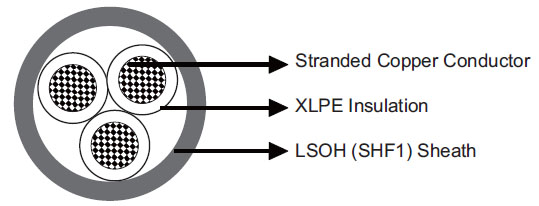

Construction
| Conductors |
Class 2 stranded copper conductor. |
| Insulation |
XLPE. |
| Outer Sheath |
LSOH (SHF1).SHF2 can be offered upon request. |
Core Identification
White with printed number.
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations |
4??OD |
| Temperature Range |
-30?? ~ +80?? |
Dimensions and Weight
| Part No. |
Construction No. of cores??Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
mm2 |
mm |
mm |
mm |
kg/km |
| MRE-2XH-2C0.75 |
2??0.75 |
0.5 |
1.1 |
6.2 |
50 |
| MRE-2XH-3C0.75 |
3??0.75 |
0.5 |
1.1 |
6.5 |
60 |
| MRE-2XH-5C0.75 |
5??0.75 |
0.5 |
1.2 |
7.7 |
80 |
| MRE-2XH-7C0.75 |
7??0.75 |
0.5 |
1.2 |
8.3 |
100 |
| MRE-2XH-12C0.75 |
12??0.75 |
0.5 |
1.3 |
10.9 |
170 |
| MRE-2XH-19C0.75 |
19??0.75 |
0.5 |
1.6 |
13.0 |
250 |
| MRE-2XH-27C0.75 |
27??0.75 |
0.5 |
1.7 |
15.6 |
350 |
| MRE-2XH-37C0.75 |
37??0.75 |
0.5 |
1.9 |
17.6 |
470 |
| MRE-2XH-2C1.0 |
2??1.0 |
0.5 |
1.1 |
6.6 |
60 |
| MRE-2XH-3C1.0 |
3??1.0 |
0.5 |
1.2 |
7.0 |
70 |
| MRE-2XH-5C1.0 |
5??1.0 |
0.5 |
1.2 |
8.2 |
100 |
| MRE-2XH-7C1.0 |
7??1.0 |
0.5 |
1.3 |
9.1 |
130 |
| MRE-2XH-12C1.0 |
12??1.0 |
0.5 |
1.4 |
11.7 |
210 |
| MRE-2XH-19C1.0 |
19??1.0 |
0.5 |
1.7 |
14.0 |
310 |
| MRE-2XH-27C1.0 |
27??1.0 |
0.5 |
1.9 |
16.8 |
430 |
| MRE-2XH-37C1.0 |
37??1.0 |
0.5 |
2.0 |
19.0 |
580 |
