MRE-M2X(St)H 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Overall Screened Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)
Applications
MRE-M2X(St)H 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Overall Screened Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple) are used on board of ships in all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
- IEC 60092-350/351/376/359
- IEC 60331-21
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

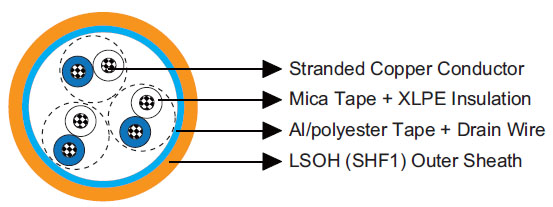

Construction
| Conductors |
Class 2 stranded copper conductor. |
| Insulation |
Mica tape + XLPE. |
| Cabling Element |
Pair/Triple. |
| Overall Screen |
Al/polyester tape. |
| Drain Wire |
Tinned copper wire. |
| Outer Sheath |
LSOH (SHF1).SHF2 can be offered upon request. |
Core Identification
| Pair |
White/blue with printed pair number and core number.
|
| Triple |
White/blue/red with printed triple number. |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations |
6??OD (OD>25mm) |
| |
4??OD (OD ??25mm) |
| Temperature Range |
-30?? ~ +80?? |
Dimensions and Weight
| Part No. |
Construction No. of elements??No. of cores in element??Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
mm2 |
mm |
mm |
mm |
kg/km |
| MRE-M2X(St)H-1P0.75 |
1??2??0.75 |
0.5 |
1.0 |
8.1 |
70 |
| MRE-M2X(St)H-2P0.75 |
2??2??0.75* |
0.5 |
1.1 |
9.5 |
110 |
| MRE-M2X(St)H-3P0.75 |
3??2??0.75 |
0.5 |
1.2 |
13.3 |
170 |
| MRE-M2X(St)H-4P0.75 |
4??2??0.75 |
0.5 |
1.3 |
14.3 |
210 |
| MRE-M2X(St)H-7P0.75 |
7??2??0.75 |
0.5 |
1.4 |
17.3 |
320 |
| MRE-M2X(St)H-8P0.75 |
8??2??0.75 |
0.5 |
1.4 |
18.4 |
360 |
| MRE-M2X(St)H-10P0.75 |
10??2??0.75 |
0.5 |
1.5 |
20.9 |
430 |
| MRE-M2X(St)H-12P07.5 |
12??2??0.75 |
0.5 |
1.5 |
21.7 |
490 |
| MRE-M2X(St)H-14P0.75 |
14??2??0.75 |
0.5 |
1.6 |
22.7 |
560 |
| MRE-M2X(St)H-16P0.75 |
16??2??0.75 |
0.5 |
1.6 |
24.4 |
630 |
| MRE-M2X(St)H-19P0.75 |
19??2??0.75 |
0.5 |
1.7 |
25.7 |
730 |
| MRE-M2X(St)H-24P0.75 |
24??2??0.75 |
0.5 |
1.8 |
29.3 |
910 |
| MRE-M2X(St)H-30P0.75 |
30??2??0.75 |
0.5 |
2.0 |
33.1 |
1140 |
| MRE-M2X(St)H-32P0.75 |
32??2??0.75 |
0.5 |
2.0 |
33.6 |
1190 |
| MRE-M2X(St)H-37P0.75 |
37??2??0.75 |
0.5 |
2.0 |
35.3 |
1340 |
| MRE-M2X(St)H-1P1.0 |
1??2??1.0 |
0.5 |
1.1 |
8.7 |
90 |
| MRE-M2X(St)H-2P1.0 |
2??2??1.0* |
0.5 |
1.1 |
9.9 |
130 |
| MRE-M2X(St)H-3P1.0 |
3??2??1.0 |
0.5 |
1.3 |
14.2 |
200 |
| MRE-M2X(St)H-4P1.0 |
4??2??1.0 |
0.5 |
1.3 |
15.1 |
240 |
| MRE-M2X(St)H-7P1.0 |
7??2??1.0 |
0.5 |
1.4 |
18.3 |
370 |
| MRE-M2X(St)H-8P1.0 |
8??2??1.0 |
0.5 |
1.5 |
19.7 |
430 |
| MRE-M2X(St)H-10P1.0 |
10??2??1.0 |
0.5 |
1.6 |
22.3 |
520 |
| MRE-M2X(St)H-12P1.0 |
12??2??1.0 |
0.5 |
1.6 |
23.2 |
590 |
| MRE-M2X(St)H-14P1.0 |
14??2??1.0 |
0.5 |
1.6 |
24.1 |
660 |
| MRE-M2X(St)H-16P1.0 |
16??2??1.0 |
0.5 |
1.7 |
26.1 |
760 |
| MRE-M2X(St)H-19P1.0 |
19??2??1.0 |
0.5 |
1.7 |
27.3 |
860 |
| MRE-M2X(St)H-24P1.0 |
24??2??1.0 |
0.5 |
1.9 |
31.3 |
1100 |
| MRE-M2X(St)H-30P1.0 |
30??2??1.0 |
0.5 |
2.0 |
35.1 |
1350 |
| MRE-M2X(St)H-32P1.0 |
32??2??1.0 |
0.5 |
2.1 |
35.9 |
1440 |
| MRE-M2X(St)H-37P1.0 |
37??2??1.0 |
0.5 |
2.1 |
37.7 |
1620 |
| MRE-M2X(St)H-1P1.5 |
1??2??1.5 |
0.6 |
1.1 |
9.5 |
100 |
| MRE-M2X(St)H-2P1.5 |
2??2??1.5* |
0.6 |
1.1 |
10.9 |
160 |
| MRE-M2X(St)H-3P1.5 |
3??2??1.5 |
0.6 |
1.3 |
15.7 |
250 |
| MRE-M2X(St)H-4P1.5 |
4??2??1.5 |
0.6 |
1.4 |
16.9 |
310 |
| MRE-M2X(St)H-7P1.5 |
7??2??1.5 |
0.6 |
1.5 |
20.5 |
490 |
| MRE-M2X(St)H-8P1.5 |
8??2??1.5 |
0.6 |
1.5 |
21.9 |
550 |
| MRE-M2X(St)H-10P1.5 |
10??2??1.5 |
0.6 |
1.7 |
25.0 |
670 |
| MRE-M2X(St)H-12P1.5 |
12??2??1.5 |
0.6 |
1.7 |
26.0 |
770 |
| MRE-M2X(St)H-14P1.5 |
14??2??1.5 |
0.6 |
1.7 |
27.0 |
870 |
| MRE-M2X(St)H-16P1.5 |
16??2??1.5 |
0.6 |
1.8 |
29.3 |
990 |
| MRE-M2X(St)H-19P1.5 |
19??2??1.5 |
0.6 |
1.9 |
30.8 |
1150 |
| MRE-M2X(St)H-24P1.5 |
24??2??1.5 |
0.6 |
2.0 |
35.1 |
1440 |
| MRE-M2X(St)H-30P1.5 |
30??2??1.5 |
0.6 |
2.2 |
39.6 |
1790 |
| MRE-M2X(St)H-32P1.5 |
32??2??1.5 |
0.6 |
2.2 |
40.3 |
1890 |
| MRE-M2X(St)H-37P1.5 |
37??2??1.5 |
0.6 |
2.3 |
42.5 |
2160 |
| MRE-M2X(St)H-1T0.75 |
1??3??0.75 |
0.5 |
1.1 |
8.7 |
90 |
| MRE-M2X(St)H-2T0.75 |
2??3??0.75 |
0.5 |
1.2 |
13.5 |
180 |
| MRE-M2X(St)H-3T0.75 |
3??3??0.75 |
0.5 |
1.3 |
14.5 |
230 |
| MRE-M2X(St)H-4T0.75 |
4??3??0.75 |
0.5 |
1.3 |
15.9 |
280 |
| MRE-M2X(St)H-7T0.75 |
7??3??0.75 |
0.5 |
1.5 |
20.2 |
460 |
| MRE-M2X(St)H-8T0.75 |
8??3??0.75 |
0.5 |
1.5 |
21.6 |
510 |
| MRE-M2X(St)H-10T0.75 |
10??3??0.75 |
0.5 |
1.6 |
24.6 |
620 |
| MRE-M2X(St)H-12T07.5 |
12??3??0.75 |
0.5 |
1.7 |
26.2 |
720 |
| MRE-M2X(St)H-14T0.75 |
14??3??0.75 |
0.5 |
1.7 |
27.3 |
810 |
| MRE-M2X(St)H-16T0.75 |
16??3??0.75 |
0.5 |
1.8 |
29.2 |
920 |
| MRE-M2X(St)H-19T0.75 |
19??3??0.75 |
0.5 |
1.9 |
31.6 |
1080 |
| MRE-M2X(St)H-24T0.75 |
24??3??0.75 |
0.5 |
2.0 |
35.1 |
1340 |
| MRE-M2X(St)H-30T0.75 |
30??3??0.75 |
0.5 |
2.2 |
39.1 |
1660 |
| MRE-M2X(St)H-32T0.75 |
32??3??0.75 |
0.5 |
2.2 |
40.5 |
1760 |
| MRE-M2X(St)H-37T0.75 |
37??3??0.75 |
0.5 |
2.3 |
42.7 |
2000 |
| MRE-M2X(St)H-1T1.0 |
1??3??1.0 |
0.5 |
1.1 |
9.2 |
110 |
| MRE-M2X(St)H-2T1.0 |
2??3??1.0 |
0.5 |
1.3 |
14.6 |
210 |
| MRE-M2X(St)H-3T1.0 |
3??3??1.0 |
0.5 |
1.3 |
15.5 |
270 |
| MRE-M2X(St)H-4T1.0 |
4??3??1.0 |
0.5 |
1.4 |
17.2 |
340 |
| MRE-M2X(St)H-7T1.0 |
7??3??1.0 |
0.5 |
1.5 |
21.6 |
540 |
| MRE-M2X(St)H-8T1.0 |
8??3??1.0 |
0.5 |
1.6 |
23.3 |
620 |
| MRE-M2X(St)H-10T1.0 |
10??3??1.0 |
0.5 |
1.7 |
26.5 |
740 |
| MRE-M2X(St)H-12T1.0 |
12??3??1.0 |
0.5 |
1.8 |
28.2 |
870 |
| MRE-M2X(St)H-14T1.0 |
14??3??1.0 |
0.5 |
1.8 |
29.4 |
980 |
| MRE-M2X(St)H-16T1.0 |
16??3??1.0 |
0.5 |
1.9 |
31.4 |
1110 |
| MRE-M2X(St)H-19T1.0 |
19??3??1.0 |
0.5 |
2.0 |
34.1 |
1310 |
| MRE-M2X(St)H-24T1.0 |
24??3??1.0 |
0.5 |
2.1 |
37.9 |
1620 |
| MRE-M2X(St)H-30T1.0 |
30??3??1.0 |
0.5 |
2.3 |
42.2 |
2010 |
| MRE-M2X(St)H-32T1.0 |
32??3??1.0 |
0.5 |
2.4 |
43.9 |
2150 |
| MRE-M2X(St)H-37T1.0 |
37??3??1.0 |
0.5 |
2.4 |
46.0 |
2430 |
| MRE-M2X(St)H-1T1.5 |
1??3??1.5 |
0.6 |
1.1 |
10.0 |
130 |
| MRE-M2X(St)H-2T1.5 |
2??3??1.5 |
0.6 |
1.3 |
16.0 |
260 |
| MRE-M2X(St)H-3T1.5 |
3??3??1.5 |
0.6 |
1.4 |
17.2 |
340 |
| MRE-M2X(St)H-4T1.5 |
4??3??1.5 |
0.6 |
1.4 |
18.9 |
430 |
| MRE-M2X(St)H-7T1.5 |
7??3??1.5 |
0.6 |
1.6 |
24.0 |
700 |
| MRE-M2X(St)H-8T1.5 |
8??3??1.5 |
0.6 |
1.7 |
25.9 |
800 |
| MRE-M2X(St)H-10T1.5 |
10??3??1.5 |
0.6 |
1.8 |
29.5 |
970 |
| MRE-M2X(St)H-12T1.5 |
12??3??1.5 |
0.6 |
1.9 |
31.4 |
1130 |
| MRE-M2X(St)H-14T1.5 |
14??3??1.5 |
0.6 |
2.0 |
33.0 |
1300 |
| MRE-M2X(St)H-16T1.5 |
16??3??1.5 |
0.6 |
2.0 |
35.0 |
1460 |
| MRE-M2X(St)H-19T1.5 |
19??3??1.5 |
0.6 |
2.1 |
37.9 |
1710 |
| MRE-M2X(St)H-24T1.5 |
24??3??1.5 |
0.6 |
2.3 |
42.4 |
2140 |
| MRE-M2X(St)H-30T1.5 |
30??3??1.5 |
0.6 |
2.5 |
47.2 |
2660 |
| MRE-M2X(St)H-32T1.5 |
32??3??1.5 |
0.6 |
2.5 |
48.9 |
2820 |
| MRE-M2X(St)H-37T1.5 |
37??3??1.5 |
0.6 |
2.6 |
51.4 |
3210 |
*: 2 pairs are assembled as a quad.
