MRE-M2XH PiMF/TiMF 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Individual Screened Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)
Applications
MRE-M2XH PiMF/TiMF 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Individual Screened Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple) are used on board of ships in all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
- IEC 60092-350/351/376/359
- IEC 60331-21
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

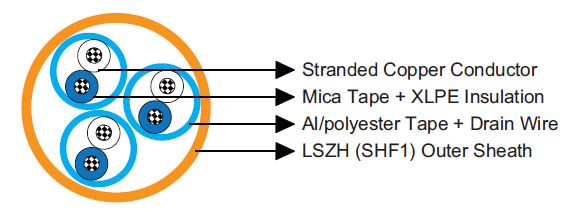

Construction
| Conductors |
Class 2 stranded copper conductor. |
| Insulation |
Mica tape + XLPE. |
| Cabling Element |
Pair/Triple. |
| Individual Screen |
Al/polyester tape. |
| Drain Wire |
Tinned copper wire. |
| Outer Sheath |
LSOH (SHF1).SHF2 can be offered upon request. |
Core Identification
| Pair |
White/blue with printed pair number and core number.
|
| Triple |
White/blue/red with printed triple number. |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations |
6??OD (OD>25mm) |
| |
4??OD (OD ??25mm) |
| Temperature Range |
-30?? ~ +80?? |
Dimensions and Weight
| Part No. |
Construction No. of elements??No. of cores in element??Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
mm2 |
mm |
mm |
mm |
kg/km |
| MRE-M2XH PiMF-1P0.75 |
1??2??0.75 |
0.5 |
1.0 |
7.9 |
80 |
| MRE-M2XH PiMF-2P0.75 |
2??2??0.75 |
0.5 |
1.2 |
12.4 |
170 |
| MRE-M2XH PiMF-3P0.75 |
3??2??0.75 |
0.5 |
1.2 |
13.2 |
210 |
| MRE-M2XH PiMF-4P0.75 |
4??2??0.75 |
0.5 |
1.3 |
14.3 |
260 |
| MRE-M2XH PiMF-5P0.75 |
5??2??0.75 |
0.5 |
1.3 |
16.0 |
320 |
| MRE-M2XH PiMF-6P0.75 |
6??2??0.75 |
0.5 |
1.4 |
17.4 |
380 |
| MRE-M2XH PiMF-7P0.75 |
7??2??0.75 |
0.5 |
1.4 |
17.4 |
410 |
| MRE-M2XH PiMF-8P0.75 |
8??2??0.75 |
0.5 |
1.4 |
18.5 |
460 |
| MRE-M2XH PiMF-10P0.75 |
10??2??0.75 |
0.5 |
1.5 |
21.0 |
570 |
| MRE-M2XH PiMF-12P0.75 |
12??2??0.75 |
0.5 |
1.5 |
21.8 |
650 |
| MRE-M2XH PiMF-14P0.75 |
14??2??0.75 |
0.5 |
1.6 |
22.9 |
740 |
| MRE-M2XH PiMF-16P0.75 |
16??2??0.75 |
0.5 |
1.6 |
24.6 |
840 |
| MRE-M2XH PiMF-19P0.75 |
19??2??0.75 |
0.5 |
1.7 |
26.5 |
980 |
| MRE-M2XH PiMF-20P0.75 |
20??2??0.75 |
0.5 |
1.7 |
26.5 |
1010 |
| MRE-M2XH PiMF-24P0.75 |
24??2??0.75 |
0.5 |
1.9 |
30.6 |
1260 |
| MRE-M2XH PiMF-30P0.75 |
30??2??0.75 |
0.5 |
2.0 |
33.4 |
1530 |
| MRE-M2XH PiMF-37P0.75 |
37??2??0.75 |
0.5 |
2.1 |
35.9 |
1830 |
| MRE-M2XH PiMF-1P1.0 |
1??2??1.0 |
0.5 |
1.0 |
8.3 |
90 |
| MRE-M2XH PiMF-2P1.0 |
2??2??1.0 |
0.5 |
1.2 |
13.1 |
200 |
| MRE-M2XH PiMF-3P1.0 |
3??2??1.0 |
0.5 |
1.3 |
14.2 |
250 |
| MRE-M2XH PiMF-4P1.0 |
4??2??1.0 |
0.5 |
1.3 |
15.1 |
310 |
| MRE-M2XH PiMF-5P1.0 |
5??2??1.0 |
0.5 |
1.4 |
17.1 |
380 |
| MRE-M2XH PiMF-6P1.0 |
6??2??1.0 |
0.5 |
1.4 |
18.4 |
440 |
| MRE-M2XH PiMF-7P1.0 |
7??2??1.0 |
0.5 |
1.4 |
18.4 |
480 |
| MRE-M2XH PiMF-8P1.0 |
8??2??1.0 |
0.5 |
1.5 |
19.8 |
550 |
| MRE-M2XH PiMF-10P1.0 |
10??2??1.0 |
0.5 |
1.6 |
22.4 |
690 |
| MRE-M2XH PiMF-12P1.0 |
12??2??1.0 |
0.5 |
1.6 |
23.3 |
780 |
| MRE-M2XH PiMF-14P1.0 |
14??2??1.0 |
0.5 |
1.6 |
24.2 |
880 |
| MRE-M2XH PiMF-16P1.0 |
16??2??1.0 |
0.5 |
1.7 |
26.3 |
1020 |
| MRE-M2XH PiMF-19P1.0 |
19??2??1.0 |
0.5 |
1.8 |
28.3 |
1190 |
| MRE-M2XH PiMF-20P1.0 |
20??2??1.0 |
0.5 |
1.8 |
28.3 |
1230 |
| MRE-M2XH PiMF-24P1.0 |
24??2??1.0 |
0.5 |
1.9 |
32.5 |
1510 |
| MRE-M2XH PiMF-30P1.0 |
30??2??1.0 |
0.5 |
2.0 |
35.4 |
1840 |
| MRE-M2XH PiMF-37P1.0 |
37??2??1.0 |
0.5 |
2.1 |
38.1 |
2210 |
| MRE-M2XH TiMF-1T0.75 |
1??3??0.75 |
0.5 |
1.0 |
8.3 |
100 |
| MRE-M2XH TiMF-2T0.75 |
2??3??0.75 |
0.5 |
1.2 |
13.5 |
210 |
| MRE-M2XH TiMF-3T0.75 |
3??3??0.75 |
0.5 |
1.3 |
14.5 |
270 |
| MRE-M2XH TiMF-4T0.75 |
4??3??0.75 |
0.5 |
1.3 |
16.0 |
330 |
| MRE-M2XH TiMF-5T0.75 |
5??3??0.75 |
0.5 |
1.4 |
17.9 |
410 |
| MRE-M2XH TiMF-6T0.75 |
6??3??0.75 |
0.5 |
1.5 |
20.3 |
500 |
| MRE-M2XH TiMF-7T0.75 |
7??3??0.75 |
0.5 |
1.5 |
20.3 |
540 |
| MRE-M2XH TiMF-8T0.75 |
8??3??0.75 |
0.5 |
1.5 |
21.8 |
620 |
| MRE-M2XH TiMF-10T0.75 |
10??3??0.75 |
0.5 |
1.7 |
25.0 |
780 |
| MRE-M2XH TiMF-12T0.75 |
12??3??0.75 |
0.5 |
1.7 |
26.4 |
900 |
| MRE-M2XH TiMF-14T0.75 |
14??3??0.75 |
0.5 |
1.8 |
27.7 |
1020 |
| MRE-M2XH TiMF-16T0.75 |
16??3??0.75 |
0.5 |
1.8 |
29.5 |
1160 |
| MRE-M2XH TiMF-19T0.75 |
19??3??0.75 |
0.5 |
1.9 |
32.0 |
1360 |
| MRE-M2XH TiMF-20T0.75 |
20??3??0.75 |
0.5 |
1.9 |
32.5 |
1420 |
| MRE-M2XH TiMF-24T0.75 |
24??3??0.75 |
0.5 |
2.1 |
35.7 |
1700 |
| MRE-M2XH TiMF-30T0.75 |
30??3??0.75 |
0.5 |
2.2 |
39.6 |
2100 |
| MRE-M2XH TiMF-32T0.75 |
32??3??0.75 |
0.5 |
2.3 |
41.2 |
2250 |
| MRE-M2XH TiMF-1T1.0 |
1??3??1.0 |
0.5 |
1.1 |
8.9 |
120 |
| MRE-M2XH TiMF-2T1.0 |
2??3??1.0 |
0.5 |
1.3 |
14.4 |
250 |
| MRE-M2XH TiMF-3T1.0 |
3??3??1.0 |
0.5 |
1.3 |
15.4 |
310 |
| MRE-M2XH TiMF-4T1.0 |
4??3??1.0 |
0.5 |
1.4 |
17.1 |
400 |
| MRE-M2XH TiMF-5T1.0 |
5??3??1.0 |
0.5 |
1.4 |
18.9 |
480 |
| MRE-M2XH TiMF-6T1.0 |
6??3??1.0 |
0.5 |
1.5 |
21.5 |
590 |
| MRE-M2XH TiMF-7T1.0 |
7??3??1.0 |
0.5 |
1.5 |
21.5 |
640 |
| MRE-M2XH TiMF-8T1.0 |
8??3??1.0 |
0.5 |
1.6 |
23.3 |
740 |
| MRE-M2XH TiMF-10T1.0 |
10??3??1.0 |
0.5 |
1.7 |
26.5 |
930 |
| MRE-M2XH TiMF-12T1.0 |
12??3??1.0 |
0.5 |
1.8 |
28.2 |
1090 |
| MRE-M2XH TiMF-14T1.0 |
14??3??1.0 |
0.5 |
1.8 |
29.4 |
1220 |
| MRE-M2XH TiMF-16T1.0 |
16??3??1.0 |
0.5 |
1.9 |
31.5 |
1400 |
| MRE-M2XH TiMF-19T1.0 |
19??3??1.0 |
0.5 |
2.0 |
34.1 |
1640 |
| MRE-M2XH TiMF-20T1.0 |
20??3??1.0 |
0.5 |
2.0 |
34.7 |
1710 |
| MRE-M2XH TiMF-24T1.0 |
24??3??1.0 |
0.5 |
2.1 |
37.9 |
2040 |
| MRE-M2XH TiMF-30T1.0 |
30??3??1.0 |
0.5 |
2.3 |
42.3 |
2540 |
| MRE-M2XH TiMF-32T1.0 |
32??3??1.0 |
0.5 |
2.4 |
44.0 |
2720 |
