MRE-2XCH 150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cables (Multicore)

Applications

MRE-2XCH 150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cables (Multicore) are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Standards

• IEC 60092-350/351/376/359
• IEC 60332-1
• IEC 60332-3-22
• IEC 60754-1/2
• IEC 61034

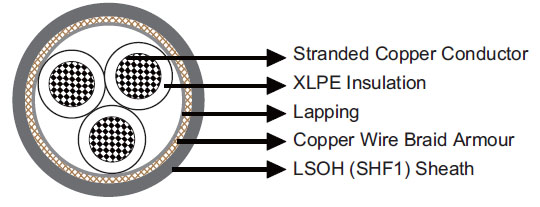

Construction

Conductors	Class 2 stranded copper conductor.
Insulation	XLPE.
Inner Covering	Lapping.
Armour	Copper wire braid.
Outer Sheath	LSOH (SHF1).SHF2 can be offered upon request.

Core Identification

White with printed number.

Mechanical and Thermal Properties

Bending Radius for Fixed Installations	6??OD
Temperature Range	-30?? ~ +80??

Dimensions and Weight

Part No.	Construction No. of cores??Cross section	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal Overall Diameter	Nominal Weight
	mm2)	mm	mm	mm	kg/km
MRE-2XCH-2C0.75	2??0.75	0.5	1.2	7.2	80
MRE-2XCH-3C0.75	3??0.75	0.5	1.2	7.5	90
MRE-2XCH-5C0.75	5??0.75	0.5	1.4	8.9	130
MRE-2XCH-7C0.75	7??0.75	0.5	1.6	9.8	150
MRE-2XCH-12C0.75	12??0.75	0.5	1.7	12.4	230
MRE-2XCH-19C0.75	19??0.75	0.5	1.9	14.6	320
MRE-2XCH-27C0.75	27??0.75	0.5	2.1	17.3	460
MRE-2XCH-37C0.75	37??0.75	0.5	2.2	19.3	590
MRE-2XCH-2C1.0	2??1.0	0.5	1.4	7.9	90
MRE-2XCH-3C1.0	3??1.0	0.5	1.4	8.3	100
MRE-2XCH-5C1.0	5??1.0	0.5	1.5	9.7	150
MRE-2XCH-7C1.0	7??1.0	0.5	1.6	10.4	180
MRE-2XCH-12C1.0	12??1.0	0.5	1.8	13.2	270
MRE-2XCH-19C1.0	19??1.0	0.5	2.1	15.9	420
MRE-2XCH-27C1.0	27??1.0	0.5	2.2	18.4	560
MRE-2XCH-37C1.0	37??1.0	0.5	2.4	20.7	710
