MRE-M2XCH 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)
Applications
MRE-M2XCH 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple) are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
- IEC 60092-350/351/376/359
- IEC 60331-21
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

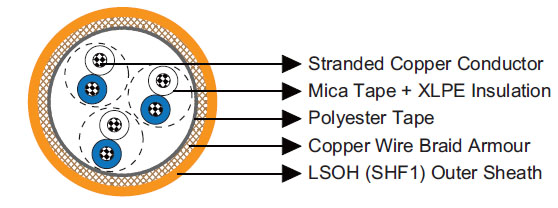

Construction
| Conductors |
Class 2 stranded copper conductor. |
| Insulation |
Mica tape + XLPE. |
| Cabling Element |
Pair/Triple. |
| Inner Covering |
Lapped polyester tape. |
| Armour |
Copper wire braid. |
| Outer Sheath |
LSOH (SHF1).SHF2 can be offered upon request. |
Core Identification
| Pair |
White/blue with printed pair number and core number.
|
| Triple |
White/blue/red with printed triple number. |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations |
6??OD |
| Temperature Range |
-30?? ~ +80?? |
Dimensions and Weight
| Part No. |
Construction No. of elements??No. of cores in element??Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
mm2 |
mm |
mm |
mm |
kg/km |
| MRE-M2XCH-1P0.75 |
1??2??0.75 |
0.5 |
1.3 |
9.1 |
120 |
| MRE-M2XCH-2P0.75 |
2??2??0.75 |
0.5 |
1.3 |
10.2 |
150 |
| MRE-M2XCH-3P0.75 |
3??2??0.75 |
0.5 |
1.8 |
14.6 |
280 |
| MRE-M2XCH-4P0.75 |
4??2??0.75 |
0.5 |
1.8 |
15.4 |
320 |
| MRE-M2XCH-5P0.75 |
5??2??0.75 |
0.5 |
1.9 |
17.2 |
390 |
| MRE-M2XCH-6P0.75 |
6??2??0.75 |
0.5 |
1.9 |
18.3 |
440 |
| MRE-M2XCH-7P0.75 |
7??2??0.75 |
0.5 |
1.9 |
18.3 |
460 |
| MRE-M2XCH-8P0.75 |
8??2??0.75 |
0.5 |
2.0 |
19.6 |
520 |
| MRE-M2XCH-10P0.75 |
10??2??0.75 |
0.5 |
2.0 |
21.7 |
620 |
| MRE-M2XCH-12P0.75 |
12??2??0.75 |
0.5 |
2.1 |
22.8 |
700 |
| MRE-M2XCH-14P0.75 |
14??2??0.75 |
0.5 |
2.1 |
23.6 |
770 |
| MRE-M2XCH-16P0.75 |
16??2??0.75 |
0.5 |
2.2 |
25.4 |
870 |
| MRE-M2XCH-19P0.75 |
19??2??0.75 |
0.5 |
2.2 |
27.0 |
990 |
| MRE-M2XCH-20P0.75 |
20??2??0.75 |
0.5 |
2.2 |
27.0 |
1010 |
| MRE-M2XCH-24P0.75 |
24??2??0.75 |
0.5 |
2.4 |
30.9 |
1240 |
| MRE-M2XCH-30P0.75 |
30??2??0.75 |
0.5 |
2.5 |
33.5 |
1480 |
| MRE-M2XCH-37P0.75 |
37??2??0.75 |
0.5 |
2.6 |
35.9 |
1730 |
| MRE-M2XCH-1P1.0 |
1??2??1.0 |
0.5 |
1.3 |
9.5 |
130 |
| MRE-M2XCH-2P1.0 |
2??2??1.0 |
0.5 |
1.3 |
10.7 |
170 |
| MRE-M2XCH-3P1.0 |
3??2??1.0 |
0.5 |
1.8 |
15.3 |
320 |
| MRE-M2XCH-4P1.0 |
4??2??1.0 |
0.5 |
1.8 |
16.2 |
360 |
| MRE-M2XCH-5P1.0 |
5??2??1.0 |
0.5 |
1.9 |
18.1 |
440 |
| MRE-M2XCH-6P1.0 |
6??2??1.0 |
0.5 |
2.0 |
19.5 |
510 |
| MRE-M2XCH-7P1.0 |
7??2??1.0 |
0.5 |
2.0 |
19.5 |
530 |
| MRE-M2XCH-8P1.0 |
8??2??1.0 |
0.5 |
2.0 |
20.7 |
590 |
| MRE-M2XCH-10P1.0 |
10??2??1.0 |
0.5 |
2.1 |
23.2 |
730 |
| MRE-M2XCH-12P1.0 |
12??2??1.0 |
0.5 |
2.1 |
24.1 |
810 |
| MRE-M2XCH-14P1.0 |
14??2??1.0 |
0.5 |
2.2 |
25.1 |
900 |
| MRE-M2XCH-16P1.0 |
16??2??1.0 |
0.5 |
2.2 |
26.9 |
1010 |
| MRE-M2XCH-19P1.0 |
19??2??1.0 |
0.5 |
2.3 |
28.8 |
1160 |
| MRE-M2XCH-20P1.0 |
20??2??1.0 |
0.5 |
2.3 |
28.8 |
1190 |
| MRE-M2XCH-24P1.0 |
24??2??1.0 |
0.5 |
2.5 |
33.0 |
1460 |
| MRE-M2XCH-30P1.0 |
30??2??1.0 |
0.5 |
2.6 |
35.8 |
1740 |
| MRE-M2XCH-37P1.0 |
37??2??1.0 |
0.5 |
2.9 |
38.8 |
2140 |
| MRE-M2XCH-1P1.5 |
1??2??1.5 |
0.6 |
1.3 |
10.5 |
160 |
| MRE-M2XCH-2P1.5 |
2??2??1.5 |
0.6 |
1.4 |
12.1 |
220 |
| MRE-M2XCH-3P1.5 |
3??2??1.5 |
0.6 |
1.9 |
17.4 |
400 |
| MRE-M2XCH-4P1.5 |
4??2??1.5 |
0.6 |
1.9 |
18.4 |
470 |
| MRE-M2XCH-5P1.5 |
5??2??1.5 |
0.6 |
2.0 |
20.6 |
570 |
| MRE-M2XCH-6P1.5 |
6??2??1.5 |
0.6 |
2.1 |
22.2 |
660 |
| MRE-M2XCH-7P1.5 |
7??2??1.5 |
0.6 |
2.1 |
22.2 |
700 |
| MRE-M2XCH-8P1.5 |
8??2??1.5 |
0.6 |
2.1 |
23.6 |
780 |
| MRE-M2XCH-10P1.5 |
10??2??1.5 |
0.6 |
2.2 |
26.5 |
950 |
| MRE-M2XCH-12P1.5 |
12??2??1.5 |
0.6 |
2.3 |
27.7 |
1070 |
| MRE-M2XCH-14P1.5 |
14??2??1.5 |
0.6 |
2.3 |
28.7 |
1180 |
| MRE-M2XCH-16P1.5 |
16??2??1.5 |
0.6 |
2.4 |
31.0 |
1350 |
| MRE-M2XCH-19P1.5 |
19??2??1.5 |
0.6 |
2.5 |
33.2 |
1560 |
| MRE-M2XCH-20P1.5 |
20??2??1.5 |
0.6 |
2.5 |
33.2 |
1590 |
| MRE-M2XCH-24P1.5 |
24??2??1.5 |
0.6 |
2.9 |
38.5 |
2060 |
| MRE-M2XCH-30P1.5 |
30??2??1.5 |
0.6 |
3.0 |
41.8 |
2450 |
| MRE-M2XCH-37P1.5 |
37??2??1.5 |
0.6 |
3.1 |
44.7 |
2880 |
| MRE-M2XCH-1T0.75 |
1??3??0.75 |
0.5 |
1.3 |
9.5 |
130 |
| MRE-M2XCH-2T0.75 |
2??3??0.75 |
0.5 |
1.8 |
14.9 |
290 |
| MRE-M2XCH-3T0.75 |
3??3??0.75 |
0.5 |
1.8 |
15.7 |
340 |
| MRE-M2XCH-4T0.75 |
4??3??0.75 |
0.5 |
1.9 |
17.2 |
410 |
| MRE-M2XCH-5T0.75 |
5??3??0.75 |
0.5 |
1.9 |
18.8 |
480 |
| MRE-M2XCH-6T0.75 |
6??3??0.75 |
0.5 |
2.0 |
21.2 |
590 |
| MRE-M2XCH-7T0.75 |
7??3??0.75 |
0.5 |
2.0 |
21.2 |
620 |
| MRE-M2XCH-8T0.75 |
8??3??0.75 |
0.5 |
2.1 |
22.8 |
700 |
| MRE-M2XCH-10T0.75 |
10??3??0.75 |
0.5 |
2.2 |
25.7 |
860 |
| MRE-M2XCH-12T0.75 |
12??3??0.75 |
0.5 |
2.2 |
27.0 |
970 |
| MRE-M2XCH-14T0.75 |
14??3??0.75 |
0.5 |
2.3 |
28.3 |
1080 |
| MRE-M2XCH-16T0.75 |
16??3??0.75 |
0.5 |
2.3 |
29.9 |
1200 |
| MRE-M2XCH-19T0.75 |
19??3??0.75 |
0.5 |
2.4 |
32.3 |
1390 |
| MRE-M2XCH-20T0.75 |
20??3??0.75 |
0.5 |
2.5 |
33.0 |
1460 |
| MRE-M2XCH-24T0.75 |
24??3??0.75 |
0.5 |
2.6 |
35.9 |
1710 |
| MRE-M2XCH-30T0.75 |
30??3??0.75 |
0.5 |
2.9 |
40.1 |
2170 |
| MRE-M2XCH-32T0.75 |
32??3??0.75 |
0.5 |
3.0 |
41.7 |
2320 |
| MRE-M2XCH-1T1.0 |
1??3??1.0 |
0.5 |
1.3 |
9.9 |
150 |
| MRE-M2XCH-2T1.0 |
2??3??1.0 |
0.5 |
1.8 |
15.6 |
320 |
| MRE-M2XCH-3T1.0 |
3??3??1.0 |
0.5 |
1.8 |
16.5 |
380 |
| MRE-M2XCH-4T1.0 |
4??3??1.0 |
0.5 |
1.9 |
18.1 |
470 |
| MRE-M2XCH-5T1.0 |
5??3??1.0 |
0.5 |
2.0 |
20.1 |
560 |
| MRE-M2XCH-6T1.0 |
6??3??1.0 |
0.5 |
2.1 |
22.6 |
680 |
| MRE-M2XCH-7T1.0 |
7??3??1.0 |
0.5 |
2.1 |
22.6 |
720 |
| MRE-M2XCH-8T1.0 |
8??3??1.0 |
0.5 |
2.1 |
24.1 |
810 |
| MRE-M2XCH-10T1.0 |
10??3??1.0 |
0.5 |
2.2 |
27.2 |
990 |
| MRE-M2XCH-12T1.0 |
12??3??1.0 |
0.5 |
2.3 |
28.8 |
1130 |
| MRE-M2XCH-14T1.0 |
14??3??1.0 |
0.5 |
2.3 |
30.0 |
1260 |
| MRE-M2XCH-16T1.0 |
16??3??1.0 |
0.5 |
2.4 |
31.9 |
1410 |
| MRE-M2XCH-19T1.0 |
19??3??1.0 |
0.5 |
2.5 |
34.4 |
1640 |
| MRE-M2XCH-20T1.0 |
20??3??1.0 |
0.5 |
2.5 |
35.0 |
1700 |
| MRE-M2XCH-24T1.0 |
24??3??1.0 |
0.5 |
2.9 |
38.8 |
2110 |
| MRE-M2XCH-30T1.0 |
30??3??1.0 |
0.5 |
3.0 |
42.8 |
2560 |
| MRE-M2XCH-32T1.0 |
32??3??1.0 |
0.5 |
3.1 |
44.4 |
2730 |
| MRE-M2XCH-1T1.5 |
1??3??1.5 |
0.6 |
1.3 |
11.0 |
180 |
| MRE-M2XCH-2T1.5 |
2??3??1.5 |
0.6 |
1.9 |
17.7 |
410 |
| MRE-M2XCH-3T1.5 |
3??3??1.5 |
0.6 |
1.9 |
18.7 |
490 |
| MRE-M2XCH-4T1.5 |
4??3??1.5 |
0.6 |
2.0 |
20.6 |
610 |
| MRE-M2XCH-5T1.5 |
5??3??1.5 |
0.6 |
2.1 |
22.9 |
740 |
| MRE-M2XCH-6T1.5 |
6??3??1.5 |
0.6 |
2.2 |
25.8 |
890 |
| MRE-M2XCH-7T1.5 |
7??3??1.5 |
0.6 |
2.2 |
25.8 |
950 |
| MRE-M2XCH-8T1.5 |
8??3??1.5 |
0.6 |
2.3 |
27.7 |
1070 |
| MRE-M2XCH-10T1.5 |
10??3??1.5 |
0.6 |
2.4 |
31.3 |
1320 |
| MRE-M2XCH-12T1.5 |
12??3??1.5 |
0.6 |
2.5 |
33.2 |
1520 |
| MRE-M2XCH-14T1.5 |
14??3??1.5 |
0.6 |
2.5 |
34.6 |
1690 |
| MRE-M2XCH-16T1.5 |
16??3??1.5 |
0.6 |
2.8 |
37.3 |
1990 |
| MRE-M2XCH-19T1.5 |
19??3??1.5 |
0.6 |
2.9 |
40.3 |
2310 |
| MRE-M2XCH-20T1.5 |
20??3??1.5 |
0.6 |
3.0 |
41.1 |
2420 |
| MRE-M2XCH-24T1.5 |
24??3??1.5 |
0.6 |
3.1 |
44.7 |
2840 |
| MRE-M2XCH-30T1.5 |
30??3??1.5 |
0.6 |
3.3 |
49.5 |
3460 |
| MRE-M2XCH-32T1.5 |
32??3??1.5 |
0.6 |
3.3 |
51.2 |
3670 |
*: 2 pairs are assembled as a quad.
