Water Blocked P16 IFLI 250 V

Applications

Water Blocked P16 IFLI 250 V cables are flame retardant, low smoke and halogen free, used for living, quarter and office areas.

Standards

• IEC 60092-376	IEC 60092-351
  IEC 60092-359	IEC 60332-1
  IEC 60332-3-22	IEC 60754-1,2
  IEC 61034-1,2	NEK 606:2004
  VG 95218 part 29?

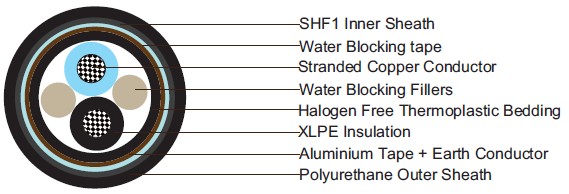

Construction

• l???? Conductors: Circular stranded copper wire to IEC 60228 class 2.
  l???? Insulation: XLPE.
  l???? Filler: Water blocking fillers, if required.
  l???? Bedding: Halogen free thermoplastic compound.
  l???? Metal Screen: Longitudinal aluminium tape, thickness 0.2 mm in contact with a stranded copper earth conductor, PETP wrapping tape will be applied over the bedding, if required.
  l???? Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
  l???? Inner Sheath: Halogen free thermoplastic compound, SHF1, coloured grey.
  l???? Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.

Electrical Characteristics

• Nominal Cross Section Area	mm2	2.5
  Maximum Resistant@20??	??/km	7.41
  Continuous Current Rating@45??2 Core	A	26
  Short Circuit Current 1s	A	360
  Operating Voltage	V	250

Mechanical and Thermal Properties

• Bending Radius : 8??OD (during installation); 6??OD (fixed installed).
• Temperature Range : -20?? ~ +90??.

Dimensions and Weight

Construction No. of elements??No. of cores in element??Cross section(mm2)	Nominal Insulation Thickness mm	Nominal Bedding Thickness mm	Nominal Inner Sheath Thickness mm	Nominal Outer Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
2??1??2.5	0.7	1.1	1.2	1.0	12.0??2	189
