Water Blocked S3 or S3/S7 BFOU(i) 250V

Applications

Water Blocked S3 or S3/S7 BFOU(i) 250V cables are fire resistant, flame retardant, low smoke,halogen free and mud resistant, used for instrumentation, communication, control and alarm systems.

Standards

IEC 60092-376	IEC 60092-351
IEC 60092-359	IEC 60332-1
IEC 60332-3-22	IEC 60754-1,2
IEC 61034-1,2	NEK 606:2004
VG 95218 part 29

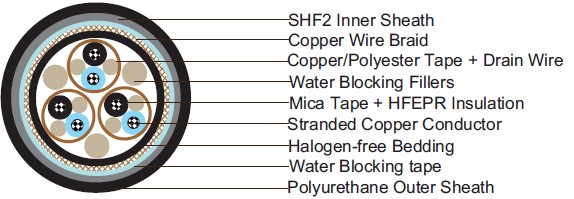

Construction

• l???? Conductors: Circular tinned annealed stranded copper wire to IEC 60228 class 2.
  l???? Insulation: Mica tape + Halogen free EPR compound.
  l???? Twinning: Colour coded cores twisted together.
  l???? Filler: Water blocking fillers, if required.
  l???? Individual Shielding: Each pairs/triples are screened by copper backed polyester tape in contact with a stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
  l???? Filler: Water blocking fillers, if required.
  l???? Bedding: Halogen free compound, PETP wrapping tape will be applied over the bedding, if required.
  l???? Armour: Tinned copper wire braid, PETP wrapping tape will be applied over the braiding, if required.
  l???? Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
  l??? Inner Sheath: Halogen free thermosetting compound, SHF2 (for TYPE S3). Halogen free MUD resistant thermosetting compound, SHF MUD (for TYPE S3/S7), coloured grey (blue for intrinsically safe).

  l?????? Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.

Electrical Characteristics

• Nominal Cross Section Area	mm2	0.75	1.0	1.5	2.5
  Nominal Conductor Diameter	mm	1.1	1.3	1.6	2.0
  Maximum Resistant@20??	??/km	26.3	19.3	12.9	8.02
  Mutual Capacitance	nF/km	85	95	100	110
  Nominal Inductance@1KHz	MH/km	0.731	0.691	0.673	0.629
  Maximum L/R@1KHz	??H/??	20	25	35	55
  Operating Voltage	V	250	250	250	250

Mechanical and Thermal Properties

• Bending Radius : 8??OD (during installation); 6??OD (fixed installed).
• Temperature Range : -20?? ~ +90??.

Dimensions and Weight

Construction No. of elements??No. of cores in element??Cross section (mm2)	Nominal Insulation Thickness mm	Nominal Sheath Thickness mm	Nominal Inner Sheath Thickness mm	Nominal Outer Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
1??2??0.75	0.6	1.1	1.2	1	14.1??2	236
2??2??0.75	0.6	1.1	1.3	1	18.7??2	425
3??2??0.75	0.6	1.1	1.4	1	19.5??2	567
4??2??0.75	0.6	1.1	1.4	1	20.6??2	641
5??2??0.75	0.6	1.1	1.5	1	22.2??2	740
6??2??0.75	0.6	1.1	1.5	1	23.7??2	845
7??2??0.75	0.6	1.1	1.5	1	23.7??2	872
8??2??0.75	0.6	1.1	1.6	1	25.6??2	950
9??2??0.75	0.6	1.1	1.7	1	27.1??2	1050
10??2??0.75	0.6	1.1	1.7	1	28.2??2	1082
12??2??0.75	0.6	1.1	1.7	1	28.8??2	1202
14??2??0.75	0.6	1.1	1.8	1	30.2??2	1265
15??2??0.75	0.6	1.1	1.8	1	32.0??2	1370
16??2??0.75	0.6	1.1	1.9	1	32.6??2	1486
18??2??0.75	0.6	1.1	1.9	1	34.1??2	1549
19??2??0.75	0.6	1.2	1.9	1	34.7??2	1654
20??2??0.75	0.6	1.2	2	1	36.1??2	1785
21??2??0.75	0.6	1.2	2	1	37.0??2	1853
23??2??0.75	0.6	1.2	2	1	37.5??2	1990
24??2??0.75	0.6	1.2	2.1	1	39.7??2	2079
27??2??0.75	0.6	1.2	2.2	1	40.7??2	2273
30??2??0.75	0.6	1.2	2.2	1	41.9??2	2452
33??2??0.75	0.6	1.2	2.3	1	43.5??2	2662
37??2??0.75	0.6	1.2	2.3	1	44.7??2	2861
1??3??0.75	0.6	1.1	1.1	1	13.9??2	257
2??3??0.75	0.6	1.1	1.4	1	17.5??2	441
3??3??0.75	0.6	1.1	1.4	1	20.4??2	609
4??3??0.75	0.6	1.1	1.4	1	21.7??2	709
7??3??0.75	0.6	1.1	1.6	1	25.6??2	1008
8??3??0.75	0.6	1.1	1.7	1	27.0??2	1029
12??3??0.75	0.6	1.3	1.8	1	31.6??2	1507
16??3??0.75	0.6	1.4	1.9	1	34.6??2	1859
19??3??0.75	0.6	1.4	2.1	1	36.4??2	2084
24??3??0.75	0.6	1.8	2.2	1	41.6??2	2709
1??2??1.0	0.6	1.1	1.2	1	14.5??2	257
2??2??1.0	0.6	1.1	1.4	1	19.6??2	473
3??2??1.0	0.6	1.1	1.4	1	20.3??2	630
4??2??1.0	0.6	1.1	1.4	1	21.3??2	656
5??2??1.0	0.6	1.1	1.5	1	23.1??2	966
6??2??1.0	0.6	1.1	1.6	1	24.8??2	998
7??2??1.0	0.6	1.1	1.6	1	24.8??2	903
8??2??1.0	0.6	1.1	1.6	1	26.7??2	1034
9??2??1.0	0.6	1.1	1.7	1	28.3??2	1192
10??2??1.0	0.6	1.1	1.7	1	29.4??2	1229
12??2??1.0	0.6	1.1	1.8	1	30.3??2	1365
14??2??1.0	0.6	1.1	1.8	1	31.5??2	1449
15??2??1.0	0.6	1.1	1.9	1	33.6??2	1586
16??2??1.0	0.6	1.1	1.9	1	34.1??2	1701
18??2??1.0	0.6	1.2	2	1	36.2??2	1832
19??2??1.0	0.6	1.2	2	1	36.5??2	1922
20??2??1.0	0.6	1.2	2.1	1	38.0??2	2074
21??2??1.0	0.6	1.2	2.1	1	39.3??2	2242
23??2??1.0	0.6	1.2	2.1	1	39.9??2	2410
24??2??1.0	0.6	1.2	2.2	1	41.8??2	2452
27??2??1.0	0.6	1.2	2.2	1	42.6??2	2625
30??2??1.0	0.6	1.2	2.3	1	44.1??2	2856
33??2??1.0	0.6	1.2	2.3	1	45.6??2	3087
37??2??1.0	0.6	1.4	2.4	1	47.4??2	3392
1??3??1.0	0.6	1.1	1.2	1	14.6??2	289
2??3??1.0	0.6	1.1	1.4	1	20.8??2	672
3??3??1.0	0.6	1.1	1.5	1	21.3??2	698
4??3??1.0	0.6	1.1	1.5	1	22.9??2	814
5??3??1.0	0.6	1.1	1.6	1	24.8??2	1013
6??3??1.0	0.6	1.1	1.7	1	27.4??2	1192
7??3??1.0	0.6	1.1	1.7	1	27.4??2	1239
8??3??1.0	0.6	1.1	1.7	1	29.0??2	1334
9??3??1.0	0.6	1.1	1.8	1	30.9??2	1523
10??3??1.0	0.6	1.1	1.9	1	33.1??2	1528
12??3??1.0	0.6	1.1	1.9	1	34.0??2	1769
14??3??1.0	0.6	1.2	2	1	35.8??2	1911
15??3??1.0	0.6	1.2	2	1	36.8??2	2032
16??3??1.0	0.6	1.2	2.1	1	38.0??2	2210
18??3??1.0	0.6	1.2	2.1	1	40.1??2	2426
19??3??1.0	0.6	1.2	2.2	1	40.6??2	2473
20??3??1.0	0.6	1.2	2.2	1	41.6??2	2720
21??3??1.0	0.6	1.2	2.2	1	42.4??2	2819
23??3??1.0	0.6	1.2	2.3	1	44.0??2	3082
24??3??1.0	0.6	1.2	2.3	1	44.8??2	3302
27??3??1.0	0.6	1.4	2.4	1	47.3??2	3418
30??3??1.0	0.6	1.4	2.5	1	49.4??2	3743
32??3??1.0	0.6	1.4	2.5	1	50.6??2	3943
1??2??1.5	0.7	1.1	1.2	1	15.5??2	310
2??2??1.5	0.7	1.1	1.4	1	21.2??2	572
3??2??1.5	0.7	1.1	1.5	1	22.2??2	761
4??2??1.5	0.7	1.1	1.5	1	23.5??2	809
5??2??1.5	0.7	1.1	1.6	1	25.4??2	1024
6??2??1.5	0.7	1.1	1.7	1	27.4??2	1187
7??2??1.5	0.7	1.1	1.7	1	27.4??2	1229
8??2??1.5	0.7	1.1	1.7	1	29.5??2	1286
9??2??1.5	0.7	1.1	1.8	1	31.4??2	1475
10??2??1.5	0.7	1.1	1.9	1	32.9??2	1512
12??2??1.5	0.7	1.1	1.9	1	33.6??2	1764
14??2??1.5	0.7	1.2	2	1	35.6??2	1838
15??2??1.5	0.7	1.2	2.1	1	38.0??2	2006
16??2??1.5	0.7	1.2	2.1	1	38.9??2	2158
18??2??1.5	0.7	1.2	2.2	1	40.9??2	2373
19??2??1.5	0.7	1.2	2.2	1	41.3??2	2515
20??2??1.5	0.7	1.2	2.2	1	42.8??2	2667
21??2??1.5	0.7	1.2	2.3	1	44.1??2	2793
23??2??1.5	0.7	1.2	2.3	1	44.7??2	3008
24??2??1.5	0.7	1.4	2.4	1	47.2??2	3234
27??2??1.5	0.7	1.4	2.4	1	48.1??2	3313
30??2??1.5	0.7	1.4	2.5	1	49.8??2	3612
32??2??1.5	0.7	1.4	2.6	1	51.0??2	3869
33??2??1.5	0.7	1.4	2.6	1	51.7??2	3927
37??2??1.5	0.7	1.4	2.6	1	53.2??2	4242
1??3??1.5	0.7	1.1	1.3	1	15.6??2	341
2??3??1.5	0.7	1.1	1.5	1	20.5??2	588
3??3??1.5	0.7	1.1	1.5	1	23.4??2	840
4??3??1.5	0.7	1.1	1.6	1	25.7??2	1024
5??3??1.5	0.7	1.1	1.7	1	27.4??2	1255
6??3??1.5	0.7	1.1	1.8	1	30.3??2	1475
7??3??1.5	0.7	1.1	1.8	1	30.3??2	1544
8??3??1.5	0.7	1.1	1.8	1	32.2??2	1664
9??3??1.5	0.7	1.2	1.9	1	34.6??2	1927
10??3??1.5	0.7	1.2	2	1	37.1??2	2032
12??3??1.5	0.7	1.2	2.1	1	38.8??2	2221
14??3??1.5	0.7	1.2	2.1	1	40.3??2	2478
15??3??1.5	0.7	1.2	2.2	1	41.7??2	2657
16??3??1.5	0.7	1.2	2.2	1	42.8??2	2914
18??3??1.5	0.7	1.2	2.3	1	44.9??2	3050
19??3??1.5	0.7	1.2	2.3	1	45.3??2	3360
20??3??1.5	0.7	1.4	2.4	1	46.9??2	3470
21??3??1.5	0.7	1.4	2.4	1	47.8??2	3602
23??3??1.5	0.7	1.4	2.5	1	49.7??2	3943
24??3??1.5	0.7	1.4	2.5	1	50.6??2	4121
27??3??1.5	0.7	1.4	2.6	1	53.1??2	4321
30??3??1.5	0.7	1.4	2.7	1	55.5??2	4736
32??3??1.5	0.7	1.6	2.8	1	57.5??2	5093
1??2??2.5	0.7	1.1	1.3	1	16.0??2	357
2??2??2.5	0.7	1.1	1.5	1	20.5??2	588
3??2??2.5	0.7	1.1	1.5	1	23.6??2	908
4??2??2.5	0.7	1.1	1.6	1	25.2??2	1061
5??2??2.5	0.7	1.1	1.7	1	27.3??2	1244
6??2??2.5	0.7	1.1	1.7	1	29.4??2	1439
7??2??2.5	0.7	1.1	1.7	1	29.4??2	1502
8??2??2.5	0.7	1.1	1.8	1	31.9??2	1638
9??2??2.5	0.7	1.1	1.9	1	33.9??2	1869
10??2??2.5	0.7	1.2	2	1	35.8??2	1864
12??2??2.5	0.7	1.2	2	1	36.6??2	2063
14??2??2.5	0.7	1.2	2.1	1	38.9??2	2389
15??2??2.5	0.7	1.2	2.2	1	41.5??2	2604
16??2??2.5	0.7	1.2	2.2	1	42.1??2	2720
18??2??2.5	0.7	1.2	2.3	1	44.3??2	2966
19??2??2.5	0.7	1.2	2.3	1	44.7??2	3077
20??2??2.5	0.7	1.4	2.4	1	46.8??2	3402
21??2??2.5	0.7	1.4	2.4	1	48.1??2	3544
23??2??2.5	0.7	1.4	2.5	1	48.9??2	3738
24??2??2.5	0.7	1.4	2.5	1	51.1??2	3843
27??2??2.5	0.7	1.4	2.6	1	52.3??2	4200
30??2??2.5	0.7	1.4	2.7	1	54.2??2	4589
33??2??2.5	0.7	1.4	2.7	1	56.1??2	4972
37??2??2.5	0.7	1.6	2.8	1	58.4??2	5486
1??3??2.5	0.7	1.1	1.2	1	16.5??2	399
2??3??2.5	0.7	1.1	1.6	1	24.5??2	998
3??3??2.5	0.7	1.1	1.6	1	25.4??2	1108
4??3??2.5	0.7	1.1	1.7	1	27.3??2	1313
5??3??2.5	0.7	1.1	1.7	1	29.4??2	1533
6??3??2.5	0.7	1.1	1.9	1	32.7??2	1822
7??3??2.5	0.7	1.1	1.9	1	32.7??2	1922
8??3??2.5	0.7	1.2	2	1	35.3??2	2126
9??3??2.5	0.7	1.2	2	1	37.4??2	2405
10??3??2.5	0.7	1.2	2.2	1	40.8??2	2525
12??3??2.5	0.7	1.2	2.2	1	42.0??2	2819
14??3??2.5	0.7	1.2	2.3	1	43.9??2	3150
15??3??2.5	0.7	1.2	2.3	1	45.1??2	3350
16??3??2.5	0.7	1.4	2.4	1	46.9??2	3591
18??3??2.5	0.7	1.4	2.5	1	49.2??2	3927
19??3??2.5	0.7	1.4	2.5	1	49.6??2	4079
20??3??2.5	0.7	1.4	2.5	1	50.9??2	4394
21??3??2.5	0.7	1.4	2.6	1	52.0??2	4589
23??3??2.5	0.7	1.4	2.7	1	54.1??2	4998
24??3??2.5	0.7	1.4	2.7	1	55.0??2	5024
27??3??2.5	0.7	1.6	2.8	1	58.2??2	5602
30??3??2.5	0.7	1.6	2.9	1	60.8??2	6148
32??3??2.5	0.7	1.6	3	1	62.6??2	6526
