Water Blocked S11 RU(i) 250 V

Applications

Water Blocked S11 RU(i) 250 V unarmoured cables are partially water blocked, flame retardant, low smoke and halogen free, used for instrumentation, communication, control and alarm systems.

Standards

• IEC 60092-376	IEC 60092-351
  IEC 60092-359	IEC 60332-1
  IEC 60332-3-22	IEC 60754-1,2
  IEC 61034-1,2	NEK 606:2004
  VG 95218 part 29

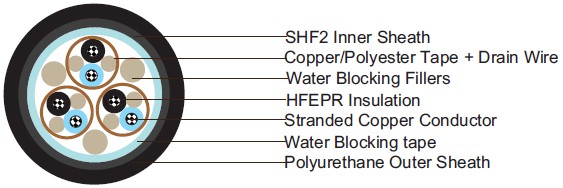

Construction

• l???? Conductors: Circular tinned annealed stranded copper wire to IEC 60228 class 2.
  l???? Insulation: Halogen free EPR compound.
  l???? Twinning: Colour coded cores twisted together.
  l???? Filler: Water blocking fillers, if required.
  l???? Individual Shielding: Each pairs/triples are screened by copper backed polyester tape in contact with a stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
  l???? Filler: Water blocking fillers, if required.
  l???? Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
  l???? Inner Sheath: Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).
  l???? Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.

Electrical Characteristics

• Nominal Cross Section Area	mm2	0.75	1.0	1.5	2.5
  Nominal Conductor Diameter	mm	1.1	1.3	1.6	2.0
  Maximum Resistant@20??	??/km	26.3	19.3	12.9	8.02
  Mutual Capacitance	nF/km	90	100	110	120
  Nominal Inductance@1KHz	MH/km	0.686	0.649	0.637	0.598
  Maximum L/R@1KHz	??H/??	20	25	35	50
  Operating Voltage	V	250	250	250	250

Mechanical and Thermal Properties

• Bending Radius : 8??OD (during installation); 6??OD (fixed installed).
• Temperature Range : -20?? ~ +90??.

Dimensions and Weight

Construction No. of elements??No. of cores in element??Cross section (mm2)	Nominal Insulation Thickness mm	Nominal Inner Sheath Thickness mm	Nominal Outer Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
1??2??0.75	0.6	1	1	9.6??2	100
2??2??0.75	0.6	1.1	1	11.7??2	189
4??2??0.75	0.6	1.2	1	14.1??2	268
7??2??0.75	0.6	1.3	1	16.4??2	399
8??2??0.75	0.6	1.3	1	17.6??2	446
12??2??0.75	0.6	1.5	1	21.0??2	641
16??2??0.75	0.6	1.5	1	23.0??2	824
19??2??0.75	0.6	1.6	1	24.4??2	940
24??2??0.75	0.6	1.7	1	27.6??2	1192
32??2??0.75	0.6	1.8	1	30.4??2	1512
1??3??0.75	0.6	1	1	10.0??2	116
2??3??0.75	0.6	1.2	1	13.0??2	189
3??3??0.75	0.6	1.2	1	14.7??2	278
4??3??0.75	0.6	1.2	1	15.8??2	341
7??3??0.75	0.6	1.4	1	18.7??2	525
8??3??0.75	0.6	1.4	1	20.0??2	567
12??3??0.75	0.6	1.6	1	24.2??2	856
16??3??0.75	0.6	1.6	1	26.7??2	1097
19??3??0.75	0.6	1.7	1	28.2??2	1265
24??3??0.75	0.6	1.9	1	32.5??2	1622
1??2??1.0	0.6	1	1	10.1??2	116
2??2??1.0	0.6	1.1	1	12.4??2	226
4??2??1.0	0.6	1.2	1	14.9??2	326
7??2??1.0	0.6	1.4	1	17.5??2	499
8??2??1.0	0.6	1.4	1	19.0??2	567
12??2??1.0	0.6	1.5	1	22.5??2	798
16??2??1.0	0.6	1.5	1	24.9??2	1045
19??2??1.0	0.6	1.7	1	26.1??2	1192
24??2??1.0	0.6	1.8	1	29.8??2	1523
32??2??1.0	0.6	1.9	1	32.8??2	1943
1??3??1.0	0.6	1	1	10.5??2	131
3??3??1.0	0.6	1.3	1	15.4??2	336
4??3??1.0	0.6	1.3	1	16.8??2	415
7??3??1.0	0.6	1.5	1	19.9??2	646
12??3??1.0	0.6	1.6	1	25.7??2	1040
16??3??1.0	0.6	1.7	1	28.5??2	1360
19??3??1.0	0.6	1.8	1	30.0??2	1549
24??3??1.0	0.6	2	1	34.6??2	1995
1??2??1.5	0.7	1	1	11.1??2	147
2??2??1.5	0.7	1.2	1	13.7??2	294
4??2??1.5	0.7	1.3	1	16.9??2	431
7??2??1.5	0.7	1.5	1	20.0??2	667
8??2??1.5	0.7	1.5	1	21.7??2	756
12??2??1.5	0.7	1.6	1	25.8??2	1066
16??2??1.5	0.7	1.6	1	28.6??2	1397
19??2??1.5	0.7	1.9	1	30.3??2	1601
24??2??1.5	0.7	2	1	34.6??2	2042
32??2??1.5	0.7	2.2	1	38.1??2	2599
1??3??1.5	0.7	1	1	11.5??2	168
2??3??1.5	0.7	1.3	1	16.0??2	299
3??3??1.5	0.7	1.3	1	17.5??2	446
4??3??1.5	0.7	1.3	1	19.0??2	551
7??3??1.5	0.7	1.6	1	22.9??2	872
8??3??1.5	0.7	1.6	1	24.5??2	945
12??3??1.5	0.7	1.8	1	29.6??2	1407
16??3??1.5	0.7	1.9	1	33.1??2	1859
19??3??1.5	0.7	2	1	34.8??2	2121
24??3??1.5	0.7	2.2	1	40.4??2	2741
1??2??2.5	0.7	1	1	11.8??2	184
1??3??2.5	0.7	1.2	1	12.4??2	215
