Water Blocked S12 RU(c) 250V

Applications

Water Blocked S12 RU(c) 250 V cables are flame retardant, low smoke and halogen free, used for living, quarter and office areas.

Standards
IEC 60092-376 IEC 60092-351
IEC 60092-359 IEC 60332-1
IEC 60332-3-22 IEC 60754-1,2
IEC 61034-1,2 NEK 606:2004
VG 95218 part 29

Water Blocked S12 RU(c) 250 V

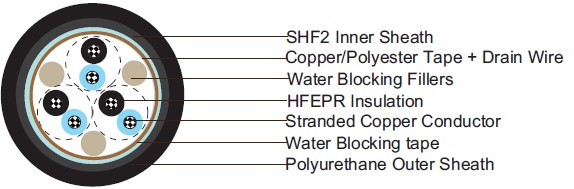

Construction
  • l??? Conductors: Circular tinned annealed stranded copper wire to IEC 60228 class 2.
    l??? Insulation: Halogen free EPR compound.
    l??? Twinning: Colour coded cores twisted together.
    l??? Filler: Water blocking fillers, if required.
    l??? Collective Shielding: Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
    l??? Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
    l??? Inner Sheath: Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).
    l??? Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.

Electrical Characteristics
  • Nominal Cross Section Area mm2 0.75 1.0 1.5
    Nominal Conductor Diameter mm 1.1 1.3 1.6
    Maximum Resistant@20?? ??/km 26.3 19.3 12.9
    Mutual Capacitance nF/km 80 90 100
    Nominal Inductance@1KHz MH/km 0.682 0.645 0.632
    Maximum L/R@1KHz ??H/?? 20 25 35
    Operating Voltage V 250 250 250
Mechanical and Thermal Properties
  • Bending Radius : 8??OD (during installation); 6??OD (fixed installed).
  • Temperature Range : -20?? ~ +90??.
Dimensions and Weight
Construction No. of elements??No. of cores in element??Cross section (mm2) Nominal Insulation Thickness mm Nominal Inner Sheath Thickness mm Nominal Outer Sheath Thickness mm Nominal Overall Diameter mm Nominal Weight kg/km
2??2??0.75 0.6 1.1 1 11.4??2 168
4??2??0.75 0.6 1.1 1 13.5??2 226
7??2??0.75 0.6 1.3 1 15.6??2 315
8??2??0.75 0.6 1.3 1 16.7??2 357
12??2??0.75 0.6 1.4 1 19.6??2 488
16??2??0.75 0.6 1.5 1 21.7??2 625
19??2??0.75 0.6 1.5 1 22.7??2 698
24??2??0.75 0.6 1.7 1 26.1??2 893
32??2??0.75 0.6 2 1 28.7??2 1118
2??3??0.75 0.6 1.1 1 13.0??2 179
3??3??0.75 0.6 1.1 1 14.1??2 247
4??3??0.75 0.6 1.2 1 15.1??2 294
7??3??0.75 0.6 1.4 1 17.7??2 431
8??3??0.75 0.6 1.4 1 19.5??2 515
12??3??0.75 0.6 1.5 1 22.6??2 677
16??3??0.75 0.6 1.6 1 25.1??2 877
19??3??0.75 0.6 1.7 1 26.3??2 987
24??3??0.75 0.6 1.8 1 30.2??2 1271
2??2??1.0 0.6 1.1 1 11.9??2 200
4??2??1.0 0.6 1.1 1 14.3??2 268
7??2??1.0 0.6 1.3 1 16.7??2 389
8??2??1.0 0.6 1.3 1 17.7??2 431
12??2??1.0 0.6 1.5 1 20.9??2 593
16??2??1.0 0.6 1.6 1 23.1??2 767
19??2??1.0 0.6 1.7 1 24.5??2 872
24??2??1.0 0.6 1.8 1 27.9??2 1103
32??2??1.0 0.6 2.1 1 30.7??2 1381
3??3??1.0 0.6 1.1 1 14.9??2 294
4??3??1.0 0.6 1.3 1 16.0??2 352
7??3??1.0 0.6 1.5 1 18.9??2 525
12??3??1.0 0.6 1.6 1 24.1??2 835
16??3??1.0 0.6 1.6 1 26.8??2 1076
19??3??1.0 0.6 1.8 1 28.3??2 1234
24??3??1.0 0.6 2 1 32.4??2 1565
2??2??1.5 0.7 1.2 1 13.3??2 263
4??2??1.5 0.7 1.2 1 16.1??2 362
7??2??1.5 0.7 1.4 1 19.2??2 541
8??2??1.5 0.7 1.4 1 20.4??2 604
12??2??1.5 0.7 1.6 1 24.4??2 851
16??2??1.5 0.7 1.7 1 27.0??2 1097
19??2??1.5 0.7 1.8 1 28.4??2 1234
24??2??1.5 0.7 1.9 1 32.7??2 1580
32??2??1.5 0.7 2.2 1 35.9??2 1985
2??3??1.5 0.7 1.2 1 15.5??2 278
3??3??1.5 0.7 1.2 1 16.9??2 399
4??3??1.5 0.7 1.3 1 18.3??2 488
7??3??1.5 0.7 1.5 1 21.8??2 740
8??3??1.5 0.7 1.5 1 23.5??2 861
12??3??1.5 0.7 1.7 1 28.2??2 1197
16??3??1.5 0.7 1.8 1 31.4??2 1549
19??3??1.5 0.7 1.9 1 32.9??2 1759
24??3??1.5 0.7 2.1 1 38.2??2 2268
