Water Blocked S13 BU(i) 250 V

Applications

Water Blocked S13 BU(i) 250 V cables are fire resistant, flame retardant, low smoke, halogen free and mud resistant, used for instrumentation, communication, control and alarm systems.

Standards

• IEC 60092-376	IEC 60092-351
  IEC 60092-359	IEC 60332-1
  IEC 60332-3-22	IEC 60754-1,2
  IEC 61034-1,2	NEK 606:2004
  IEC 60331-21	VG 95218 part 29?

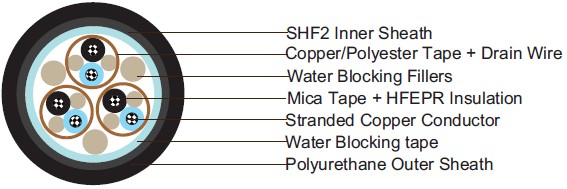

Construction

• l???? Conductors: Circular tinned annealed stranded copper wire to IEC 60228 class 2.
  l???? Insulation: Mica tape + Halogen free EPR compound.
  l???? Twinning: Colour coded cores twisted together.
  l???? Filler: Water blocking fillers, if required.
  l???? Individual Shielding: Each pairs/triples are screened by copper backed polyester tape in contact with a stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
  l???? Filler: Water blocking fillers, if required.
  l???? Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
  l???? Inner Sheath: Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).
  l???? Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.

Electrical Characteristics

• Nominal Cross Section Area	mm2	0.75	1.0	1.5	2.5
  Nominal Conductor Diameter	mm	1.1	1.3	1.6	2.0
  Maximum Resistant@20??	??/km	26.3	19.3	12.9	8.02
  Mutual Capacitance	nF/km	85	95	100	110
  Nominal Inductance@1KHz	MH/km	0.731	0.691	0.673	0.629
  Maximum L/R@1KHz	??H/??	20	25	35	55
  Operating Voltage	V	250	250	250	250

Mechanical and Thermal Properties

• Bending Radius : 8??OD (during installation); 6??OD (fixed installed).
• Temperature Range : -20?? ~ +90??.

Dimensions and Weight

Construction No. of elements??No. of cores in element??Cross section (mm2)	Nominal Insulation Thickness mm	Nominal Inner Sheath Thickness mm	Nominal Outer Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
1??2??0.75	0.6	1	1	10.2??2	110
2??2??0.75	0.6	1.2	1	12.5??2	215
4??2??0.75	0.6	1.2	1	15.2??2	305
7??2??0.75	0.6	1.4	1	18.0??2	467
8??2??0.75	0.6	1.4	1	19.3??2	520
12??2??0.75	0.6	1.6	1	23.1??2	740
16??2??0.75	0.6	1.7	1	25.5??2	961
19??2??0.75	0.6	1.8	1	26.8??2	1087
24??2??0.75	0.6	1.9	1	30.6??2	1386
32??2??0.75	0.6	2	1	33.7??2	1754
1??3??0.75	0.6	1	1	10.6??2	126
2??3??0.75	0.6	1.2	1	14.0??2	215
3??3??0.75	0.6	1.2	1	15.8??2	315
4??3??0.75	0.6	1.3	1	17.1??2	383
7??3??0.75	0.6	1.5	1	20.3??2	588
8??3??0.75	0.6	1.5	1	21.5??2	683
12??3??0.75	0.6	1.7	1	26.4??2	961
16??3??0.75	0.6	1.8	1	29.3??2	1244
19??3??0.75	0.6	1.9	1	31.0??2	1428
24??3??0.75	0.6	2.1	1	35.7??2	1838
1??2??1.0	0.6	1	1	10.6??2	131
2??2??1.0	0.6	1.2	1	13.1??2	252
4??2??1.0	0.6	1.3	1	16.0??2	362
7??2??1.0	0.6	1.5	1	18.9??2	551
8??2??1.0	0.6	1.5	1	20.5??2	630
12??2??1.0	0.6	1.6	1	24.3??2	882
16??2??1.0	0.6	1.6	1	26.9??2	1150
19??2??1.0	0.6	1.8	1	28.5??2	1318
24??2??1.0	0.6	1.9	1	32.5??2	1685
32??2??1.0	0.6	2	1	35.8??2	2132
1??3??1.0	0.6	1	1	11.1??2	147
3??3??1.0	0.6	1.3	1	16.7??2	378
4??3??1.0	0.6	1.3	1	18.1??2	462
7??3??1.0	0.6	1.6	1	21.7??2	730
12??3??1.0	0.6	1.7	1	28.0??2	1171
16??3??1.0	0.6	1.8	1	31.2??2	1528
19??3??1.0	0.6	1.9	1	33.0??2	1759
24??3??1.0	0.6	2.1	1	38.1??2	2252
1??2??1.5	0.7	1	1	11.6??2	163
2??2??1.5	0.7	1.3	1	14.6??2	326
4??2??1.5	0.7	1.4	1	18.1??2	473
7??2??1.5	0.7	1.6	1	21.4??2	725
8??2??1.5	0.7	1.6	1	23.3??2	819
12??2??1.5	0.7	1.7	1	27.7??2	1155
16??2??1.5	0.7	1.9	1	30.9??2	1523
19??2??1.5	0.7	2	1	32.5??2	1727
24??2??1.5	0.7	2.2	1	37.3??2	2221
32??2??1.5	0.7	2.3	1	41.1??2	2814
1??3??1.5	0.7	1.1	1	12.1??2	184
2??3??1.5	0.7	1.3	1	16.5??2	336
3??3??1.5	0.7	1.3	1	18.8??2	494
4??3??1.5	0.7	1.4	1	20.4??2	609
7??3??1.5	0.7	1.7	1	24.6??2	956
8??3??1.5	0.7	1.7	1	25.5??2	1082
12??3??1.5	0.7	1.9	1	32.0??2	1549
16??3??1.5	0.7	2	1	35.6??2	2021
19??3??1.5	0.7	2.1	1	37.7??2	2321
24??3??1.5	0.7	2.4	1	43.7??2	2998
1??2??2.5	0.7	1.1	1	12.5??2	200
1??3??2.5	0.7	1.3	1	13.0??2	231
