S11 RU(i) 250 V

Applications

NEK606 standard S11 RU(i) 250 V unarmoured cables are flame retardant, low smoke and halogen free, used for instrumentation, communication, control and alarm systems.

Standards

• IEC 60092-376
• IEC 60092-351
• IEC 60092-359
• IEC 60332-1
• IEC 60332-3-22
• IEC 60754-1,2
• IEC 61034-1,2
• NEK 606:2004

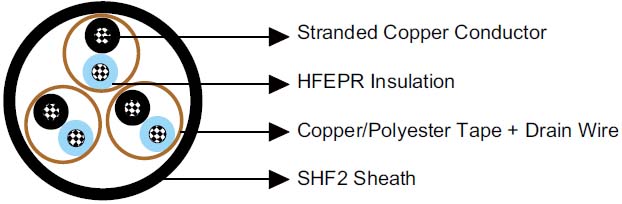

Construction



Conductors	Circular tinned annealed stranded copper wire to IEC 60228 class 2.
Insulation	Halogen free EPR compound.
Twinning	Colour coded cores twisted together.
Individual Shielding	Each pairs/triples are screened by copper backed polyester tape in contact with a stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
Outer Sheath	Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).

Electrical Characteristics

Nominal Cross Section Area	mm2	0.75	1.0	1.5	2.5
Nominal Conductor Diameter	mm	1.1	1.3	1.6	2.0
Maximum Resistant@20??	??/km	26.3	19.3	12.9	8.02
Mutual Capacitance	nF/km	90	100	110	120
Nominal Inductance@1KHz	MH/km	0.686	0.649	0.637	0.598
Maximum L/R@1KHz	??H/??	20	25	35	50
Operating Voltage	V	250	250	250	250

Mechanical and Thermal Properties

Bending Radius	8??OD (during installation)
	6??OD (fixed installed)
Temperature Range	-20?? ~ +90??

Dimensions and Weight

Construction No. of elements??No. of cores in element??Cross section(mm2)	Nominal Insulation Thickness (mm)	Nominal Sheath Thickness (mm)	Nominal Overall Diameter (mm)	Nominal Weight (kg/km)
1??2??0.75	0.6	1.0	7.6	95
2??2??0.75	0.6	1.1	9.7	180
4??2??0.75	0.6	1.2	12.1	255
7??2??0.75	0.6	1.3	14.4	380
8??2??0.75	0.6	1.3	15.6	425
12??2??0.75	0.6	1.5	19.0	610
16??2??0.75	0.6	1.5	21.0	785
19??2??0.75	0.6	1.6	22.4	895
24??2??0.75	0.6	1.7	25.6	1135
32??2??0.75	0.6	1.8	28.4	1440
1??3??0.75	0.6	1.0	8.0	110
2??3??0.75	0.6	1.2	11.0	180
3??3??0.75	0.6	1.2	12.7	265
4??3??0.75	0.6	1.2	13.8	325
7??3??0.75	0.6	1.4	16.7	500
8??3??0.75	0.6	1.4	18.0	540
12??3??0.75	0.6	1.6	22.2	815
16??3??0.75	0.6	1.6	24.7	1045
19??3??0.75	0.6	1.7	26.2	1205
24??3??0.75	0.6	1.9	30.5	1545
1??2??1.0	0.6	1.0	8.1	110
2??2??1.0	0.6	1.1	10.4	215
4??2??1.0	0.6	1.2	12.9	310
7??2??1.0	0.6	1.4	15.5	475
8??2??1.0	0.6	1.4	17.0	540
12??2??1.0	0.6	1.5	20.5	760
16??2??1.0	0.6	1.5	22.9	995
19??2??1.0	0.6	1.7	24.1	1135
24??2??1.0	0.6	1.8	27.8	1450
32??2??1.0	0.6	1.9	30.8	1850
1??3??1.0	0.6	1.0	8.5	125
3??3??1.0	0.6	1.3	13.4	320
4??3??1.0	0.6	1.3	14.8	395
7??3??1.0	0.6	1.5	17.9	615
12??3??1.0	0.6	1.6	23.7	990
16??3??1.0	0.6	1.7	26.5	1295
19??3??1.0	0.6	1.8	28.0	1475
24??3??1.0	0.6	2.0	32.6	1900
1??2??1.5	0.7	1.0	9.1	140
2??2??1.5	0.7	1.2	11.7	280
4??2??1.5	0.7	1.3	14.9	410
7??2??1.5	0.7	1.5	18.0	635
8??2??1.5	0.7	1.5	19.7	720
12??2??1.5	0.7	1.6	23.8	1015
16??2??1.5	0.7	1.6	26.6	1330
19??2??1.5	0.7	1.9	28.3	1525
24??2??1.5	0.7	2.0	32.6	1945
32??2??1.5	0.7	2.2	36.1	2475
1??3??1.5	0.7	1.0	9.5	160
2??3??1.5	0.7	1.3	14.0	285
3??3??1.5	0.7	1.3	15.5	425
4??3??1.5	0.7	1.3	17.0	525
7??3??1.5	0.7	1.6	20.9	830
8??3??1.5	0.7	1.6	22.5	900
12??3??1.5	0.7	1.8	27.6	1340
16??3??1.5	0.7	1.9	31.1	1770
19??3??1.5	0.7	2.0	32.8	2020
24??3??1.5	0.7	2.2	38.4	2610
1??2??2.5	0.7	1.0	9.8	175
1??3??2.5	0.7	1.2	10.4	205
