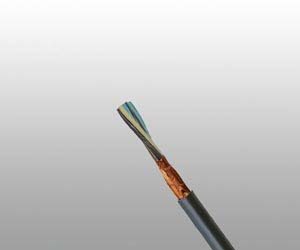

S12 RU(c) 250 V
Applications
Caledonian NEK606 standard S12 RU(c) 250 V unarmoured cables are flame retardant, low smoke and halogen free, used for instrumentation, communication, control and alarm systems.
Standards
- IEC 60092-376
- IEC 60092-351
- IEC 60092-359
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1,2
- IEC 61034-1,2
- NEK 606:2004
Construction
| Conductors |
Circular tinned annealed stranded copper wire to IEC 60228 class 2. |
| Insulation |
Halogen free EPR compound. |
| Twinning |
Colour coded cores twisted together. |
| Individual Shielding |
Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors. |
| Outer Sheath |
Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe). |
Electrical Characteristics
| Nominal Cross Section Area |
mm2 |
0.75 |
1.0 |
1.5 |
| Nominal Conductor Diameter |
mm |
1.1 |
1.3 |
1.6 |
| Maximum Resistant@20?? |
??/km |
26.3 |
19.3 |
12.9 |
| Mutual Capacitance |
nF/km |
80 |
90 |
100 |
| Nominal Inductance@1KHz |
MH/km |
0.682 |
0.645 |
0.632 |
| Maximum L/R@1KHz |
??H/?? |
20 |
25 |
35 |
| Operating Voltage |
V |
250 |
250 |
250 |
Mechanical and Thermal Properties
| Bending Radius |
8??OD (during installation) |
| |
6??OD (fixed installed) |
| Temperature Range |
-20?? ~ +90?? |
Dimensions and Weight
| Construction No. of elements??No. of cores in element??Cross section(mm2) |
Nominal Insulation Thickness (mm) |
Nominal Sheath Thickness (mm) |
Nominal Overall Diameter (mm) |
Nominal Weight (kg/km) |
| 2??2??0.75 |
0.6 |
1.1 |
9.4 |
160 |
| 4??2??0.75 |
0.6 |
1.1 |
11.5 |
215 |
| 7??2??0.75 |
0.6 |
1.3 |
13.6 |
300 |
| 8??2??0.75 |
0.6 |
1.3 |
14.7 |
340 |
| 12??2??0.75 |
0.6 |
1.4 |
17.6 |
465 |
| 16??2??0.75 |
0.6 |
1.5 |
19.7 |
595 |
| 19??2??0.75 |
0.6 |
1.5 |
20.7 |
665 |
| 24??2??0.75 |
0.6 |
1.7 |
24.1 |
850 |
| 32??2??0.75 |
0.6 |
2.0 |
26.7 |
1065 |
| 2??3??0.75 |
0.6 |
1.1 |
11.0 |
170 |
| 3??3??0.75 |
0.6 |
1.1 |
12.1 |
235 |
| 4??3??0.75 |
0.6 |
1.2 |
13.1 |
280 |
| 7??3??0.75 |
0.6 |
1.4 |
15.7 |
410 |
| 8??3??0.75 |
0.6 |
1.4 |
17.5 |
490 |
| 12??3??0.75 |
0.6 |
1.5 |
20.6 |
645 |
| 16??3??0.75 |
0.6 |
1.6 |
23.1 |
835 |
| 19??3??0.75 |
0.6 |
1.7 |
24.3 |
940 |
| 24??3??0.75 |
0.6 |
1.8 |
28.2 |
1210 |
| 2??2??1.0 |
0.6 |
1.1 |
9.9 |
190 |
| 4??2??1.0 |
0.6 |
1.1 |
12.3 |
255 |
| 7??2??1.0 |
0.6 |
1.3 |
14.7 |
370 |
| 8??2??1.0 |
0.6 |
1.3 |
15.7 |
410 |
| 12??2??1.0 |
0.6 |
1.5 |
18.9 |
565 |
| 16??2??1.0 |
0.6 |
1.6 |
21.1 |
730 |
| 19??2??1.0 |
0.6 |
1.7 |
22.5 |
830 |
| 24??2??1.0 |
0.6 |
1.8 |
25.9 |
1050 |
| 32??2??1.0 |
0.6 |
2.1 |
28.7 |
1315 |
| 3??3??1.0 |
0.6 |
1.1 |
12.9 |
280 |
| 4??3??1.0 |
0.6 |
1.3 |
14.0 |
335 |
| 7??3??1.0 |
0.6 |
1.5 |
16.9 |
500 |
| 12??3??1.0 |
0.6 |
1.6 |
22.1 |
795 |
| 16??3??1.0 |
0.6 |
1.6 |
24.8 |
1025 |
| 19??3??1.0 |
0.6 |
1.8 |
26.3 |
1175 |
| 24??3??1.0 |
0.6 |
2.0 |
30.4 |
1490 |
| 2??2??1.5 |
0.7 |
1.2 |
11.3 |
250 |
| 4??2??1.5 |
0.7 |
1.2 |
14.1 |
345 |
| 7??2??1.5 |
0.7 |
1.4 |
17.2 |
515 |
| 8??2??1.5 |
0.7 |
1.4 |
18.4 |
575 |
| 12??2??1.5 |
0.7 |
1.6 |
22.4 |
810 |
| 16??2??1.5 |
0.7 |
1.7 |
25.0 |
1045 |
| 19??2??1.5 |
0.7 |
1.8 |
26.4 |
1175 |
| 24??2??1.5 |
0.7 |
1.9 |
30.7 |
1505 |
| 32??2??1.5 |
0.7 |
2.2 |
33.9 |
1890 |
| 2??3??1.5 |
0.7 |
1.2 |
13.5 |
265 |
| 3??3??1.5 |
0.7 |
1.2 |
14.9 |
380 |
| 4??3??1.5 |
0.7 |
1.3 |
16.3 |
465 |
| 7??3??1.5 |
0.7 |
1.5 |
19.8 |
705 |
| 8??3??1.5 |
0.7 |
1.5 |
21.5 |
820 |
| 12??3??1.5 |
0.7 |
1.7 |
26.2 |
1140 |
| 16??3??1.5 |
0.7 |
1.8 |
29.4 |
1475 |
| 19??3??1.5 |
0.7 |
1.9 |
30.9 |
1675 |
| 24??3??1.5 |
0.7 |
2.1 |
36.2 |
2160 |
