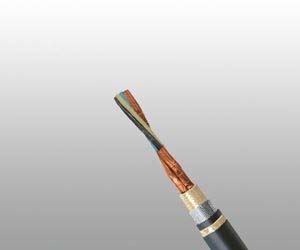

S15 BFOU-HCF(i) 250V
Applications
NEK606 standard S15 BFOU-HCF(i) 250V cables are fire resistant, flame retardant, low smoke and halogen free, used for emergency instrumentation, communication, control and alarm systems that need to be operational during a 1100??hydrocarbon fire.
Standards
- IEC 60092-376
- IEC 60092-351
- IEC 60092-359
- IEC 60331-21
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1,2
- IEC 61034-1,2
- NEK 606:2004
Construction
| Conductors |
Circular tinned annealed stranded copper wire to IEC 60228 class 2. |
| Insulation |
Mica tape + Halogen free EPR compound. |
| Twinning |
Colour coded cores twisted together. |
| Individual Shielding |
Each pairs/triples are screened by copper backed polyester tape in contact with a stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors. |
| Bedding |
Halogen free compound. |
| Armour |
Tinned copper wire braid. |
| Outer Sheath1 |
Halogen free thermosetting compound, SHF2. |
| HC-fire protection |
Extruded thermoplastic fire protection compound. |
| Taping |
Lapped glass fibre tape. |
| Outer Sheath2 |
Flame retardant halogen-free thermoplastic compound, type SHF1, coloured grey (blue for intrinsically safe). |
Electrical Characteristics
| Nominal Cross Section Area |
mm2 |
1.5 |
| Nominal Conductor Diameter |
mm |
1.6 |
| Maximum Resistant@20?? |
??/km |
12.9 |
| Mutual Capacitance |
nF/km |
100 |
| Nominal Inductance@1KHz |
MH/km |
0.673 |
| Operating Voltage |
V |
250 |
Mechanical and Thermal Properties
| Bending Radius |
20??OD (during installation) |
| |
12??OD (fixed installed) |
| Temperature Range |
-20?? ~ +90?? |
Dimensions and Weight
| Construction No. of elements??No. of cores in element??Cross section(mm2) |
Nominal Insulation Thickness (mm) |
Nominal Diameter Over Bedding (mm) |
Nominal Diameter Over Sheath1 (mm) |
Nominal Overall Diameter (mm) |
Nominal Weight (kg/km) |
| 1??2??1.5
|
0.7 |
9.0 |
13.1 |
39.5 |
1880 |
| 2??2??1.5
|
0.7 |
13.0 |
16.8 |
44.5 |
2450 |
| 4??2??1.5
|
0.7 |
15.0 |
20.7 |
47.5 |
2830 |
| 8??2??1.5
|
0.7 |
21.0 |
26.4 |
54.0 |
3690 |
| 12??2??1.5
|
0.7 |
25.0 |
31.2 |
63.0 |
5200 |
