S16 BFOU-HCF(c) 250 V

Applications

Caledonian NEK606 standard S16 BFOU-HCF(c) 250 V cables are fire resistant, flame retardant, low smoke and halogen free, used for emergency instrumentation, communication, control and alarm systems that need to be operational during a 1100??hydrocarbon fire.

Standards

• IEC 60092-376
• IEC 60092-351
• IEC 60092-359
• IEC 60331-21
• IEC 60332-1
• IEC 60332-3-22
• IEC 60754-1,2
• IEC 61034-1,2
• NEK 606:2004

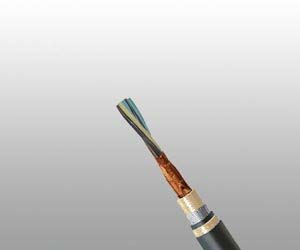

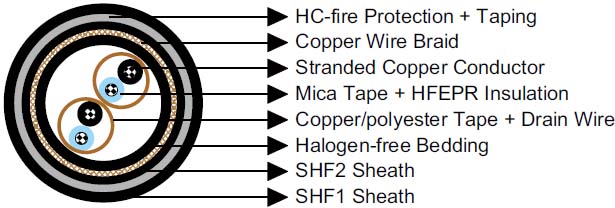

Construction

Conductors	Circular tinned stranded copper wire to IEC 60228 class 2.
Insulation	Mica tape + Halogen free EPR compound.
Twinning	Colour coded cores twisted together.
Collective Shielding	Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
Bedding	Halogen free compound.
Armour	Tinned copper wire braid.
Outer Sheath1	Halogen free thermosetting compound, SHF2.
HC-fire protection	Extruded thermoplastic fire protection compound.
Taping	Lapped glass fibre tape.
Outer Sheath2	Flame retardant halogen-free thermoplastic compound, type SHF1, coloured grey (blue for intrinsically safe).

Electrical Characteristics

Nominal Cross Section Area	mm2	1.5
Nominal Conductor Diameter	mm	1.6
Maximum Resistant@20??	??/km	12.9
Mutual Capacitance	nF/km	85
Nominal Inductance@1KHz	MH/km	0.667
Operating Voltage	V	250

Mechanical and Thermal Properties

Bending Radius	20??OD (during installation)
	12??OD (fixed installed)
Temperature Range	-20?? ~ +90??

Dimensions and Weight

Construction No. of elements??No. of cores in element??Cross section(mm2)	Nominal Insulation Thickness (mm)	Nominal Diameter Over Bedding (mm)	Nominal Diameter Over Sheath1 (mm)	Nominal Overall Diameter (mm)	Nominal Weight (kg/km)
2??2??1.5	0.7	13.0	16.4	44.5	2400
4??2??1.5	0.7	15.0	19.9	46.5	2650
8??2??1.5	0.7	20.5	25.3	53.0	3570
12??2??1.5	0.7	23.5	29.6	57.0	4160
