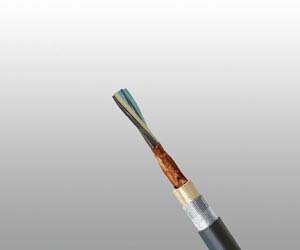

S2 or S2/S6 RFOU(c) 250V

Applications

These cables are flame retardant, low smoke, halogen free and mud resistant, used for instrumentation, communication, control and alarm systems.

Standards

• IEC 60092-353
• IEC 60092-351
• IEC 60092-359
• IEC 60332-1
• IEC 60332-3-22
• IEC 60754-1,2
• IEC 61034-1,2
• NEK 606:2004

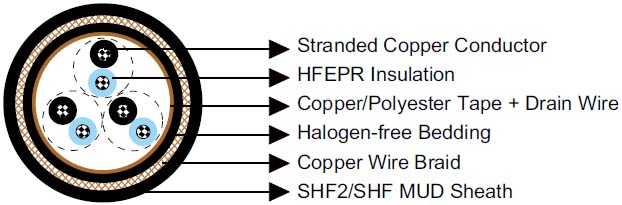

Construction



Conductors	Circular tinned annealed stranded copper wire to IEC 60228 class 2.
Insulation	Halogen free EPR compound.
Twinning	Colour coded cores twisted together.
Individual Shielding	Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
Bedding	Halogen free compound.
Armour	Tinned copper wire braid.
Outer Sheath	Halogen free thermosetting compound, SHF2 (for TYPE S2). Halogen free MUD resistant thermosetting compound, SHF MUD (for TYPE S2/S6), coloured grey (blue for intrinsically safe).

Electrical Characteristics

Nominal Cross Section Area	mm2	0.75	1.0	1.5	2.5
Nominal Conductor Diameter	mm	1.1	1.3	1.6	2.0
Maximum Resistant@20??	??/km	26.3	19.3	12.9	8.02
Mutual Capacitance	nF/km	80	90	100	110
Nominal Inductance@1KHz	MH/km	0.682	0.645	0.632	0.593
Maximum L/R@1KHz	??H/??	20	25	35	50
Operating Voltage	V	250	250	250	250

Mechanical and Thermal Properties

Bending Radius	8??OD (during installation)
	6??OD (fixed installed)
Temperature Range	-20?? ~ +90??

Dimensions and Weight

Construction No. of elements??No. of cores in element??Cross section(mm2)	Nominal Insulation Thickness (mm)	Nominal Sheath Thickness (mm)		Nominal Overall Diameter (mm)	Nominal Weight (kg/km)
		Inner	Outer
1??2??0.75	0.6	1.1	1.1	11.1	200
2??2??0.75	0.6	1.1	1.3	15.0	295
3??2??0.75	0.6	1.1	1.3	15.6	355
4??2??0.75	0.6	1.1	1.3	16.4	390
5??2??0.75	0.6	1.1	1.4	17.8	540
6??2??0.75	0.6	1.1	1.4	19.1	610
7??2??0.75	0.6	1.1	1.4	19.1	625
8??2??0.75	0.6	1.1	1.5	20.7	680
9??2??0.75	0.6	1.1	1.5	21.8	745
10??2??0.75	0.6	1.1	1.6	22.9	760
12??2??0.75	0.6	1.1	1.6	23.4	810
14??2??0.75	0.6	1.1	1.6	24.5	875
15??2??0.75	0.6	1.1	1.7	26.1	960
16??2??0.75	0.6	1.1	1.7	26.5	1010
18??2??0.75	0.6	1.1	1.8	27.9	1080
19??2??0.75	0.6	1.1	1.8	28.2	1115
20??2??0.75	0.6	1.1	1.8	29.2	1210
21??2??0.75	0.6	1.1	1.8	30.0	1255
23??2??0.75	0.6	1.1	1.9	30.6	1355
24??2??0.75	0.6	1.1	1.9	31.9	1370
27??2??0.75	0.6	1.2	1.9	32.9	1480
30??2??0.75	0.6	1.2	2.0	34.1	1605
33??2??0.75	0.6	1.2	2.0	35.3	1725
37??2??0.75	0.6	1.2	2.1	36.9	1950
1??3??0.75	0.6	1.1	1.2	11.7	230
2??3??0.75	0.6	1.1	1.3	14.5	360
3??3??0.75	0.6	1.1	1.3	16.2	415
4??3??0.75	0.6	1.1	1.4	17.6	540
5??3??0.75	0.6	1.1	1.4	19.1	645
6??3??0.75	0.6	1.1	1.5	21.1	755
7??3??0.75	0.6	1.1	1.5	21.1	780
8??3??0.75	0.6	1.1	1.6	22.6	845
9??3??0.75	0.6	1.1	1.6	23.9	945
10??3??0.75	0.6	1.1	1.7	25.7	960
12??3??0.75	0.6	1.1	1.7	26.4	1080
14??3??0.75	0.6	1.1	1.7	27.5	1150
15??3??0.75	0.6	1.1	1.8	28.5	1230
16??3??0.75	0.6	1.1	1.8	29.2	1310
18??3??0.75	0.6	1.1	1.9	30.7	1405
19??3??0.75	0.6	1.1	1.9	31.0	1475
20??3??0.75	0.6	1.1	1.9	31.8	1560
21??3??0.75	0.6	1.2	1.9	32.7	1640
23??3??0.75	0.6	1.2	2.0	34.1	1795
24??3??0.75	0.6	1.2	2.0	34.6	1830
27??3??0.75	0.6	1.2	2.1	36.8	2040
30??3??0.75	0.6	1.2	2.1	38.3.	2210
32??3??0.75	0.6	1.2	2.2	39.5	2345
1??2??1.0	0.6	1.1	1.2	11.7	225
2??2??1.0	0.6	1.1	1.3	13.4	335
3??2??1.0	0.6	1.1	1.3	16.3	470
4??2??1.0	0.6	1.1	1.4	17.4	535
5??2??1.0	0.6	1.1	1.4	18.7	610
6??2??1.0	0.6	1.1	1.5	20.2	700
7??2??1.0	0.6	1.1	1.5	20.2	720
8??2??1.0	0.6	1.1	1.5	21.8	775
9??2??1.0	0.6	1.1	1.6	23.2	850
10??2??1.0	0.6	1.1	1.6	24.1	880
12??2??1.0	0.6	1.1	1.6	24.7	980
14??2??1.0	0.6	1.1	1.7	26.0	1030
15??2??1.0	0.6	1.1	1.8	27.8	1125
16??2??1.0	0.6	1.1	1.8	28.2	1175
18??2??1.0	0.6	1.1	1.8	29.5	1255
19??2??1.0	0.6	1.1	1.8	29.8	1295
20??2??1.0	0.6	1.1	1.9	31.1	1420
21??2??1.0	0.6	1.1	1.9	31.9	1475
23??2??1.0	0.6	1.2	1.9	32.7	1610
24??2??1.0	0.6	1.2	2.0	34.3	1620
27??2??1.0	0.6	1.2	2.0	35.0	1745
30??2??1.0	0.6	1.2	2.1	36.7	1980
33??2??1.0	0.6	1.2	2.1	38.0	2130
37??2??1.0	0.6	1.2	2.2	39.3	2305
1??3??1.0	0.6	1.1	1.2	12.0	250
2??3??1.0	0.6	1.1	1.4	17.0	520
3??3??1.0	0.6	1.1	1.4	17.4	540
4??3??1.0	0.6	1.1	1.4	18.7	625
5??3??1.0	0.6	1.1	1.5	20.2	745
6??3??1.0	0.6	1.1	1.6	22.4	875
7??3??1.0	0.6	1.1	1.6	22.4	905
8??3??1.0	0.6	1.1	1.6	23.8	980
9??3??1.0	0.6	1.1	1.7	25.4	1080
10??3??1.0	0.6	1.1	1.7	27.1	1150
12??3??1.0	0.6	1.1	1.8	28.1	1265
14??3??1.0	0.6	1.1	1.8	29.2	1355
15??3??1.0	0.6	1.1	1.8	30.1	1440
16??3??1.0	0.6	1.1	1.9	31.1	1570
18??3??1.0	0.6	1.2	1.9	32.8	1675
19??3??1.0	0.6	1.2	2.0	33.3	1750
20??3??1.0	0.6	1.2	2.0	34.1	1880
21??3??1.0	0.6	1.2	2.0	34.8	1950
23??3??1.0	0.6	1.2	2.1	36.6	2215
24??3??1.0	0.6	1.2	2.1	37.3	2200
27??3??1.0	0.6	1.2	2.2	39.2	2425
30??3??1.0	0.6	1.2	2.2	40.8	2630
32??3??1.0	0.6	1.2	2.3	42.1	2790
1??2??1.5	0.7	1.1	1.2	12.7	260
2??2??1.5	0.7	1.1	1.4	15.4	420
3??2??1.5	0.7	1.1	1.4	17.6	585
4??2??1.5	0.7	1.1	1.4	18.8	635
5??2??1.5	0.7	1.1	1.5	21.1	770
6??2??1.5	0.7	1.1	1.6	22.8	890
7??2??1.5	0.7	1.1	1.6	22.8	925
8??2??1.5	0.7	1.1	1.6	23.7	975
9??2??1.5	0.7	1.1	1.7	26.3	1060
10??2??1.5	0.7	1.1	1.7	27.4	1130
12??2??1.5	0.7	1.1	1.8	28.3	1270
14??2??1.5	0.7	1.1	1.8	29.5	1325
15??2??1.5	0.7	1.1	1.9	31.6	1445
16??2??1.5	0.7	1.1	1.9	32.1	1575
18??2??1.5	0.7	1.2	2.0	34.2	1670
19??2??1.5	0.7	1.2	2.0	34.5	1765
20??2??1.5	0.7	1.2	2.1	36.0	1895
21??2??1.5	0.7	1.2	2.1	37.3	2050
23??2??1.5	0.7	1.2	2.1	37.9	2185
24??2??1.5	0.7	1.2	2.2	39.8	2200
27??2??1.5	0.7	1.2	2.2	40.6	2390
30??2??1.5	0.7	1.2	2.3	42.1	2600
33??2??1.5	0.7	1.2	2.3	43.6	2805
37??2??1.5	0.7	1.4	2.4	45.4	3080
1??3??1.5	0.7	1.1	1.2	13.2	295
2??3??1.5	0.7	1.1	1.4	17.0	490
3??3??1.5	0.7	1.1	1.5	19.5	685
4??3??1.5	0.7	1.1	1.5	20.9	785
5??3??1.5	0.7	1.1	1.6	21.0	820
6??3??1.5	0.7	1.1	1.7	22.8	960
7??3??1.5	0.7	1.1	1.7	25.1	1135
8??3??1.5	0.7	1.1	1.7	27.0	1270
9??3??1.5	0.7	1.1	1.8	28.9	1445
10??3??1.5	0.7	1.1	1.9	31.1	1450
12??3??1.5	0.7	1.1	1.9	31.5	1710
14??3??1.5	0.7	1.2	2.0	33.8	1815
15??3??1.5	0.7	1.2	2.0	34.8	1930
16??3??1.5	0.7	1.2	2.1	36.0	2110
18??3??1.5	0.7	1.2	2.1	38.1	2305
19??3??1.5	0.7	1.2	2.2	38.6	2375
20??3??1.5	0.7	1.2	2.2	39.6	2580
21??3??1.5	0.7	1.2	2.2	40.4	2680
23??3??1.5	0.7	1.2	2.3	42.0	2925
24??3??1.5	0.7	1.2	2.3	42.7	3140
27??3??1.5	0.7	1.4	2.4	45.3	3250
30??3??1.5	0.7	1.4	2.5	47.4	3555
32??3??1.5	0.7	1.4	2.5	48.6	3745
1??2??2.5	0.7	1.1	1.2	13.5	300
2??2??2.5	0.7	1.1	1.4	18.9	650
3??2??2.5	0.7	1.1	1.5	19.9	720
4??2??2.5	0.7	1.1	1.5	21.1	820
5??2??2.5	0.7	1.1	1.6	23.0	965
6??2??2.5	0.7	1.1	1.6	24.8	1105
7??2??2.5	0.7	1.1	1.6	24.8	1150
8??2??2.5	0.7	1.1	1.7	27.0	1255
9??2??2.5	0.7	1.1	1.8	28.8	1385
10??2??2.5	0.7	1.1	1.8	30.0	1430
12??2??2.5	0.7	1.3	1.9	31.0	1545
14??2??2.5	0.7	1.2	1.9	32.7	1730
15??2??2.5	0.7	1.2	2.0	35.0	1885
16??2??2.5	0.7	1.2	2.0	35.6	1970
18??2??2.5	0.7	1.2	2.1	37.9	2235
19??2??2.5	0.7	1.2	2.1	38.3	2315
20??2??2.5	0.7	1.2	2.2	39.9	2530
21??2??2.5	0.7	1.2	2.2	41.0	2630
23??2??2.5	0.7	1.2	2.3	41.8	2750
24??2??2.5	0.7	1.2	2.3	43.7	2850
27??2??2.5	0.7	1.4	2.4	45.1	3150
30??2??2.5	0.7	1.4	2.5	46.8	3435
33??2??2.5	0.7	1.4	2.5	48.5	3715
37??2??2.5	0.7	1.4	2.6	50.2	4040
1??3??2.5	0.7	1.1	1.3	14.3	360
2??3??2.5	0.7	1.1	1.5	20.5	785
3??3??2.5	0.7	1.1	1.5	21.2	875
4??3??2.5	0.7	1.1	1.6	22.9	1035
5??3??2.5	0.7	1.1	1.6	24.8	1205
6??3??2.5	0.7	1.1	1.8	27.8	1430
7??3??2.5	0.7	1.1	1.8	27.8	1505
8??3??2.5	0.7	1.1	1.8	29.6	1625
9??3??2.5	0.7	1.1	1.9	31.7	1855
10??3??2.5	0.7	1.2	2.0	34.4	1890
12??3??2.5	0.7	1.2	2.0	35.5	2110
14??3??2.5	0.7	1.2	2.1	37.6	2445
15??3??2.5	0.7	1.2	2.2	38.9	2620
16??3??2.5	0.7	1.2	2.2	40.0	2755
18??3??2.5	0.7	1.2	2.3	42.0	3010
19??3??2.5	0.7	1.2	2.3	42.4	3125
20??3??2.5	0.7	1.2	2.3	43.5	3360
21??3??2.5	0.7	1.4	2.4	44.9	3555
23??3??2.5	0.7	1.4	2.5	46.7	3885
24??3??2.5	0.7	1.4	2.5	47.5	3870
27??3??2.5	0.7	1.4	2.6	50.0	4280
30??3??2.5	0.7	1.4	2.7	52.3	4695
32??3??2.5	0.7	1.4	2.7	53.8	4960
