EN 50288-7 RE-2Y(st)HSWAH Pimf multi pair Cables
APPLICATION
The armoured LSZH sheathed cables are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for theinterconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.
STANDARDS
Basic design to EN 50288-7
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation(Vertically-mounted bundled wires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
| Sunlight Resistance | UL 1581 section 1200 |
| Oil Resistance | ICEA S-73-532** |
Note: Asterisk * denotes superseded standard, **Test temperature +60°C, duration 4h. Retention: min 60% of tensite strength/min.60% of elongation.
VOLTAGE RATING
300V

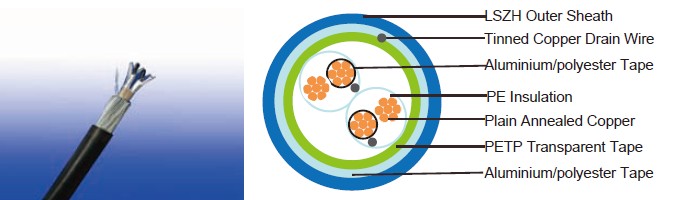

CABLE CONSTRUCTION
Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2. Insulation: PE compound, EN 50290. 2-23. Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mmIndividual Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm² Binder tape: PETP transparent tape Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm² Inner Sheath: LSZH(Low Smoke Zero Halogen) sheath Amouring: Galvanized steel wire armour Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.
COLOUR CODE
Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair. Outer Sheath: Black or blue for intrinsically safe systems
PHYSICAL and THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -20°C – +50°C
Minimum Bending Radius: 10 X Overall Diameter
ELETRICAL PROPERTIES
| Conductor Area Size | mm2 | 0.5 | 0.75 | 1.0 | 1.3 | 1.5 | |
| Insulation thickness (nominal) | mm | 0.4 | 0.4 | 0.4 | 0.45 | 0.45 | |
| Conductor resistance (20°C) | Ω/km | 36.7 | 25 | 18.5 | 14.2 | 12.3 | |
| Insulation resistance (20°C) | MΩ.km(Min.) | 5000 | |||||
| Mutual Capacitance (1 kHz) | pF/m(Max.) | 115 | |||||
| Inductance | mH/km (Max.) | 1 | |||||
| L / R (ratio) (max.) | μH/Ω | 25 | 25 | 25 | 40 | 40 | |
| Operating voltage Urms | V | 300 | |||||
| Test Voltage | Core to Core | V | 1500 | ||||
| Core to Screen | V | 1500 | |||||
CONSTRUCTION PARAMETERS
| Caledonian Cable Code | RE-2X(St)HSWAH PiMF | |||||||
|---|---|---|---|---|---|---|---|---|
| No. of Pairsx2 xCross Section | Nominal Insulation Thick -ness | Nominal Inner Sheath Thick -ness | Nominal Overall Diameter Over InnerSheath | Nominal Armour Wire Diameter | Nominal Outer Sheath Thick -ness | Nominal Overall Diameter | Approx. Weight | |
| No.x2xmm2 | mm | mm | mm | mm | mm | mm | kg/km | |
| 0.5mm2, Multipair | ||||||||
| RE-2X(St)HSWAH PiMF 2P0.5 | 2x2x0.5 | 0.35 | 0.9 | 8.7 | 0.9 | 1.4 | 13.3 | 311 |
| RE-2X(St)HSWAH PiMF 4P0.5 | 4x2x0.5 | 0.35 | 1.0 | 10.2 | 0.9 | 1.4 | 14.8 | 374 |
| RE-2X(St)HSWAH PiMF 5P0.5 | 5x2x0.5 | 0.35 | 1.0 | 11.2 | 0.9 | 1.4 | 15.8 | 451 |
| RE-2X(St)HSWAH PiMF 6P0.5 | 6x2x0.5 | 0.35 | 1.0 | 12.1 | 0.9 | 1.6 | 16.9 | 484 |
| RE-2X(St)HSWAH PiMF 8P0.5 | 8x2x0.5 | 0.35 | 1.1 | 13.1 | 0.9 | 1.6 | 17.9 | 563 |
| RE-2X(St)HSWAH PiMF 10P0.5 | 10x2x0.5 | 0.35 | 1.2 | 15.1 | 0.9 | 1.5 | 19.9 | 782 |
| RE-2X(St)HSWAH PiMF 12P0.5 | 12x2x0.5 | 0.35 | 1.2 | 15.7 | 0.9 | 1.5 | 20.5 | 804 |
| RE-2X(St)HSWAH PiMF 16P0.5 | 16x2x0.5 | 0.35 | 1.2 | 17.8 | 1.25 | 1.6 | 23.5 | 970 |
| RE-2X(St)HSWAH PiMF 20P0.5 | 20x2x0.5 | 0.35 | 1.3 | 19.7 | 1.25 | 1.7 | 25.6 | 1145 |
| RE-2X(St)HSWAH PiMF 24P0.5 | 24x2x0.5 | 0.35 | 1.4 | 21.5 | 1.25 | 1.7 | 27.4 | 1272 |
| 0.75mm2, Multipair | ||||||||
| RE-2X(St)HSWAH PiMF 2P0.75 | 2x2x0.75 | 0.38 | 1.0 | 9.7 | 0.9 | 1.4 | 14.3 | 342 |
| RE-2X(St)HSWAH PiMF 4P0.75 | 3x2x0.75 | 0.38 | 1.0 | 11.2 | 0.9 | 1.4 | 15.8 | 439 |
| RE-2X(St)HSWAH PiMF 5P0.75 | 4x2x0.75 | 0.38 | 1.1 | 12.5 | 0.9 | 1.5 | 17.3 | 498 |
| RE-2X(St)HSWAH PiMF 6P0.75 | 5x2x0.75 | 0.38 | 1.1 | 13.6 | 0.9 | 1.5 | 18.4 | 565 |
| RE-2X(St)HSWAH PiMF 8P0.75 | 8x2x0.75 | 0.38 | 1.1 | 14.4 | 0.9 | 1.5 | 19.2 | 639 |
| RE-2X(St)HSWAH PiMF 10P0.75 | 10x2x0.75 | 0.38 | 1.2 | 16.6 | 1.25 | 1.6 | 22.3 | 878 |
| RE-2X(St)HSWAH PiMF 12P0.75 | 12x2x0.75 | 0.38 | 1.2 | 17.4 | 1.25 | 1.6 | 23.1 | 944 |
| RE-2X(St)HSWAH PiMF 16P0.75 | 16x2x0.75 | 0.38 | 1.3 | 19.8 | 1.25 | 1.7 | 25.7 | 1132 |
| RE-2X(St)HSWAH PiMF 20P0.75 | 20x2x0.75 | 0.38 | 1.4 | 22.0 | 1.25 | 1.7 | 27.9 | 1329 |
| RE-2X(St)HSWAH PiMF 24P0.75 | 24x2x0.75 | 0.38 | 1.5 | 24.0 | 1.25 | 1.8 | 30.1 | 1488 |
| 1.0mm2, Multipair | ||||||||
| RE-2X(St)HSWAH PiMF 2P1.0 | 2x2x1.0 | 0.4 | 1.0 | 10.4 | 0.9 | 1.4 | 15.0 | 377 |
| RE-2X(St)HSWAH PiMF 4P1.0 | 3x2x1.0 | 0.4 | 1.0 | 12.1 | 0.9 | 1.4 | 16.7 | 502 |
| RE-2X(St)HSWAH PiMF 5P1.0 | 4x2x1.0 | 0.4 | 1.1 | 13.5 | 0.9 | 1.5 | 18.3 | 567 |
| RE-2X(St)HSWAH PiMF 6P1.0 | 5x2x1.0 | 0.4 | 1.1 | 14.7 | 0.9 | 1.5 | 19.5 | 658 |
| RE-2X(St)HSWAH PiMF 8P1.0 | 8x2x1.0 | 0.4 | 1.2 | 15.8 | 0.9 | 1.5 | 20.6 | 865 |
| RE-2X(St)HSWAH PiMF 10P1.0 | 10x2x1.0 | 0.4 | 1.2 | 18.0 | 1.25 | 1.6 | 23.7 | 994 |
| RE-2X(St)HSWAH PiMF 12P1.0 | 12x2x1.0 | 0.4 | 1.3 | 19.0 | 1.25 | 1.7 | 24.7 | 1112 |
| RE-2X(St)HSWAH PiMF 16P1.0 | 16x2x1.0 | 0.4 | 1.3 | 21.5 | 1.25 | 1.7 | 27.4 | 1363 |
| RE-2X(St)HSWAH PiMF 20P1.0 | 20x2x1.0 | 0.4 | 1.4 | 23.9 | 1.25 | 1.7 | 29.8 | 1512 |
| RE-2X(St)HSWAH PiMF 24P1.0 | 24x2x1.0 | 0.4 | 1.5 | 26.1 | 1.25 | 1.8 | 32.2 | 1996 |
| 1.3mm2, Multipair | ||||||||
| RE-2X(St)HSWAH PiMF 2P1.3 | 2x2x1.3 | 0.45 | 1.0 | 11.4 | 0.9 | 1.4 | 16.0 | 452 |
| RE-2X(St)HSWAH PiMF 4P1.3 | 3x2x1.3 | 0.45 | 1.1 | 13.4 | 0.9 | 1.5 | 18.2 | 577 |
| RE-2X(St)HSWAH PiMF 5P1.3 | 4x2x1.3 | 0.45 | 1.1 | 14.8 | 0.9 | 1.5 | 19.6 | 647 |
| RE-2X(St)HSWAH PiMF 6P1.3 | 5x2x1.3 | 0.45 | 1.2 | 16.3 | 0.9 | 1.6 | 21.3 | 858 |
| RE-2X(St)HSWAH PiMF 8P1.3 | 8x2x1.3 | 0.45 | 1.3 | 17.6 | 1.25 | 1.6 | 23.3 | 982 |
| RE-2X(St)HSWAH PiMF 10P1.3 | 10x2x1.3 | 0.45 | 1.3 | 20.0 | 1.25 | 1.7 | 25.9 | 1153 |
| RE-2X(St)HSWAH PiMF 12P1.3 | 12x2x1.3 | 0.45 | 1.4 | 21.1 | 1.25 | 1.7 | 27.0 | 1287 |
| RE-2X(St)HSWAH PiMF 16P1.3 | 16x2x1.3 | 0.45 | 1.5 | 24.1 | 1.25 | 1.8 | 30.2 | 1564 |
| RE-2X(St)HSWAH PiMF 20P1.3 | 20x2x1.3 | 0.45 | 1.6 | 26.8 | 1.25 | 1.9 | 33.1 | 1960 |
| RE-2X(St)HSWAH PiMF 24P1.3 | 24x2x1.3 | 0.45 | 1.7 | 29.2 | 1.25 | 2.0 | 36.4 | 2356 |
| 1.5mm2, Multipair | ||||||||
| RE-2X(St)HSWAH PiMF 2P1.5 | 2x2x1.5 | 0.45 | 1.0 | 11.8 | 0.9 | 1.5 | 16.6 | 475 |
| RE-2X(St)HSWAH PiMF 4P1.5 | 3x2x1.5 | 0.45 | 1.1 | 13.9 | 0.9 | 1.5 | 18.7 | 616 |
| RE-2X(St)HSWAH PiMF 5P1.5 | 4x2x1.5 | 0.45 | 1.2 | 15.5 | 0.9 | 1.5 | 20.3 | 819 |
| RE-2X(St)HSWAH PiMF 6P1.5 | 5x2x1.5 | 0.45 | 1.2 | 16.9 | 1.25 | 1.6 | 22.6 | 941 |
| RE-2X(St)HSWAH PiMF 8P1.5 | 8x2x1.5 | 0.45 | 1.3 | 18.2 | 1.25 | 1.7 | 24.1 | 1039 |
| RE-2X(St)HSWAH PiMF 10P1.5 | 10x2x1.5 | 0.45 | 1.4 | 21.0 | 1.25 | 1.7 | 26.9 | 1242 |
| RE-2X(St)HSWAH PiMF 12P1.5 | 12x2x1.5 | 0.45 | 1.4 | 21.9 | 1.25 | 1.7 | 27.8 | 1387 |
| RE-2X(St)HSWAH PiMF 16P1.5 | 16x2x1.5 | 0.45 | 1.5 | 25.1 | 1.25 | 1.8 | 31.2 | 1935 |
| RE-2X(St)HSWAH PiMF 20P1.5 | 20x2x1.5 | 0.45 | 1.6 | 27.8 | 1.25 | 1.9 | 34.8 | 2227 |
| RE-2X(St)HSWAH PiMF 24P1.5 | 24x2x1.5 | 0.45 | 1.7 | 30.4 | 1.25 | 2.0 | 37.6 | 2545 |
Note : Other conductor sizes & core configurations are available upon request
