XLPE Insulated, LSZH Sheathed & Overall Screened Instrumentation Cables (Single Triple)

RE-2X(St)H 90°C / 300V

EN 50288-7 single_triple cables

Application

EN 50288-7 single triple cables for transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply.
Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral.
Recommended for use as fire protection messure for people and important material assets.

Flame Performance

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454

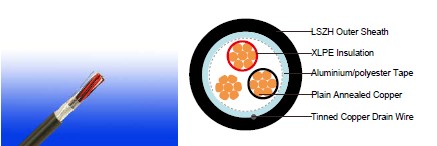

Construction

Conductor Annealed bare copper, stranded to IEC 60228 Class 2.
Insulation Extruded cross-linked XLPE compound as per EN 50290-2-29.
Triple Three conductors twisted to form a triple.
Collective screen Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
Outer sheath LSZH compound as per EN 50290-2-27. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

Colour Code

Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
Outer Sheath: Black or blue for intrinsically safe systems

Mechanical

Temperature Range During Operation (Fixed State) -30°C - +90°C
Temperature Range During Installation (Mobile State) -5°C - +50°C
Minimum Bending Radius 7.5 X Overall Diameter
Sunlight Resistance UL 1581 section 1200
Oil Resistance ICEA S-73-532(Test temperature +60°C
duration 4h. Retention: min 60% of tensile
strength/min.60% of elongation)

Electrical Properties

Conductor Area Size mm² 0.5 0.75 1 1.3 1.5
Insulation thickness (nominal) mm² 0.55 0.55 0.55 0.6 0.6
Conductor resistance (20°C) Ω/km 36.7 25 18.5 14.2 12.3
Insulation resistance (20°C) MΩ.km(Min.) 5000
Mutual Capacitance (1 kHz) pF/m(Max.) 115
Capacitance unbalance(1 kHz) pF/500 m (Max.) 500
L / R (ratio) (max.) μH/Ω 25 25 25 40 40 60
Operating voltage V 500
Test Voltage Urms Core to Core V 2000
Core to Screen V 2000

Construction Parameters

Caledonian Cable Code RE-2X(St)H
?No. of Core x1xCross Section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Approx. Weight
No.x1xmm2 mm mm mm kg/km
RE-2X(St)H 1T0.5 1x3x0,50 0.35 0.8 5.4 45
RE-2X(St)H 1T0.75 1x3x0,75 0.38 0.9 6.1 59
RE-2X(St)H 1T1.0 1x3x1.0 0.4 0.9 6.6 66
RE-2X(St)H 1T1.3 1x3x1,3 0.45 0.9 7.2 86
RE-2X(St)H 1T1.5 1x3x1,5 0.45 0.9 7.5 95
