EN 50288-7 PE armour Multicore Cables

EN 50288-7 Cables

APPLICATION

EN 50288-7 PE armour Multicore cables are generally use for indoor installation and suitable for wet and damp areas. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

STANDARDS

Basic design to EN 50288-7

VOLTAGE RATING

500V

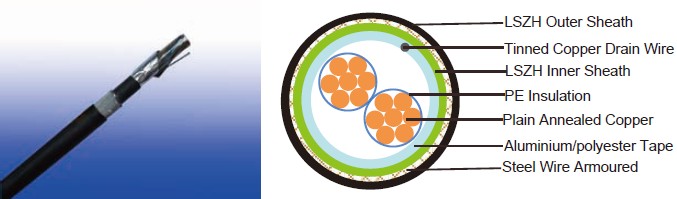

CABLE CONSTRUCTION

Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: PE compound, EN 50290. 2-23.
Overall Screen: Aluminium/polyester tape with 0.5mm2 screen (7/0.3mm) tinned copper drain wire.
Inner Sheath: LSZH compound
Armouring: Galvanised steel wire
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound typeSW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

COLOUR CODE

Insulation: Black / Blue, continuously numbered on blue core(1, 2..) for wrapped conductor Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 10 X Overall Diameter

ELETRICAL PROPERTIES

Conductor Area Size mm2 0.5 0.75 1.0 1.3 1.5 2.5
Insulation thickness (nominal) mm 0.55 0.55 0.55 0.6 0.6 0.7
Conductor resistance (20°C) Ω/km 36.0 24.5 18.1 13.9 12.1 7.4
Insulation resistance (20°C) MΩ.km(Min.) 5000 5000 5000 5000 5000 2000
Mutual Capacitance (1 kHz) pF/m(Max.) 115 115 115 115 115 2000
Inductance mH/km(Max.) 1 1 1 1 1 1
L / R (ratio) (max.) μH/Ω 25 25 25 40 40 10
Operating voltage V 500
Test Voltage Urms Core to Core V 2000
Core to Screen V 2000
