EN 50288-7 XLPE Insulated, LSZH Sheathed & Overall Screened Armoured Instrumentation Cables

RE-2X(St)HSWAH

EN 50288-7 Cables

APPLICATION

The LSZH sheathed cables are generally use for indoor installation and suitable for wet and damp areas. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipmentand instruments, the LSZH sheath can reduce toxic smoke and fume emission.

STANDARDS

Basic design to EN 50288-7

VOLTAGE RATING

500V

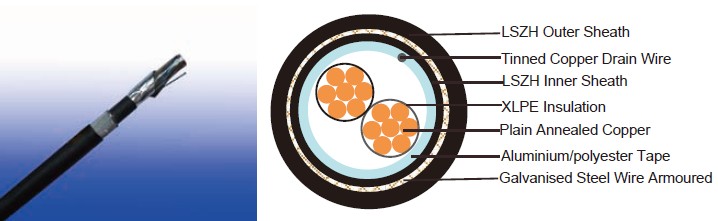

CABLE CONSTRUCTION

Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: Extruded cross-linked XLPE compound, EN 50290. 2-29.
Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm²
Inner Sheath: LSZH compound
Armouring: Galvanised steel wire
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound typeSW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

COLOUR CODE

Insulation: Black numbered
Outer Sheath: Black, blue for intrinsically safe systems

Physical AND THERMAL PROPERTIES

Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 10 X Overall Diameter

Electrical PROPERTIES

Conductor Area Size		mm²	0.5	0.75	1.0	1.3	1.5	2.5
Insulation thickness (nominal)		mm	0.55	0.55	0.55	0.6	0.6	0.7
Conductor resistance (20°C)		Ω/km	36.7	25.0	18.5	14.2	12.3	7.4
Insulation resistance (20°C)		MΩ.km(Min.)	5000
Mutual Capacitance (1 kHz)		pF/m(Max.)	115
Capacitance unbalance(1 kHz)		pF/500 m (Max.)	500
Inductance		mH/km(Max.)	1
L / R (ratio) (max.)		μH/Ω	25	25	25	40	40	40
Operating voltage		V	500
Test Voltage Urms	Core to Core	V	2000
Test Voltage Urms	Core to Screen	V	2000

CONSTRUCTION PARAMETERS

Cable Code	RE-2X(St)HSWAH
Cable Code	No. of Core x1xCross Section	Nominal Insulation Thick-ness	Nominal Inner Sheath Thick-ness	Nominal Overall Diameter Over InnerSheath	Nominal Armour Wire Diameter	Nominal Outer Sheath Thick-ness	Nominal OverallDiameter	Approx.Weight
	No.x1xmm²	mm	mm	mm	mm	mm	mm	kg/km
0.5mm², Multicore
RE-2X(St)HSWAH 2C0.5	2x1x0.5	0.55	0.9	6.2	0.9	1.3	10.6	210
RE-2X(St)HSWAH 3C0.5	3x1x0.5	0.55	0.9	6.5	0.9	1.3	10.9	230
RE-2X(St)HSWAH 4C0.5	4x1x0.5	0.55	0.9	7.0	0.9	1.3	11.4	253
RE-2X(St)HSWAH 5C0.5	5x1x0.5	0.55	0.9	7.6	0.9	1.3	12.0	283
RE-2X(St)HSWAH 8C0.5	8x1x0.5	0.55	1.0	9.1	0.9	1.4	13.7	344
RE-2X(St)HSWAH 10C0.5	10x1x0.5	0.55	1.0	10.4	0.9	1.4	15.0	399
RE-2X(St)HSWAH 12C0.5	12x1x0.5	0.55	1.0	10.7	0.9	1.4	15.3	442
RE-2X(St)HSWAH 14C0.5	14x1x0.5	0.55	1.0	11.3	0.9	1.4	15.9	474
RE-2X(St)HSWAH 16C0.5	16x1x0.5	0.55	1.1	11.8	0.9	1.4	16.4	505
RE-2X(St)HSWAH 20C0.5	20x1x0.5	0.55	1.1	13.3	0.9	1.5	18.1	569
RE-2X(St)HSWAH 24C0.5	24x1x0.5	0.55	1.1	14.7	0.9	1.5	19.5	642
RE-2X(St)HSWAH 27C0.5	27x1x0.5	0.55	1.2	15.0	0.9	1.5	19.8	808
RE-2X(St)HSWAH 30C0.5	30x1x0.5	0.55	1.2	15.7	0.9	1.5	20.5	848
RE-2X(St)HSWAH 37C0.5	37x1x0.5	0.55	1.2	16.9	0.9	1.6	21.9	963
RE-2X(St)HSWAH 40C0.5	40x1x0.5	0.55	1.2	17.6	1.25	1.6	23.3	1014
0.75mm², Multicore
RE-2X(St)HSWAH 2C0.75	2x1x0.75	0.55	0.9	6.5	0.9	1.3	10.9	230
RE-2X(St)HSWAH 3C0.75	3x1x0.75	0.55	0.9	6.9	0.9	1.3	11.3	247
RE-2X(St)HSWAH 4C0.75	4x1x0.75	0.55	0.9	7.4	0.9	1.3	11.8	278
RE-2X(St)HSWAH 5C0.75	5x1x0.75	0.55	0.9	8.1	0.9	1.4	12.7	322
RE-2X(St)HSWAH 8C0.75	8x1x0.75	0.55	1.0	9.7	0.9	1.4	14.3	383
RE-2X(St)HSWAH 10C0.75	10x1x0.75	0.55	1.0	11.1	0.9	1.4	15.7	461
RE-2X(St)HSWAH 12C0.75	12x1x0.75	0.55	1.0	11.5	0.9	1.4	16.1	477
RE-2X(St)HSWAH 14C0.75	14x1x0.75	0.55	1.1	12.2	0.9	1.5	17.0	527
RE-2X(St)HSWAH 16C0.75	16x1x0.75	0.55	1.1	12.9	0.9	1.5	17.7	572
RE-2X(St)HSWAH 20C0.75	20x1x0.75	0.55	1.1	14.3	0.9	1.5	19.1	669
RE-2X(St)HSWAH 24C0.75	24x1x0.75	0.55	1.2	16.0	0.9	1.5	20.8	877
RE-2X(St)HSWAH 27C0.75	27x1x0.75	0.55	1.2	16.3	0.9	1.6	21.3	929
RE-2X(St)HSWAH 30C0.75	30x1x0.75	0.55	1.2	16.9	0.9	1.6	21.9	986
RE-2X(St)HSWAH 37C0.75	37x1x0.75	0.55	1.2	18.2	1.25	1.6	23.9	1102
RE-2X(St)HSWAH 40C0.75	40x1x0.75	0.55	1.3	19.1	1.25	1.6	24.8	1181
1.0mm², Multicore
RE-2X(St)HSWAH 2C1.0	2x1x1.0	0.55	0.9	6.9	0.9	1.3	11.3	247
RE-2X(St)HSWAH 3C1.0	3x1x1.0	0.55	0.9	7.3	0.9	1.3	11.7	270
RE-2X(St)HSWAH 4C1.0	4x1x1.0	0.55	0.9	7.9	0.9	1.4	12.5	299
RE-2X(St)HSWAH 5C1.0	5x1x1.0	0.55	0.9	8.6	0.9	1.4	13.2	342
RE-2X(St)HSWAH 8C1.0	8x1x1.0	0.55	1.0	10.3	0.9	1.4	14.9	424
RE-2X(St)HSWAH 10C1.0	10x1x1.0	0.55	1.0	11.9	0.9	1.4	16.5	514
RE-2X(St)HSWAH 12C1.0	12x1x1.0	0.55	1.0	12.2	0.9	1.5	17.0	548
RE-2X(St)HSWAH 14C1.0	14x1x1.0	0.55	1.1	13.0	0.9	1.5	17.8	590
RE-2X(St)HSWAH 16C1.0	16x1x1.0	0.55	1.1	13.7	0.9	1.5	18.5	649
RE-2X(St)HSWAH 20C1.0	20x1x1.0	0.55	1.1	15.2	0.9	1.5	20.0	864
RE-2X(St)HSWAH 24C1.0	24x1x1.0	0.55	1.2	17.0	0.9	1.6	22.0	1005
RE-2X(St)HSWAH 27C1.0	27x1x1.0	0.55	1.2	17.4	1.25	1.6	23.1	1058
RE-2X(St)HSWAH 30C1.0	30x1x1.0	0.55	1.2	18.0	1.25	1.6	23.7	1113
RE-2X(St)HSWAH 37C1.0	37x1x1.0	0.55	1.2	19.6	1.25	1.6	25.3	1271
RE-2X(St)HSWAH 40C1.0	40x1x1.0	0.55	1.3	20.4	1.25	1.7	26.3	1351
1.3mm², Multicore
RE-2X(St)HSWAH 2C1.3	2x1x1.3	0.6	0.9	7.4	0.9	1.3	11.8	275
RE-2X(St)HSWAH 3C1.3	3x1x1.3	0.6	0.9	7.9	0.9	1.3	12.3	??
RE-2X(St)HSWAH 4C1.3	4x1x1.3	0.6	0.9	8.5	0.9	1.4	13.1	340
RE-2X(St)HSWAH 5C1.3	5x1x1.3	0.6	1.0	9.5	0.9	1.4	14.1	383
RE-2X(St)HSWAH 8C1.3	8x1x1.3	0.6	1.0	11.2	0.9	1.4	15.8	483
RE-2X(St)HSWAH 10C1.3	10x1x1.3	0.6	1.1	13.2	0.9	1.5	18.0	578
RE-2X(St)HSWAH 12C1.3	12x1x1.3	0.6	1.1	13.6	0.9	1.5	18.4	633
RE-2X(St)HSWAH 14C1.3	14x1x1.3	0.6	1.1	14.3	0.9	1.5	19.1	698
RE-2X(St)HSWAH 16C1.3	16x1x1.3	0.6	1.1	15.0	0.9	1.5	19.8	870
RE-2X(St)HSWAH 20C1.3	20x1x1.3	0.6	1.2	16.9	0.9	1.6	21.9	1014
RE-2X(St)HSWAH 24C1.3	24x1x1.3	0.6	1.2	18.7	1.25	1.6	24.4	1163
RE-2X(St)HSWAH 27C1.3	27x1x1.3	0.6	1.3	19.3	1.25	1.6	25.0	1227
RE-2X(St)HSWAH 30C1.3	30x1x1.3	0.6	1.3	20.0	1.25	1.6	25.7	1305
RE-2X(St)HSWAH 37C1.3	37x1x1.3	0.6	1.3	21.6	1.25	1.7	27.5	1504
RE-2X(St)HSWAH 40C1.3	40x1x1.3	0.6	1.4	22.7	1.25	1.7	28.6	1584
1.5mm², Multicore
RE-2X(St)HSWAH 2C1.5	2x1x1.5	0.6	0.9	7.7	0.9	1.3	12.1	279
RE-2X(St)HSWAH 3C1.5	3x1x1.5	0.6	0.9	8.1	0.9	1.4	12.7	322
RE-2X(St)HSWAH 4C1.5	4x1x1.5	0.6	0.9	8.8	0.9	1.4	13.4	347
RE-2X(St)HSWAH 5C1.5	5x1x1.5	0.6	1.0	9.8	0.9	1.4	14.4	392
RE-2X(St)HSWAH 8C1.5	8x1x1.5	0.6	1.0	11.6	0.9	1.4	16.2	518
RE-2X(St)HSWAH 10C1.5	10x1x1.5	0.6	1.1	13.7	0.9	1.5	18.5	614
RE-2X(St)HSWAH 12C1.5	12x1x1.5	0.6	1.1	14.1	0.9	1.5	18.9	670
RE-2X(St)HSWAH 14C1.5	14x1x1.5	0.6	1.1	14.8	0.9	1.5	19.6	742
RE-2X(St)HSWAH 16C1.5	16x1x1.5	0.6	1.1	15.6	0.9	1.5	20.4	925
RE-2X(St)HSWAH 20C1.5	20x1x1.5	0.6	1.2	17.6	1.25	1.6	23.3	1062
RE-2X(St)HSWAH 24C1.5	24x1x1.5	0.6	1.3	19.6	1.25	1.6	25.3	1218
RE-2X(St)HSWAH 27C1.5	27x1x1.5	0.6	1.3	20.1	1.25	1.6	25.8	1289
RE-2X(St)HSWAH 30C1.5	30x1x1.5	0.6	1.3	20.8	1.25	1.7	26.7	1418
RE-2X(St)HSWAH 37C1.5	37x1x1.5	0.6	1.4	22.6	1.25	1.7	28.5	1586
RE-2X(St)HSWAH 40C1.5	40x1x1.5	0.6	1.4	23.6	1.25	1.7	29.5	1687
2.5², Multicore
RE-2X(St)HSWAH 2C2.5	2x1x2.5	0.7	0.9	8.9	0.9	1.4	13.5	364
RE-2X(St)HSWAH 3C2.5	3x1x2.5	0.7	1.0	9.7	0.9	1.4	14.3	389
RE-2X(St)HSWAH 4C2.5	4x1x2.5	0.7	1.0	10.5	0.9	1.4	15.1	430
RE-2X(St)HSWAH 5C2.5	5x1x2.5	0.7	1.0	11.9	0.9	1.4	16.5	547
RE-2X(St)HSWAH 8C2.5	8x1x2.5	0.7	1.1	13.9	0.9	1.5	18.7	684
RE-2X(St)HSWAH 10C2.5	10x1x2.5	0.7	1.2	16.3	0.9	1.6	21.3	952
RE-2X(St)HSWAH 12C2.5	12x1x2.5	0.7	1.2	16.9	0.9	1.6	21.9	1012
RE-2X(St)HSWAH 14C2.5	14x1x2.5	0.7	1.2	17.7	1.25	1.6	23.4	1126
RE-2X(St)HSWAH 16C2.5	16x1x2.5	0.7	1.3	18.9	1.25	1.6	24.6	1252
RE-2X(St)HSWAH 20C2.5	20x1x2.5	0.7	1.3	21.1	1.25	1.7	27.0	1456
RE-2X(St)HSWAH 24C2.5	24x1x2.5	0.7	1.4	23.6	1.25	1.7	29.5	1644
RE-2X(St)HSWAH 27C2.5	27x1x2.5	0.7	1.4	24.1	1.25	1.8	30.2	1811
RE-2X(St)HSWAH 30C2.5	30x1x2.5	0.7	1.5	25.2	1.25	1.8	31.3	2154
RE-2X(St)HSWAH 37C2.5	37x1x2.5	0.7	1.5	27.2	1.25	1.8	33.3	2477
RE-2X(St)HSWAH 40C2.5	40x1x2.5	0.7	1.6	28.5	1.25	1.9	34.8	2614

Note : Other conductor sizes & core configurations are available upon request.
