EN 50288-7 Cables

APPLICATION

These cables are used for transmission of analoge and digital signals in instrument and control systems at chemistry and petr°Chemistry industry plants, power plants, natural gas and petroluem plants, etc... These cables are used in the environments which have no corrosive gases are emitted in the event of fire. In case of fire,these cables inhibit the propagation of the flames whereby the development of smoke is extremely low. Instrumentation cables are not allowed for direct connection to a low impedance sources, e.g. public mains electricity supply. With blue sheath it is suitable for intrinsically safe systems. These cables are not recommended for direct burial. They are for indoor and outdoor installation, in dry and wet l°Cations; on racks, trays, in conduits.

STANDARDS

Basic design to EN 50288-7

VOLTAGE RATING

300V

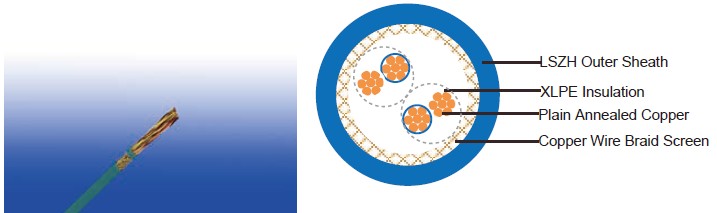

CABLE CONSTRUCTION

Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: Extruded cross-linked XLPE compound, EN 50290. 2-29.
Pair:Two conductors twisted to form a pair
Lay-up: Pairs laid up in layers of optimum pitch
Separator: Polyester tape
Overall Screen: Tinned copper wire braid
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound typeSW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

COLOUR CODE

Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair. Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

Temperature Range During Operation (Fixed State): -30°C – +70°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 7.5 X Overall Diameter

ELETRICAL PROPERTIES

Conductor Area Size		mm2	0.5	0.75	1.0	1.3	1.5
Insulation thickness (nominal)		mm	0.4	0.4	0.4	0.45	0.45
Conductor resistance (20°C)		Ω/km	36.7	25	18.5	14.2	12.3
Insulation resistance (20°C)		MΩ.km(Min.)	5000
Mutual Capacitance (1 kHz)		pF/m(Max.)
			≤ 4 pairs	115	115	115	120	120
			all other pairs	90	90	90	105	105
Capacitance unbalance(1 kHz)		pF/500 m (Max.)	300
L / R (ratio) (max.)		μH/Ω	25	25	25	40	40
Operating voltage Urms		V	300
Test Voltage	Core to Core	V	1500
	Core to Screen	V	1500

CONSTRUCTION PARAMETERS

Caledonian Cable Code	RE-2X(C)H
	No. of Pairs x2xCross Section	Copper Weight	Approx. Weight
	No.x2xmm2	Kg/km	Kg/km
0.5mm2, Multipair
RE-2X(C)H 2P0.5	2x2x0.50	10.7	143
RE-2X(C)H 4P0.5	4x2x0.50	11.1	159
RE-2X(C)H 5P0.5	5x2x0.50	11.9	181
RE-2X(C)H 6P0.5	6x2x0.50	13.6	230
RE-2X(C)H 8P0.5	8x2x0.50	14.2	264
RE-2X(C)H 12P0.5	12x2x0.50	16.4	343
RE-2X(C)H 16P0.5	16x2x0.50	18.2	418
RE-2X(C)H 20P0.5	20x2x0.50	19.7	487
RE-2X(C)H 24P0.5	24x2x0.50	21.1	557
0.75mm2, Multipair
RE-2X(C)H 2P0.75	2x2x0.75	11.4	160
RE-2X(C)H 3P0.75	3x2x0.75	11.9	185
RE-2X(C)H 4P0.75	4x2x0.75	12.7	214
RE-2X(C)H 6P0.75	6x2x0.75	14.6	278
RE-2X(C)H 8P0.75	8x2x0.75	15.4	324
RE-2X(C)H 12P0.75	12x2x0.75	17.8	427
RE-2X(C)H 16P0.75	16x2x0.75	19.8	526
RE-2X(C)H 20P0.75	20.x2x0.75	21.5	623
RE-2X(C)H 24P0.75	24x2x0.75	23.1	714
1.0mm2, Multipair
RE-2X(C)H 2P1.0	2x2x1.0	12.3	184
RE-2X(C)H 3P1.0	3x2x1.0	12.8	214
RE-2X(C)H 4P1.0	4x2x1.0	13.7	251
RE-2X(C)H 6P1.0	6x2x1.0	15.6	326
RE-2X(C)H 8P1.0	8x2x1.0	16.4	382
RE-2X(C)H 12P1.0	12x2x1.0	19.0	511
RE-2X(C)H 16P1.0	16x2x1.0	21.2	636
RE-2X(C)H 20P1.0	20.x2x1.0	23.5	775
RE-2X(C)H 24P1.0	24x2x1.0	25.3	892
1.3mm2, Multipair
RE-2X(C)H 2P1.3	2x2x1.3	12.9	204
RE-2X(C)H 3P1.3	3x2x1.3	13.5	242
RE-2X(C)H 4P1.3	4x2x1.3	14.5	285
RE-2X(C)H 6P1.3	6x2x1.3	16.7	375
RE-2X(C)H 8P1.3	8x2x1.3	17.4	444
RE-2X(C)H 12P1.3	12x2x1.3	20.2	599
RE-2X(C)H 16P1.3	16x2x1.3	22.6	750
RE-2X(C)H 20P1.3	20x2x1.3	25.1	916
RE-2X(C)H 24P1.3	24x2x1.3	27.0	1064

Note : Other conductor sizes & core configurations are available upon request.
