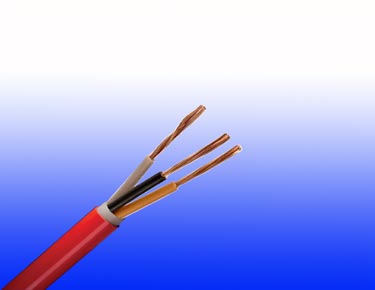

300/500V Mica+XLPE or SR Insulated & Overall Screened Multicore PAS BS 5308 Instrumentation Cables
RE-2X(St)H...CI. FE 180 PH30 ( CU/MGT+XLPE/OSCR/LSZH 300/500V Class 2 )
RE-2G(St)H...CI. FE 180 PH30 ( CU/SR/OSCR/LSZH 300/500V Class 2 )
Applications
BS 5308/BS 7629-1 Cable are designed, manufactured and tested as data transmission cables for emergency services. These are used for data and voice transmission when high frequency signal has to be assured also in the event of a fire.
Standard
Basic design to BS 5308/BS 7629-1
 |
 |
Construction
| Circuit Integrity | IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180); BS 8434-1 (30mins); BS 5839-1 Clause 26 2d; CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1) |
| Circuit Integrity with mechanical shock | EN 50200(PH30); CEI 20-36/4-0 |
| Circuit Integrity with mechanical shock & water spray | EN 50200 annex E |
| System circuit integrity | DIN 4102-12, E30 depending on lay system |
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |

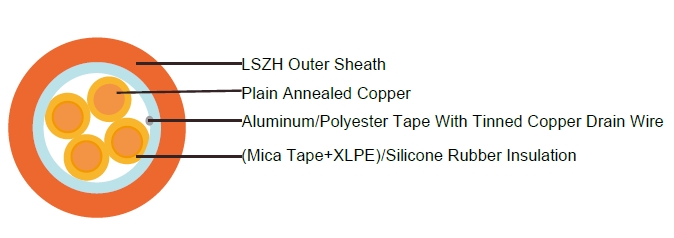

Construction
| Conductor | Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2. |
| Insulation | Mica glass tape covered by extruded cross-linked XLPE compound or fire resistant silicone rubber compound type EI2 as per BS 7655-1.1. |
| Cabling Elements | Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two-pair cable had four cores laid in quad formation. |
| Cabling | Pairs are cabled together.In cables with 8 pairs or more, 4 pairs are assembled to form a bunch, the bunches are then cabled together. |
| Overall Screen | Aluminum/polyester tape with 0.5mm2 screen (7/0.3mm) tinned copper drain wire. |
| Outer Sheath | Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1(Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.) |
Electrical Properties
| Dielectric test: | 2000 V r.m.s. x 5’ (core/core) |
| Insulation Resistance | XLPE: ≥1000 MΩ x km (at 20°C); SR: ≥300 MΩ x km (at 20°C) |
| Short circuit Temperature | XLPE: 250°C SR: 350°C |
Construction Parameter
| Conductor | RE-2X(St)H...CI. FE 180 PH30 RE-2G(St)H...CI. FE 180 PH30 | |||
|---|---|---|---|---|
| No. of Pairs X Cross Section | No./Nominal Diameter of Strands | Nominal Insulation Thickness | Unarmoured | |
| Nominal Overall Diameter | Approx. Weight | |||
| mm2 | no./mm | mm | mm | kg/km |
| 1 Pairs | ||||
| 1X2x1.0 | 7/0.43 | 0.6 | 8.0 | 76 |
| 1X2x1.5 | 7/0.53 | 0.7 | 8.5 | 94 |
| 1X2x2.5 | 7/0.67 | 0.8 | 10.5 | 130 |
| 2 Pairs | ||||
| 2X2x1.0 | 7/0.43 | 0.6 | 12.4 | 120 |
| 2X2x1.5 | 7/0.53 | 0.7 | 14.0 | 160 |
| 2X2x2.5 | 7/0.67 | 0.8 | 16.0 | 230 |
| 5 Pairs | ||||
| 5X2x1.0 | 7/0.43 | 0.6 | 16.5 | 276 |
| 5X2x1.5 | 7/0.53 | 0.7 | 20.5 | 368 |
| 5X2x2.5 | 7/0.67 | 0.8 | 23.0 | 518 |
| 10 Pairs | ||||
| 10X2x1.0 | 7/0.43 | 0.6 | 20.5 | 501 |
| 10X2x1.5 | 7/0.53 | 0.7 | 26.0 | 673 |
| 10X2x2.5 | 7/0.67 | 0.8 | 29.5 | 971 |
| 20 Pairs | ||||
| 20X2x1.0 | 7/0.43 | 0.6 | 26.5 | 917 |
| 20X2x1.5 | 7/0.53 | 0.7 | 34.0 | 1258 |
| 20X2x2.5 | 7/0.67 | 0.8 | 38.5 | 1830 |
