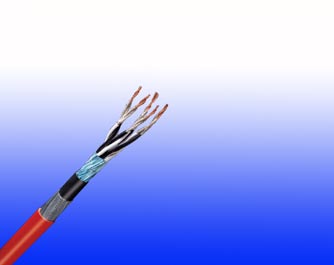

300/500V Mica+XLPE or SR Insulated & Overall Screened, SWA Armoured Multicore PAS BS 5308 Instrumentation Cables

RE-2X(St)HSWAH...CI. FE 180 PH30 ( CU/MGT+XLPE/OSCR/LSZH/SWA/LSZH 300/500V Class 2 )
RE-2G(St)HSWAH...CI. FE 180 PH30 ( CU/SR/OSCR/LSZH/SWA/LSZH 300/500V Class 2 )

Applications

300/500V Mica+XLPE or SR Insulated & Overall Screened??SWA Armoured Multicore PAS BS 5308 Instrumentation Cables are designed, manufactured and tested as data transmission cables for emergency services. These are used for data and voice transmission when high frequency signal has to be assured also in the event of a fire.

Standard

Basic design to BS 5308/BS 7629-1

Construction

Circuit Integrity	IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180); BS 8434-1 (30mins); BS 5839-1 Clause 26 2d; CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)
Circuit Integrity with mechanical shock	EN 50200(PH30); CEI 20-36/4-0
Circuit Integrity with mechanical shock & water spray	EN 50200 annex E
System circuit integrity	DIN 4102-12, E30 depending on lay system
Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases	NES 02-713; NF C 20-454

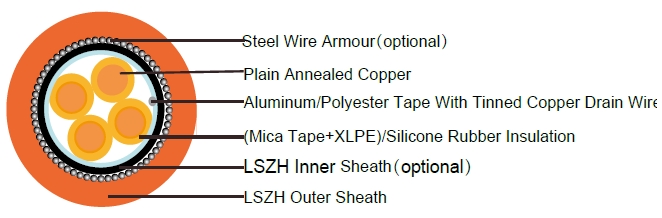

Construction

Conductor	Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation	Mica glass tape covered by extruded cross-linked XLPE compound or fire resistant silicone rubber compound type EI2 as per BS 7655-1.1.
Cabling Elements	Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two-pair cable had four cores laid in quad formation.
Cabling	Pairs are cabled together.In cables with 8 pairs or more, 4 pairs are assembled to form a bunch, the bunches are then cabled together.
Overall Screen	Aluminum/polyester tape with 0.5mm2 screen (7/0.3mm) tinned copper drain wire.
Inner Sheath(optional)	Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1
Armouring	Galvanized steel wire armour
Outer Sheath	Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1(Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

Electrical Properties

Dielectric test:	2000 V r.m.s. x 5’ (core/core)
Insulation Resistance	XLPE: ≥1000 MΩ x km (at 20°C); SR: ≥300 MΩ x km (at 20°C)
Short circuit Temperature	XLPE: 250°C SR: 350°C

Construction Parameter

Conductor			RE-2X(St)HSWAH...CI. FE 180 PH30 RE-2G(St)HSWAH...CI. FE 180 PH30
No. of Pairs X Cross Section	No./Nominal Diameter of Strands	Nominal Insulation Thickness	Armoured
			Diameter Under Armour	Armour Wire Diameter	Nominal Overall Diameter	Approx. Weight
mm2	no./mm	mm	mm	mm	mm	kg/km
1 Pairs
1X2x1.0	7/0.43	0.6	8.0	0.90	12.4	281
1X2x1.5	7/0.53	0.7	8.5	0.90	13.1	332
1X2x2.5	7/0.67	0.8	10.5	0.90	15.1	401
2 Pairs
2X2x1.0	7/0.43	0.6	12.4	0.90	17.4	370
2X2x1.5	7/0.53	0.7	14.0	0.90	18.4	450
2X2x2.5	7/0.67	0.8	16.0	0.90	20.5	550
5 Pairs
5X2x1.0	7/0.43	0.6	16.5	1.25	22	854
5X2x1.5	7/0.53	0.7	20.5	1.25	26.2	1023
5X2x2.5	7/0.67	0.8	23.0	1.25	28.9	1276
10 Pairs
10X2x1.0	7/0.43	0.6	20.5	1.25	26.4	1271
10X2x1.5	7/0.53	0.7	26.0	1.60	32.8	1742
10X2x2.5	7/0.67	0.8	29.5	1.60	36.5	2205
20 Pairs
20X2x1.0	7/0.43	0.6	26.5	1.60	33.3	2197
20X2x1.5	7/0.53	0.7	34.0	1.60	41.2	2705
20X2x2.5	7/0.67	0.8	38.5	2.00	46.7	3836
