300/500V Braid-Screened Flexible Equipment Cables (Multipair)

LI-05SCZ1 FE180 (PH30) (CU/SR/OSCR/LSZH 300/500V Class 5)

VDE 0812 / EN 50290-2-27 LI-05SCZ1 FE180 (PH30) (CU/SR/OSCR/LSZH 300/500V Class 5) Cables

Applications

Equipment cables are designed, manufactured and tested as data transmission cables for emergency services. These are used for data and voice transmission when high frequency signal has to be assured also in the event of a fire.

Standards

Basic design to VDE 0812 / EN 50290-2-27

Fire Performance

Circuit Integrity IEC 60331-23; BS 6387 CWZ; DIN VDE 0472-814(FE180); CEI 20-36/2-1; SS299-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)
System circuit integrity DIN 4102-12, E30 depending on lay system
Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454

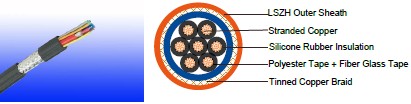

Construction

Conductor Plain annealed copper wire, stranded according to IEC 60228 class 2.
Insulation Mica glass tape covered by extruded cross-linked XLPE compound or fire resistant
silicone rubber compound type EI2 as per BS 7655-1.1.
Cabling The cores are cabled together in concentric layers with suitable non-hygroscopic fillers.
Screen Aluminum/polyester tape with 0.5mm2 screen (7/0.3mm) with tinned copper drain
wire.
Sheath

Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

Colour Code

Insulation Colour: White with black numberings.
Sheath Colour: Orange (other colours on request).

Physical and thermal properties

Temperature range during operation (fixed state) -30??C ?C +90??C
Temperature range during installation (mobile state) -20??C ?C +50??C
Minimum bending radius 6 x Overall Diameter (unarmoured cables with silicone rubber insulation)
8 x Overall Diameter (unarmoured cables with XLPE insulation)
10 x Overall Diameter (armoured cables)
Electrical properties

Dielectric test: 2000 V r.m.s. x 5' (core/core)
Insulation Resistance XLPE: ??1000 M?? x km (at 20??C) SR: ??300 M?? x km (at 20??C)
Short circuit Temperature XLPE: 250??C SR: 350??C

Dimensions and Weight

Cable

Code

No. of Core X Cross Section No./ Nominal Diameter of Strands
Nominal Sheath Thickness Nominal Overall Diameter Approx.Weight
    No/mm mm mm kg/km
2 cores? ?
LI-05SCH FE180 (PH30) 2G0.75? 2x0.75? 0.6 0.8 6.3 55
LI-05SCH FE180 (PH30) 2G1.0? 2x1.0? 0.6 0.9 6.9 62
LI-05SCH FE180 (PH30) 2G1.5? 2x1.5? 0.7 0.9 7.3 79
3 cores? ?
LI-05SCH FE180 (PH30) 3G0.75? 3x0.75? 0.6 0.8 6.6 67
LI-05SCH FE180 (PH30) 3G1.0? 3x1.0? 0.6 0.9 7.2 77
LI-05SCH FE180 (PH30) 3G1.5? 3x1.5? 0.7 0.9 7.6 101
4 cores? ?
LI-05SCH FE180 (PH30) 4G0.75? 4x0.75? 0.6 0.9 7.2 85
LI-05SCH FE180 (PH30) 4G1.0? 4x1.0? 0.6 1 7.7 98
LI-05SCH FE180 (PH30) 4G1.5? 4x1.5? 0.7 1 8.2 112
5 cores? ?
LI-05SCH FE180 (PH30) 5G0.75? 5x0.75? 0.6 0.9 7.9 105
LI-05SCH FE180 (PH30) 5G1.0? 5x1.0? 0.6 1 7.9 117
LI-05SCH FE180 (PH30) 5G1.5? 5x1.5? 0.7 1 9 127
6 cores? ?
LI-05SCH FE180 (PH30) 6G0.75? 6x0.75? 0.6 0.9 8.6 121
LI-05SCH FE180 (PH30) 6G1.0? 6x1.0? 0.6 1 9.1 138
LI-05SCH FE180 (PH30) 6G1.5? 6x1.5? 0.7 1 10 161
7 cores? ?
LI-05SCH FE180 (PH30) 7G0.75? 7x0.75? 0.6 0.9 8.6 131
LI-05SCH FE180 (PH30) 7G1.0? 7x1.0? 0.6 1 9.1 152
LI-05SCH FE180 (PH30) 7G1.5? 7x1.5? 0.7 1.1 10 193
