NF M 87-202 EIPF

Applications

These NF M 87-202 EIPF instrumentation cables are used for safety extra-low use in petroleum and petrochemical units particularly for the transmission of a.c. or d.c. analogue signals, They are well adapted to underground use in industrial applications, in moist areas, where chemical and mechanical protection are needed.

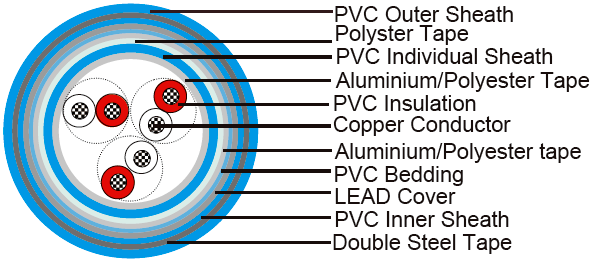

Construction



Conductor	Solid or Stranded copper conductor
Insulation	PVC (70 mm maximum pair length)
Individual Screen	Aluminium/polyester tape
Individual Sheath	PVC
Overall Binder Tape	Polyster tape
Collective Screen	Aluminium/polyester tape
Bedding	PVC
Inner Sheath	PVC
Amouring	Double Steel Tape
Outer Sheath	PVC (Flame retardant, sunlight, mineral oil and hydrocarton resistant)
Outer Sheath Colour	Light-blue

Core identification

Colours	Natural	Red	Blue	Yellow
1 pair	??	??
1 triple	??	??	??
1 quad	??	??	??	??

Natural cores printed with pair/triple number

Standards References

• NF M 87-202
• UTE C 32-014
• NF C 32-020
• IEC 60332-1
• IEC 60332-3-24

Characteristics

Voltage Rationg	300/500V
Operating Temperature	-40??C/+90??C
Installation Temperature	MAX+50??C
Maximum Voltage	250V
Voltage Test	2000V

Maximum conductor d.c. Resistance

Conductor Size	Ohm/km at +20??C
1/0.80mm(0.50 sqmm)	37.50
7/0.40mm(0.88 sqmm)	21.40
7/0.53mm(1.50 sqmm)	12.50

Capacitance between cond. (nf/km)

• 0.5 sqmm ?? 145
• 0.88 sqmm ?? 160
• 1.50 sqmm ?? 180

Type/codification

1 Serie	Number of pairs, triples or quads / 01 to 27
2 Serie	Lay up in pair(IP) ,triple (IT) , quads (IQ)
3 Serie	Core section 05 (0.5mm2) , 09 (0.88 mm2) or 15(1.5mm2)
4 Serie	Overall screen(EG) or individual screen + overall screen(EI)
5 Serie	Mechanical protection: without armour (SF), with armour (FA), with lead + armour(PF)

Dimensions and Weight

NF M 87-202	Number of beams x cross section	Cond. mm2	Outer Diameter(mm)		Weight(kg/km)
			Min.	Max.
03 IP 05 EIPF	3X2X0.50	0.50	17.10	19.60	950
07 IP 05 EIPF	7X2X0.50	0.50	21.80	25.00	1450
12 IP 05 EIPF	12X2X0.50	0.50	26.60	30.50	2025
19 IP 05 EIPF	19X2X0.50	0.50	31.60	36.30	2745
27 IP 05 EIPF	27X2X0.50	0.50	36.50	41.90	3400
03 IP 09 EIPF	3X2X0.88	0.88	19.50	22.30	1170
07 IP 09 EIPF	7X2X0.88	0.88	25.40	29.10	1810
12 IP 09 EIPF	12X2X0.88	0.88	31.60	36.30	2745
19 IP 09 EIPF	19X2X0.88	0.88	37.80	43.40	3770
27 IP 09 EIPF	27X2X0.88	0.88	43.90	50.40	4910
07 IT 05 EIPF	7X3X0.50	0.50	24.30	26.80	1549
12 IT 05 EIPF	12X3X0.50	0.50	29.30	32.30	2175
07 IT 09 EIPF	7X3X0.88	0.88	28.60	31.60	2074
12 IT 09 EIPF	12X3X0.88	0.88	34.70	38.30	1025
