FIREROL Thin Wall Multi-Core Overall Screened Cables 300/500 V
EN 50306-3 (FRL-TW-05M-OS)Application :
-Used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor.
-Used in cable harnesses, switchboards and control panels, driver desks etc.

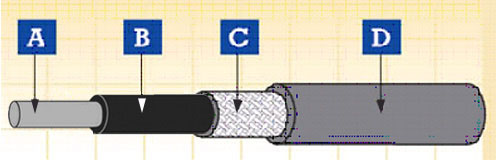

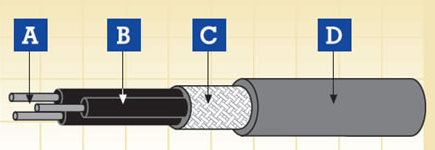

Construction :
Electrical & Mechanical Properties :
| Nominal Voltage | 300/500 V |
|---|---|
| Maximum Conductor Temperature | 90°C /105°C (fixed installation) |
| Minimum Permissible Ambient Temperature | -25/-40°C (fixed installation) |
| Bending Radius | 10 x Overall Diameter |
Chemical & Environmental Properties :
| EN 60684-2 | No fluorine |
|---|---|
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
Fire Performance for rolling stock application :
| EN 50306-2 | Hazard levels HL1, HL2/HL3, HL4 |
|---|---|
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | F0 |
| EN45545-2 | R15 Interior/ R16 Exterior HL1, HL2, HL3 |
Fire Performance in General :
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
|---|---|
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 |
Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 |
Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R 16 |
FRL-TW-05S-OS 300/500 V
| Number of Cores and Nominal Cross Section |
Minimum Thickness of Sheath at any Point |
Overall Diameter | Weight | |
|---|---|---|---|---|
| min. | max. | |||
| n x mm2 | mm | mm | mm | kg/km |
| 2 x 0.5 | 0.20 | 3.5 | 4.3 | 28 |
| 3 x 0.5 | 0.20 | 3.7 | 4.5 | 35 |
| 4 x 0.5 | 0.20 | 4.0 | 5.0 | 40 |
| 2 x 0.75 | 0.20 | 3.9 | 4.7 | 35 |
| 3 x 0.75 | 0.20 | 4.0 | 5.0 | 40 |
| 4 x 0.75 | 0.20 | 4.5 | 5.5 | 60 |
| 2 x 1 | 0.20 | 4.2 | 5.2 | 40 |
| 3 x 1 | 0.20 | 4.5 | 5.5 | 55 |
| 4 x 1 | 0.20 | 5.0 | 6.0 | 70 |
| 2 x 1.5 | 0.20 | 5.1 | 6.1 | 60 |
| 3 x 1.5 | 0.20 | 5.4 | 6.4 | 80 |
| 4 x 1.5 | 0.20 | 6.0 | 7.0 | 100 |
| 2 x 2.5 | 0.20 | 6.4 | 7.4 | 90 |
| 3 x 2.5 | 0.20 | 6.8 | 7.8 | 120 |
| 4 x 2.5 | 0.20 | 7.5 | 8.5 | 140 |
 |
 |
 |
|
 |
 < |
| Impact Resistant | Highly Flexible | UV Resistant | Ozone Resistant | Abrasion Retardant | Cold- resistant |
|
 |
 |
|
 |
 |
| Resistance To Soldering Heat | Acid&Alkaline Resistant | IRM 903 Fuel Oil Resistant | IRM 902 Mineral Oil Resistant |
Fire Retardant NF C32-070-2.2(C2) IEC60332-3-24/EN50266-2-4 |
Flame Retardant NF C32-070-2.1(C1) IEC60332-1-2/EN50265-2-1 |
 |
|
|
 |
||
| Low Toxicity NF X70-100/NF F63 808 TM1-04/BS 6853 |
Low Corrosivity IEC60754-2/EN50267-2-2/3 NF C32-074/VDE 0472-813 |
Low Smoke Emission IEC 61034-2 / EN 50268-2 NF C32-073/VDE 0472-816 |
Zero Halogen IEC 60754-1/EN 50267-2-1 NF C32-074//VDE 0472-815 |
