FIREROL Thin Wall Single Core Unsheathed Cables 300/500 V

EN 50306-2 (FRL-TW-05SU)

Application :

-Used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor.

-Used in cable harnesses, switchboards and control panels, driver desks etc.

Construction :

Conductor	Tinned annealed copper wires as defined in EN 50306-2
Insulation	LSZH special compound

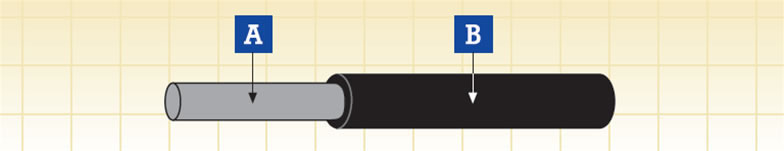

A. Conductor B. Insulation

Electrical & Mechanical Properties :

Nominal Voltage	300/500 V
Maximum Conductor Temperature	120°C /150°C (fixed installation)
Minimum Permissible Ambient Temperature	-25/-40°C (fixed installation)
Bending Radius	3 x Overall Diameter

Chemical & Environmental Properties :

EN 60684-2	No fluorine
EN 50305; EN 60811-2-1	Resistance to mineral oil & fuel oil, acid & alkali
EN 50305	Resistance to ozone

Fire Performance for rolling stock application :

EN 50306-2	Hazard levels HL1, HL2/HL3, HL4
DIN 5510-2	Protection level 1/2/3/4
BS 6853	Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101	F0
EN45545-2	R15 Interior/ R16 Exterior HL1, HL2, HL3

Fire Performance in General :

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815	Halogen Free
EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853	Low Toxicity
NF F 63 808; BS6853; NF F 16 101	Smoke index
EN45545-2	Requirement for fire behavior of materials & components R15/R 16

FRL-TW-05SU 300/500 V :

Nominal Cross-Sectiona Area	Number X Nominal Diameter of Wire	Diameter		Min. Mean Thickness of Insulation	Overall Diameter		Weight	Conductor Resistance
		min	max		min	max		20℃
mm2	n X mm	mm	mm	mm	mm	mm	kg/km	Ω/km
0.5	19 x 0.18	0.80	0.95	0.18	1.15	1.45	7	40.1
0.75	37 x 0.16(a)	1.00	1.15	0.18	1.35	1.65	8	26.7
1.0	37 x 0.18(a)	1.10	1.30	0.18	1.45	1.80	10	20.0
1.5	37 x 0.23(a)	1.45	1.65	0.22	1.95	2.30	20	13.7
2.5	37 x 0.30(a)	1.85	2.15	0.28	2.50	2.85	25	8.21

(a) =This cable may be supplied in 19 strand conductor providing all product performance requirements in the specification are met.

					<
Impact Resistant	Highly Flexible	UV Resistant	Ozone Resistant	Abrasion Retardant	Cold- resistant
Resistance To Soldering Heat	Acid&Alkaline Resistant	IRM 903 Fuel Oil Resistant	IRM 902 Mineral Oil Resistant	Fire Retardant NF C32-070-2.2(C2) IEC60332-3-24/EN50266-2-4	Flame Retardant NF C32-070-2.1(C1) IEC60332-1-2/EN50265-2-1
Low Toxicity NF X70-100/NF F63 808 TM1-04/BS 6853	Low Corrosivity IEC60754-2/EN50267-2-2/3 NF C32-074/VDE 0472-813	Low Smoke Emission IEC 61034-2 / EN 50268-2 NF C32-073/VDE 0472-816	Zero Halogen IEC 60754-1/EN 50267-2-1 NF C32-074//VDE 0472-815
