FIREROL Thin Wall Multipair Individually Screened & Sheathed Cables, Overall Screened with Standard Wall sheath 300/500V

EN 50306-4 (FRL-TW-05MP-SW-IOS)

Application :

• -Used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor.
• -Used in cable harnesses, switchboards and control panels, driver desks etc.

Construction :

Conductor	Tinned annealed copper wires as defined in EN 50306-2
Insulation	LSZH special compound
Overal screen	Tinned annealed copper wires
Pair screen	Individual screened and sheathed. Screened according to EN 50306-3; Sheathed according to EN 50306-3 (S1. S2)
Pair Identification	Pairs numbered according to EN 50306-4
Outer sheath	LSZH special compound (S2. EM 101 - EM 104)

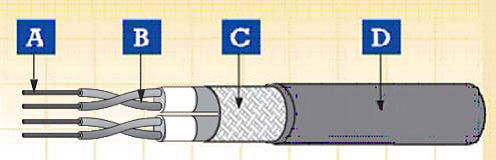

A. Conductor   B. Insulation   C. Screen   D. Sheath

Electrical & Mechanical Properties :

Nominal Voltage	300/500 V
Maximum Conductor Temperature	90°C /105°C (fixed installation)
Minimum Permissible Ambient Temperature	-25/-40°C (fixed installation)
Bending Radius	10 x Overall Diameter

Chemical & Environmental Properties :

EN 60684-2	No fluorine
EN 50305; EN 60811-2-1	Resistance to mineral oil & fuel oil, acid & alkali
EN 50305	Resistance to ozone

Fire Performance for rolling stock application :

EN 50306-2	Hazard levels HL1, HL2/HL3, HL4
DIN 5510-2	Protection level 1/2/3/4
BS 6853	Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101	F0
EN45545-2	R15 Interior/ R16 Exterior HL1, HL2, HL3

Fire Performance in General :

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815	Halogen Free
EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853	Low Toxicity
NF F 63 808; BS6853; NF F 16 101	Smoke index
EN45545-2	Requirement for fire behavior of materials & components R15/R 16

FRL-TW-05MP-SW-IOS 300/500 V :

Number of Cores and Nominal Cross Section	Minimum Thickness of Sheath at any Point	Overall Diameter		Weight
		min.	max.
n x mm2	mm	mm	mm	kg/km
2 x 2 x 0.5	0.56	9.0	10.2	90
3 x 2 x 0.5	0.56	9.6	10.8	120
4 x 2 x 0.5	0.56	10.7	11.9	160
7 x 2 x 0.5	0.56	13.0	14.2	240
2 x 2 x 0.75	0.56	9.8	11.0	90
3 x 2 x 0.75	0.56	10.5	11.7	150
4 x 2 x 0.75	0.56	11.6	12.8	180
7 x 2 x 0.75	0.56	14.0	15.6	290
2 x 2 x 1.0	0.56	10.2	11.6	110
3 x 2 x 1.0	0.56	10.9	12.1	160
4 x 2 x 1.0	0.56	12.1	13.3	200
7 x 2 x 1.0	0.56	14.6	16.2	330
2 x 2 x 1.5	0.56	12.2	13.4	150
3 x 2 x 1.5	0.56	13.1	14.3	230
4 x 2 x 1.5	0.56	14.3	15.9	290
7 x 2 x 1.5	0.56	17.6	19.2	490

					<
Impact Resistant	Highly Flexible	UV Resistant	Ozone Resistant	Abrasion Retardant	Cold- resistant
Resistance To Soldering Heat	Acid&Alkaline Resistant	IRM 903 Fuel Oil Resistant	IRM 902 Mineral Oil Resistant	Fire Retardant NF C32-070-2.2(C2) IEC60332-3-24/EN50266-2-4	Flame Retardant NF C32-070-2.1(C1) IEC60332-1-2/EN50265-2-1
Low Toxicity NF X70-100/NF F63 808 TM1-04/BS 6853	Low Corrosivity IEC60754-2/EN50267-2-2/3 NF C32-074/VDE 0472-813	Low Smoke Emission IEC 61034-2 / EN 50268-2 NF C32-073/VDE 0472-816	Zero Halogen IEC 60754-1/EN 50267-2-1 NF C32-074//VDE 0472-815
