BS 6231 Instrumentation & Control Cables

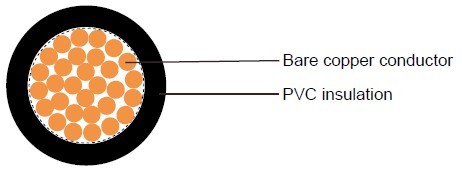

bs6231 instrumenatation_control cables

Application

BS 6231 instrumenatation & control cables are suitable for internal wiring of appliances and switch, control, metering and instrument panels of switchgear, etc

Construction

Standards BS 6231, UL 83, CSA C22.2, UL Flame test UL 1581/VW1 FT1 FT2
Conductor plain annealed
Insulation Flexible PVC
Temperature Range 0??-105??
Voltage rating 0.6 / 1kV
Min. Ben ding radius 3 x Overall diameter

Colour Code

Insulation colours 0.5mm2 to 25 mm2 Red, black, white, grey, brown, orange, yellow, blue, green, and green/yellow
35mm2 to 120 mm2 Red, black and green/yellow.
  Other colours available on request.

Relevant Standards

To BS6231, UL Style 1015, 1028, 1283, 1284; CSA TEW 105 ??C; UL VW -1 Vertical Flame Test

Current Ratings

The table below lists the full Thermal current ratings which will raise the Conductor temperature to 85 ??C when one cable is installed in free air at an Ambient temperature of 45 ??C. These ratings are applicable for installations which ensure that the operation of the protective device is not greater than 1.45 times the continuous current carrying capacity of the cable.

Where protection is by means of semi-enclosed fuses to BS 3036 the rating must be multiplied by a factor of 0.76.

Note:Sizes 150.0mm2, 185.0mm2 and 240.0mm2, 300.0mm2 & 400mm2 are classed as dual Rated and are manufactured to UL & BS 6231 only.

Construction Parameters

Size Stranding AWG ULNumber

Insulation

Thickness

Overall Diameter

Weight
mm2 mm AWG No. mm mm kg/km
0.5 16/0.20 22 1015 0.8 2.6 12
0.75 24/0.20 20 1015 0.8 2.8 15
1 32/0.20 18 1015 0.8 3 18
1.5 30/0.25 16 1015 0.9 3.3 23
2.5 50/0.25 14 1015 1.0 3.7 34
4 56/0.30 12 1015 1.0 4.4 50
6 84/0.30 10 1015 1.3 5.1 71
10 80/0.40 8 1028 1.5 6.9 123
16 126/0.40 6 1283 1.5 8.6 209
25 196/0.40 4 1283 1.6 10.5 296
35 276/0.40 2 1283 2.0 11.9 400
50 396/0.40 1 1284 2.0 14.4 582
70 360/0.50 2/0 1284 2.0 16.7 796
95 475/0.50 3/0 1284 2.3 19 1025
120 608/0.50 4/0 1284 2.4 20.5 1282
150 756/0.50 MCM300 104 2.4 23.14 1627
185 925/0.50 MCM350 104 2.4 25.4 1959
240 1221/0.50 MCM500 104 2.8 28.66 2254
300 1525/0.50 MCM600 1015 -

31.5 3157
400 2013/0.50 MCM800 1284 -

36 4051
